Brake pressure sensor: Notes

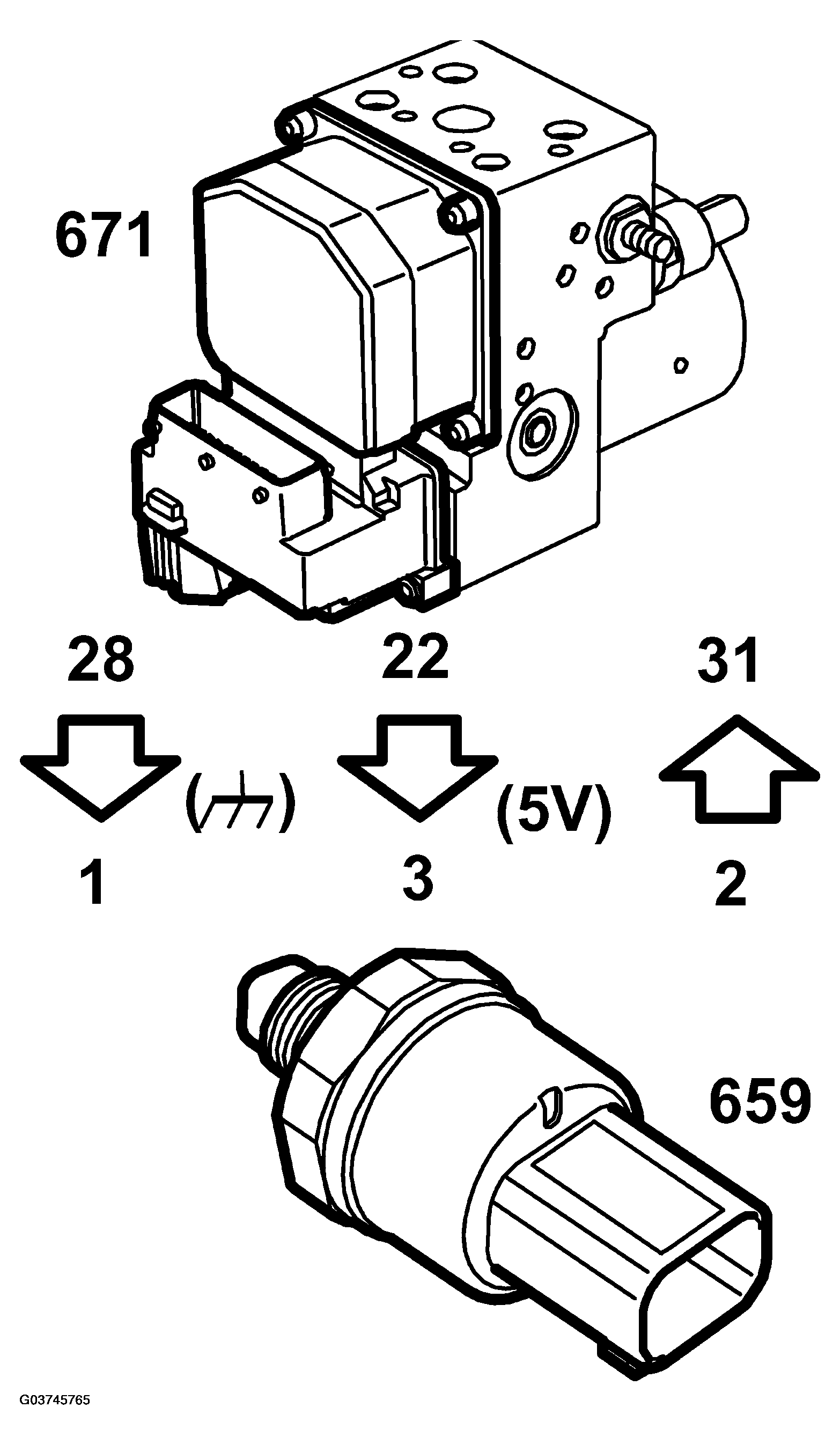

A pressure sensor in the hydraulic unit monitors the incoming brake pressure from the master cylinder in the primary brake circuit. The pressure sensor sends a voltage to the control module that is proportional to the pressure produced when the driver depresses the brake pedal.
The pressure sensor consists of a membrane and a piezoelectric crystal.

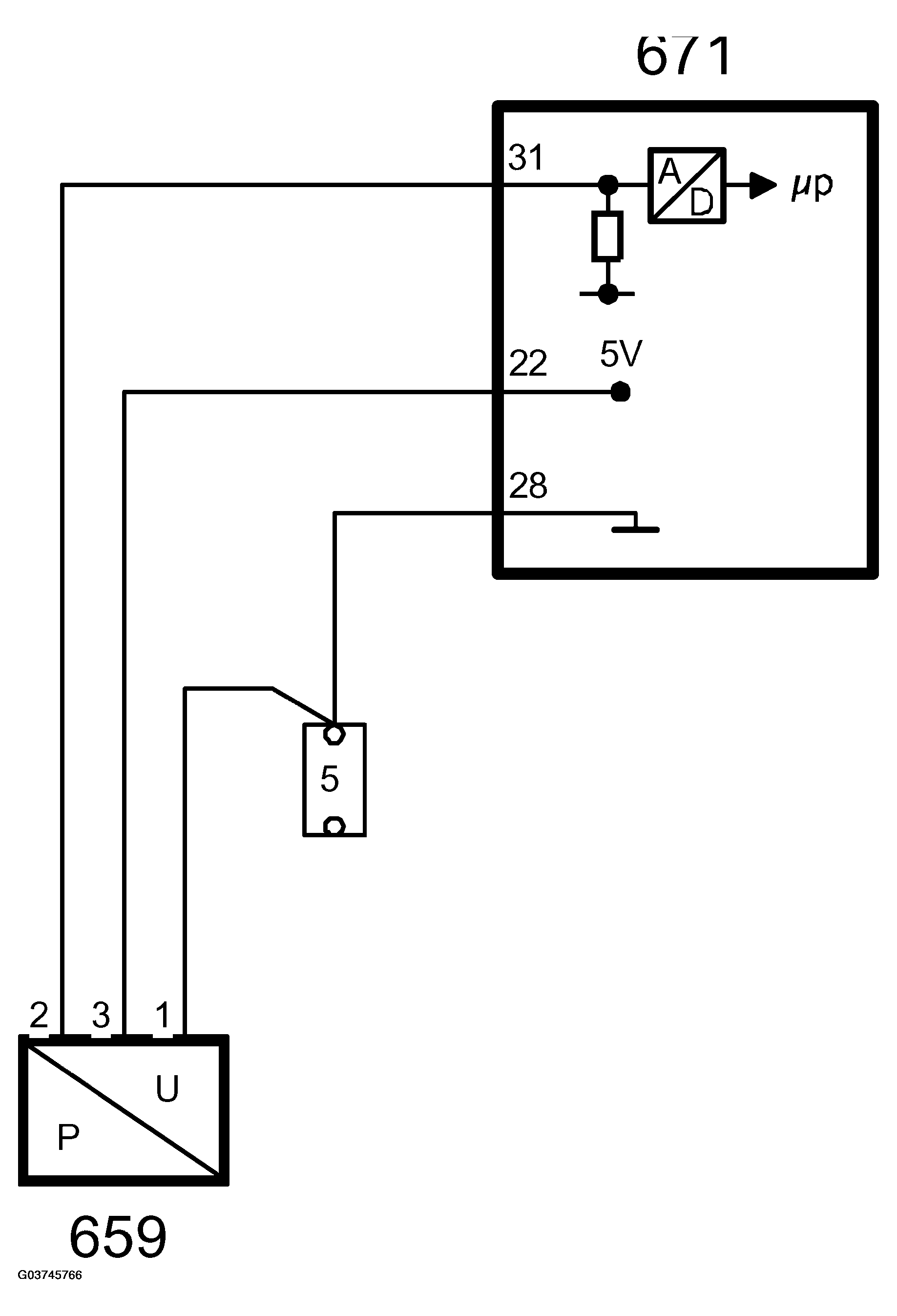

PIN TEST READING DESCRIPTION
| Pin | Test reading | Description |
|---|---|---|
| 1 | System ground | |
| 2 | 0-5 V, equivalent to 0-250 bar | Output signal |
| 3 | +5 V | Power supply from control module |
