General data

LUBRICATING SYSTEM GENERAL DATA

Oil volume, incl. filter	with oil cooler	5.4L
	when servicing	4.0L
Difference in volume, maximum		1.0L
Grade of oil		See owner's manual.
Viscosity		See owner's manual.

IMPORTANT: The recommended grades of oil contain all necessary additives and the use of additional additives should therefore be avoided.

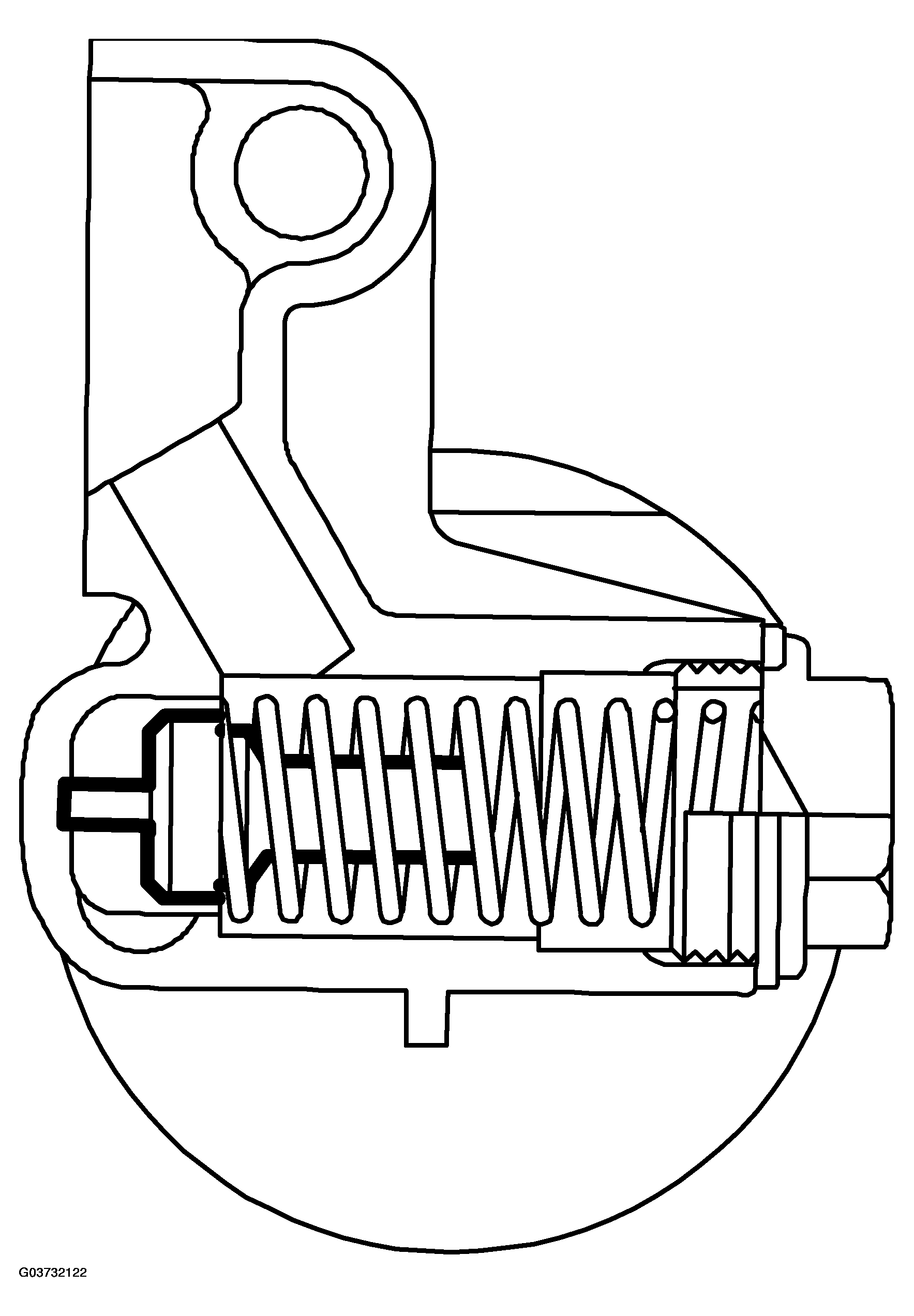

Fig 1: Identifying Oil Pressure Valve

Courtesy of SAAB-SCANIA OF AMERICA, INC.
