Home >> Saab >> 2004 >> 9-5 Linear, Automatic >> Repair and Diagnosis >> Engine Performance >> Fuel Delivery >> Fuel System >> Technical data >> Fuel pump

Fuel pump

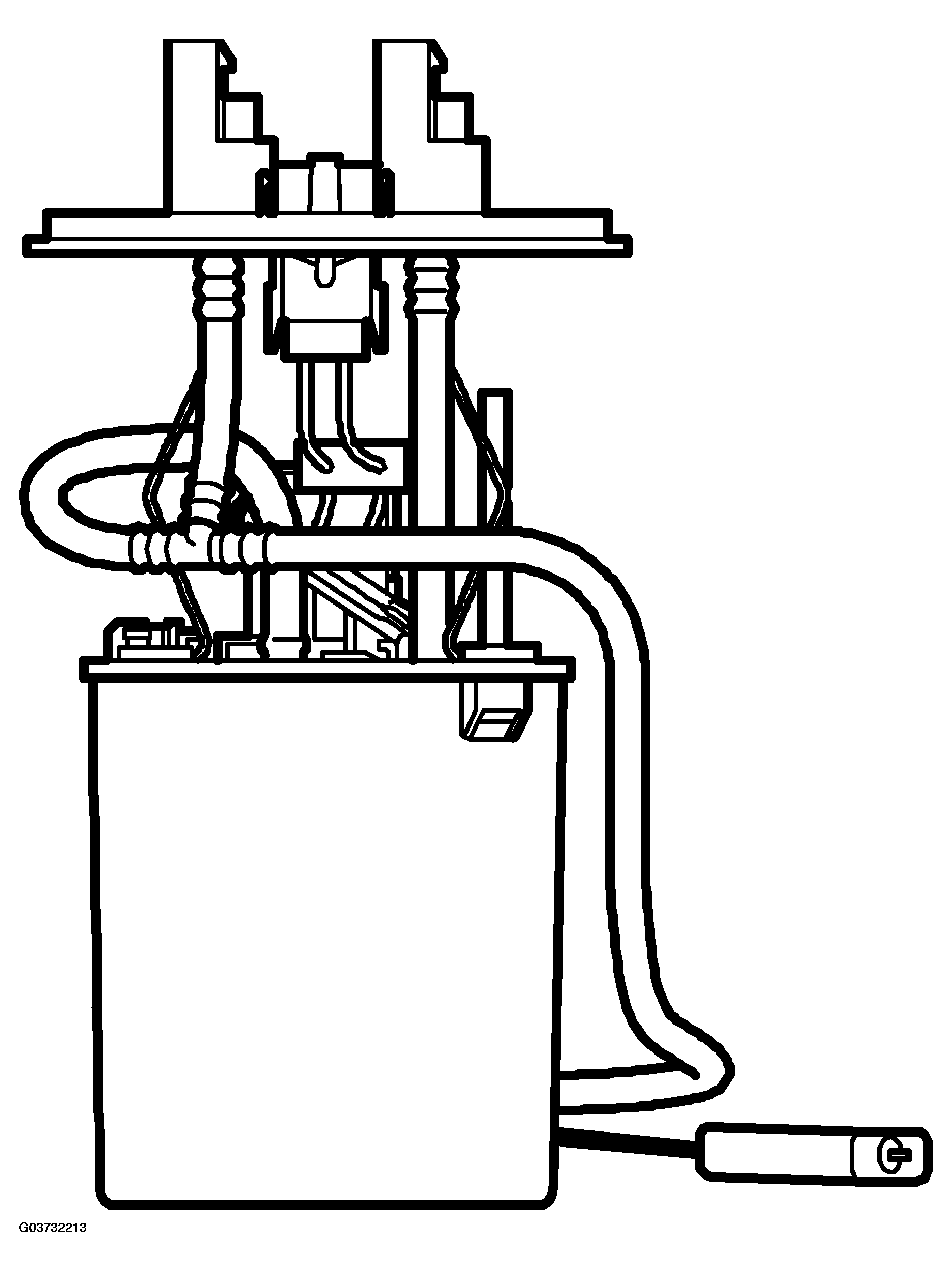

Fig 1: Identifying Fuel Pump
G03732213Courtesy of SAAB-SCANIA OF AMERICA, INC.
FUEL PUMP DESCRIPTION

Capacity at 3.0 bar backpressure l/30s min. 0.7
Resistance, fuel level sensor, full tank Ohm 425 +/- 6.5
Resistance, fuel level sensor, empty tank Ohm 50 +/- 1.5
