Injectors, flow capacity

4 cyl.

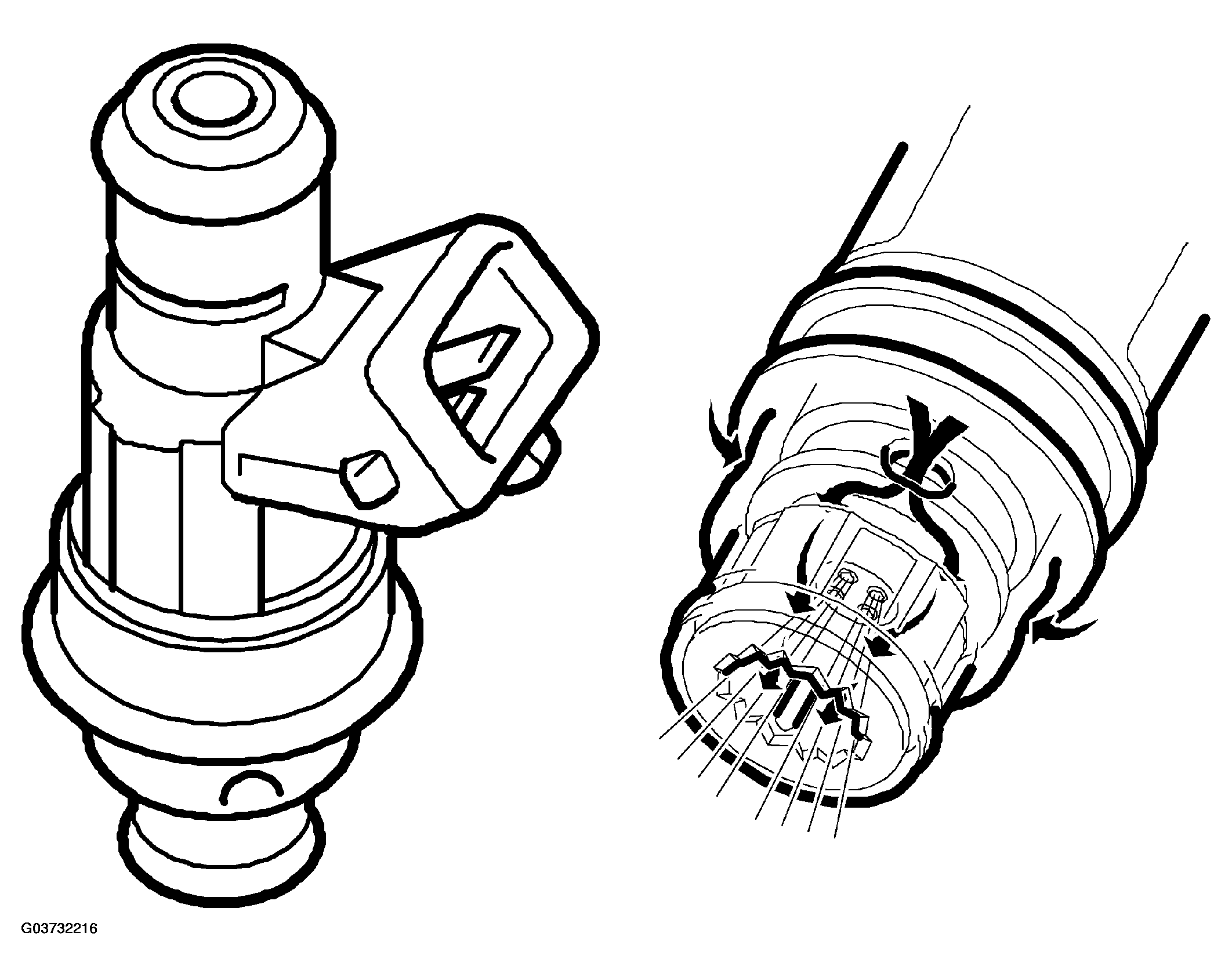

Fig 1: Identifying Injectors, Flow Capacity
G03732216Courtesy of SAAB-SCANIA OF AMERICA, INC.
INJECTORS DESCRIPTION

Flow capacity ml/30s 176 +/- 7
Maximum permissible difference between injectors. Ml 14
