Technical description: Components: Notes

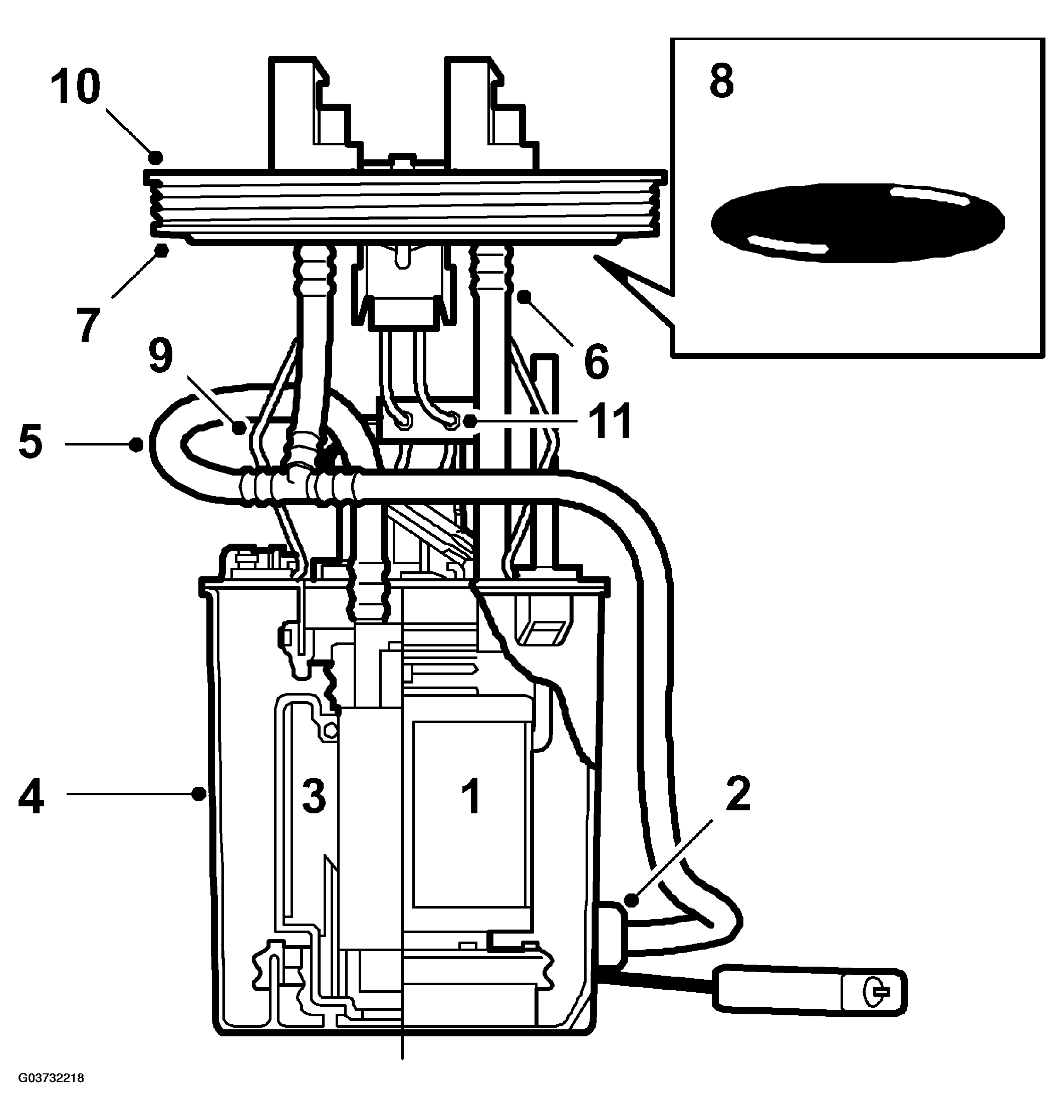

Fig 1: Identifying Fuel System Components

Courtesy of SAAB-SCANIA OF AMERICA, INC.

Fuel pump

1. Pump
2. Ejector
3. Filter
4. Reservoir
5. Pump delivery line
6. Return line
7. Pump cover
8. O-ring
9. Spring element
10. Screw ring
11. RFI filter
