Home >> Saab >> 2004 >> 9-5 Linear, Automatic >> Repair and Diagnosis >> Engine Performance >> TRIONIC T7 Fuel Control System >> Adjustment - Replacement >> EVAP pressure sensor >> To remove

To remove

  1. Remove the fuel tank, see ADJUSTMENT/REPLACEMENT , Fuel tank .
  2. Blow clean around the pressure sensor.

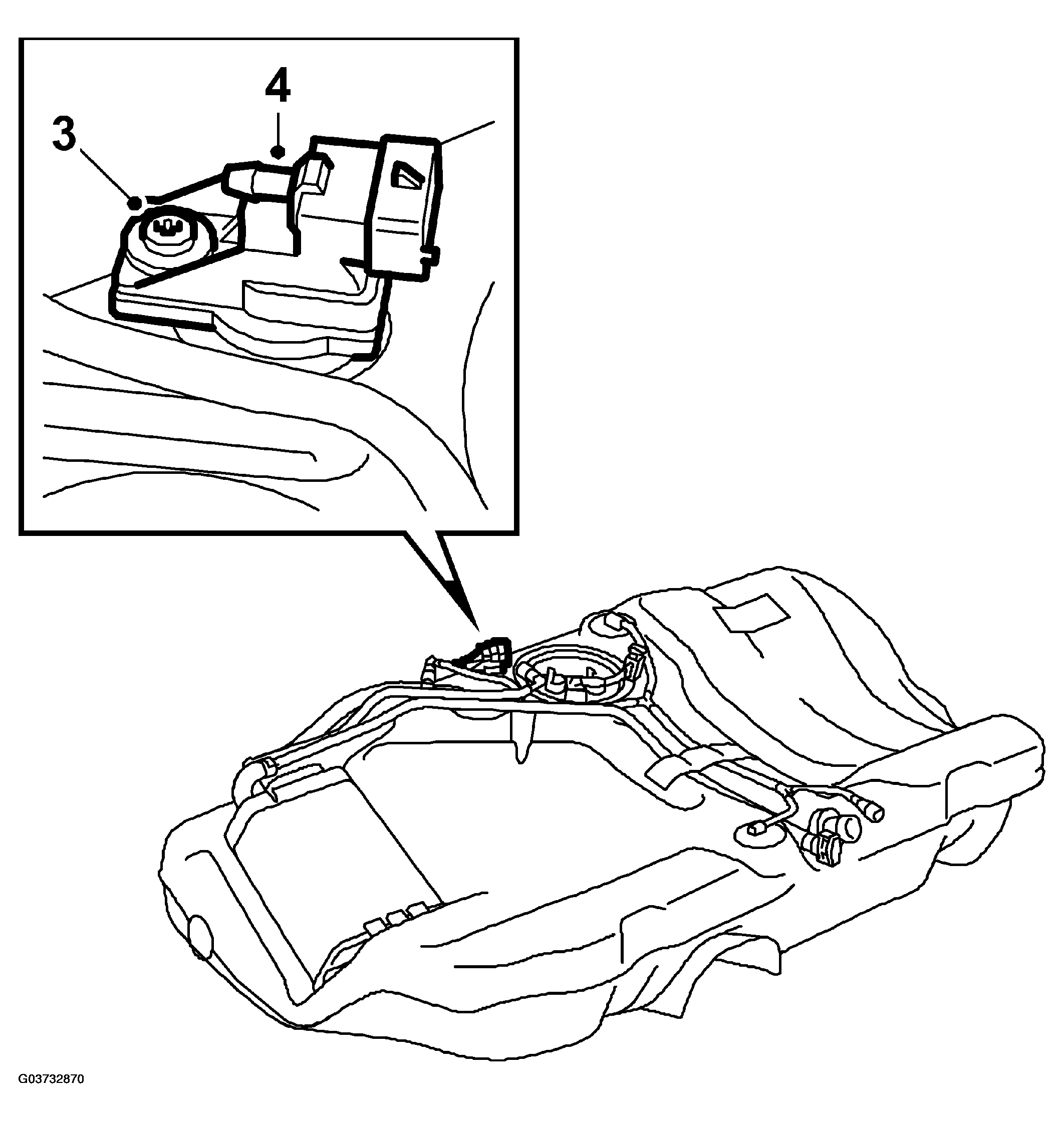

    Fig 1: Illustration For Steps 3 To 4
    G03732870Courtesy of SAAB-SCANIA OF AMERICA, INC.
  3. Undo the screw on the pressure sensor.
  4. Carefully remove the pressure sensor.
