Home >> Saab >> 2004 >> 9-5 Linear, Automatic >> Repair and Diagnosis >> Transmission >> Automatic Trans >> Automatic Transmission >> Adjustment/Replacement >> Changing control module, TCM >> Fitting

Changing control module, TCM: Fitting

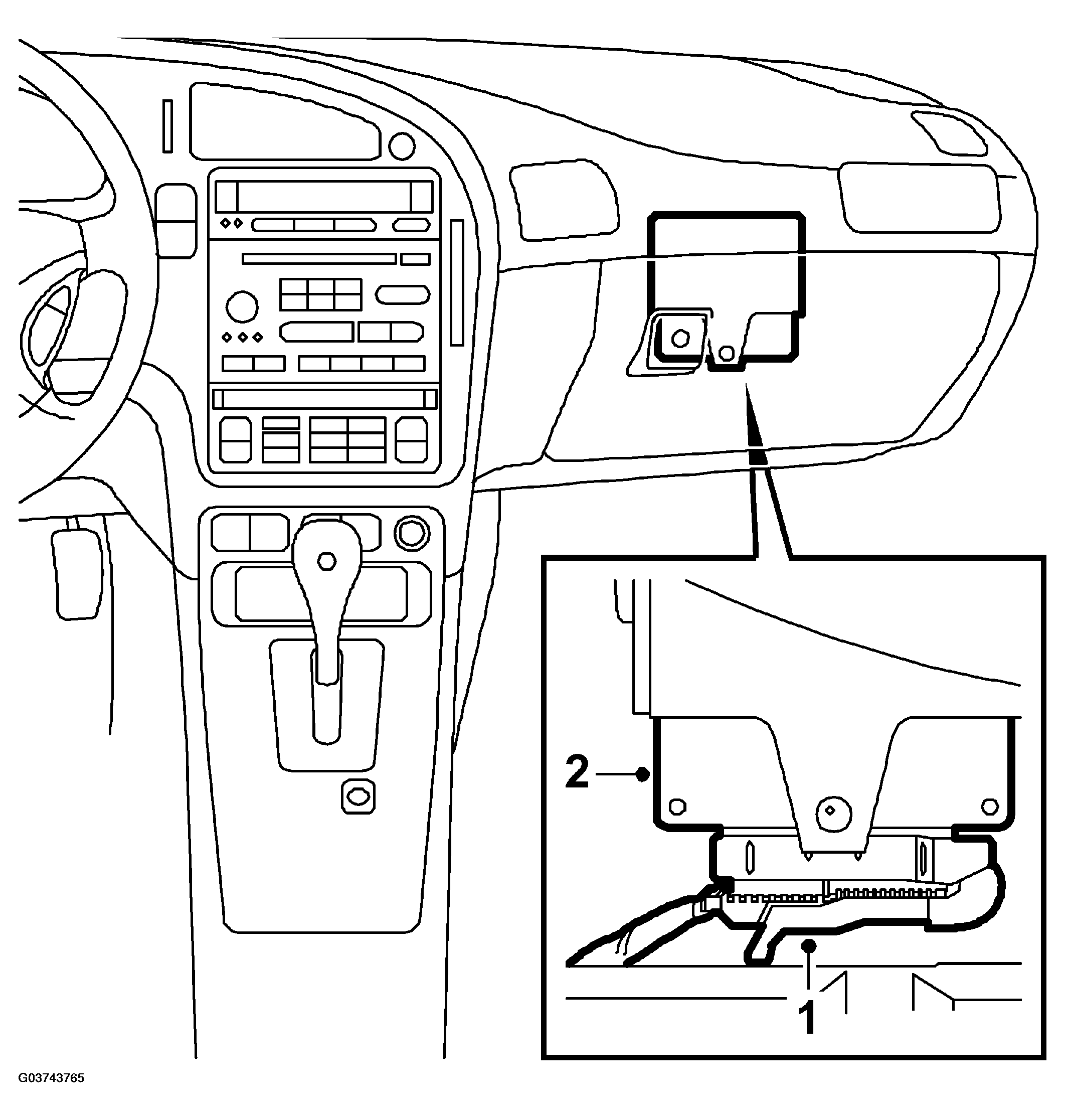

Fig 1: Illustration For Steps 1-2
G03743765Courtesy of SAAB-SCANIA OF AMERICA, INC.
  1. Plug the connector into the control module.
  2. Press the control module home so that the catches engage with it.
  3. Refit the lower dashboard section by the passenger seat.
  4. If a new control module has been fitted, perform SERVICE PROGRAMMING (SPS) OF TCM  .
  5. If a new control module has been fitted it must be adapted, see ADAPTATION, RESETTING
