To remove

  1. Remove the battery cover and the battery.

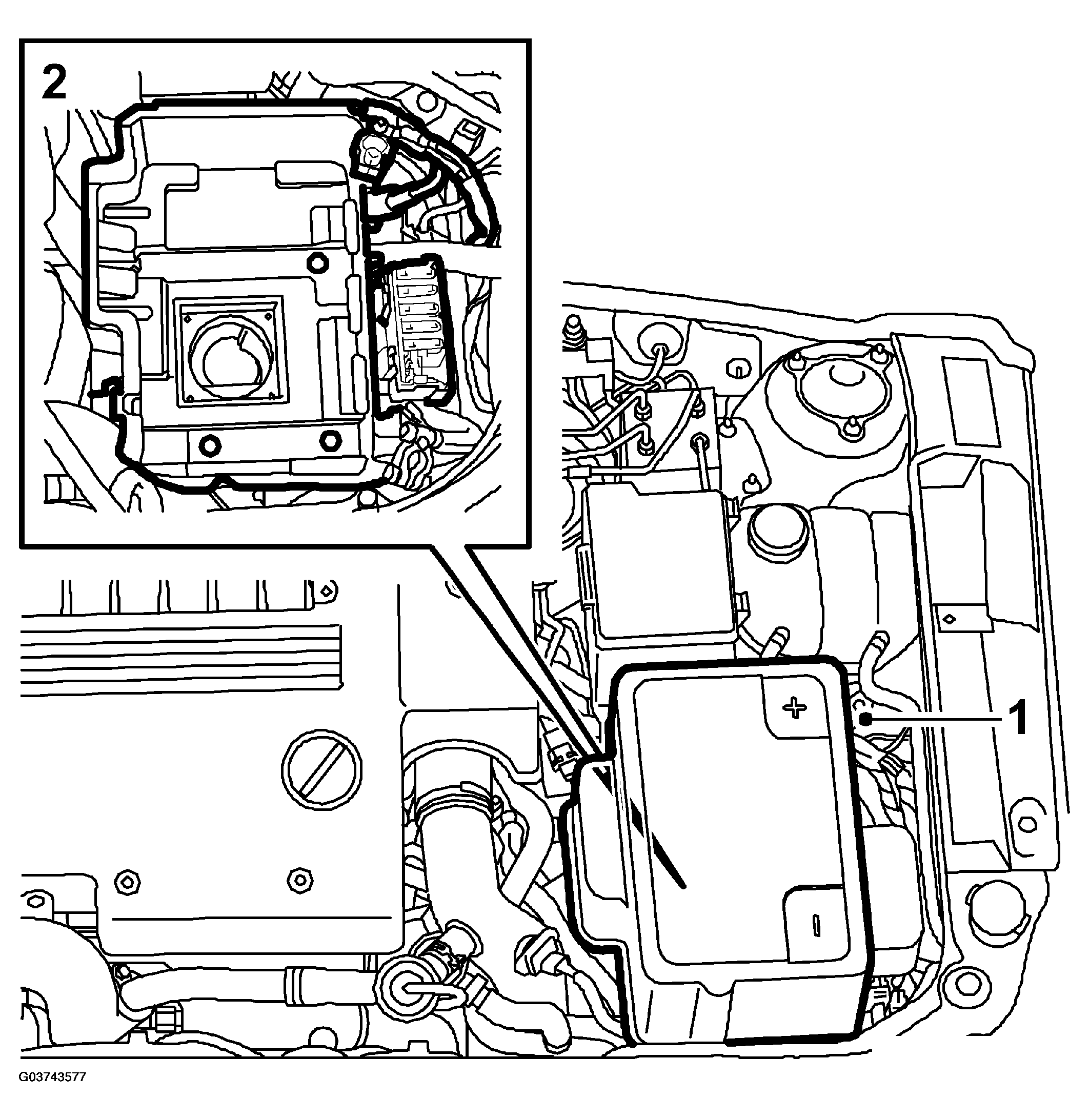

    Fig 1: Illustration For Steps 1-2
    G03743577Courtesy of SAAB-SCANIA OF AMERICA, INC.
  2. Remove the MAXI fuse board from the battery tray and place it to one side. Remove the battery tray.
  3. Clean round the place where the fluid filler pipe enters the transmission.

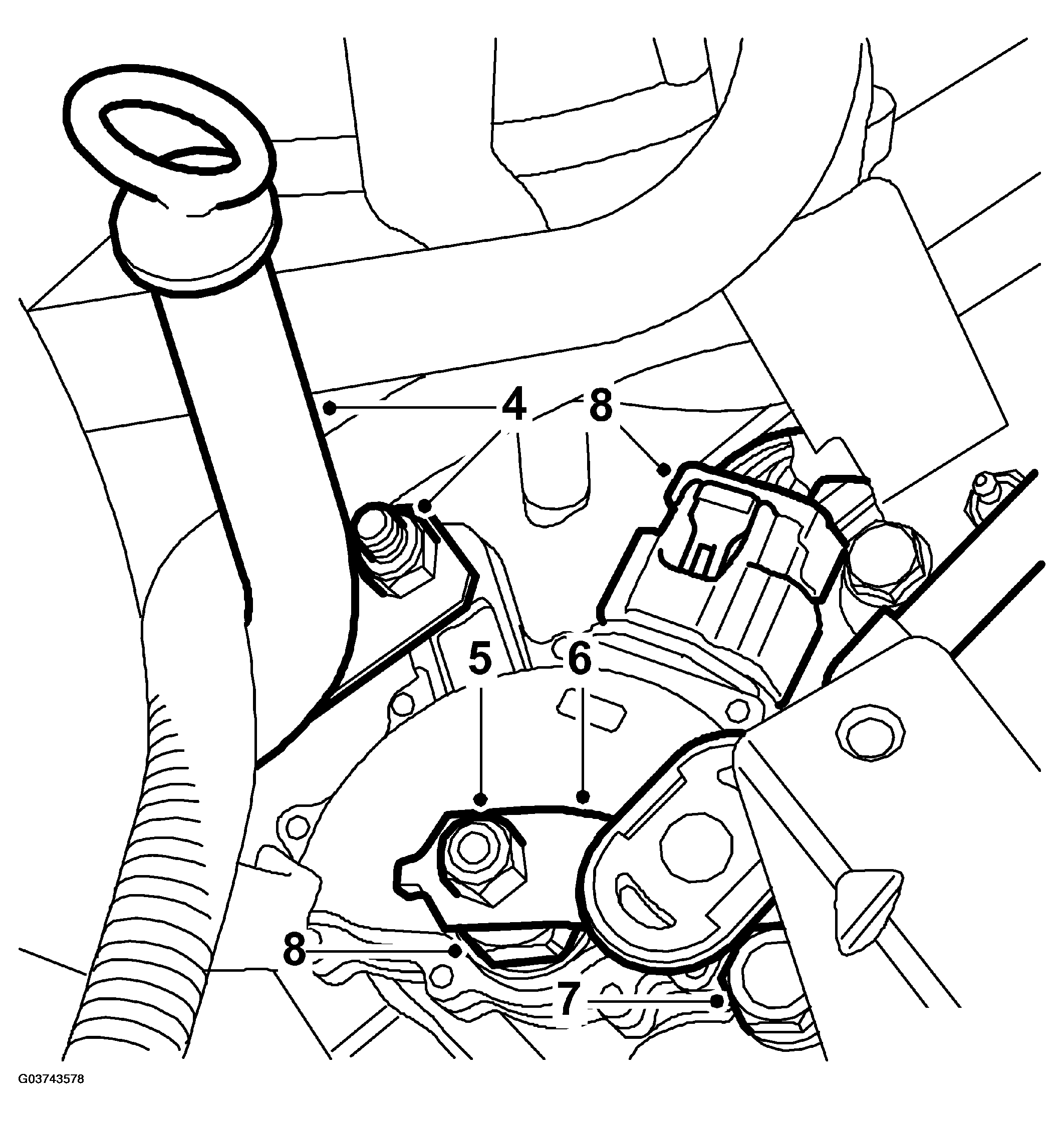

    Fig 2: Illustration For Steps 4-8
    G03743578Courtesy of SAAB-SCANIA OF AMERICA, INC.
  4. Remove the fluid filler pipe.
  5. Move the selector lever to position L and undo the nut on the lever.
  6. Remove the lever.
  7. Remove the gear selector position sensor's retaining bolts.
  8. Bend out the locking plate and remove the nut from the selector lever position sensor.
  9. Unplug the connector and lift the sensor off the shaft.
