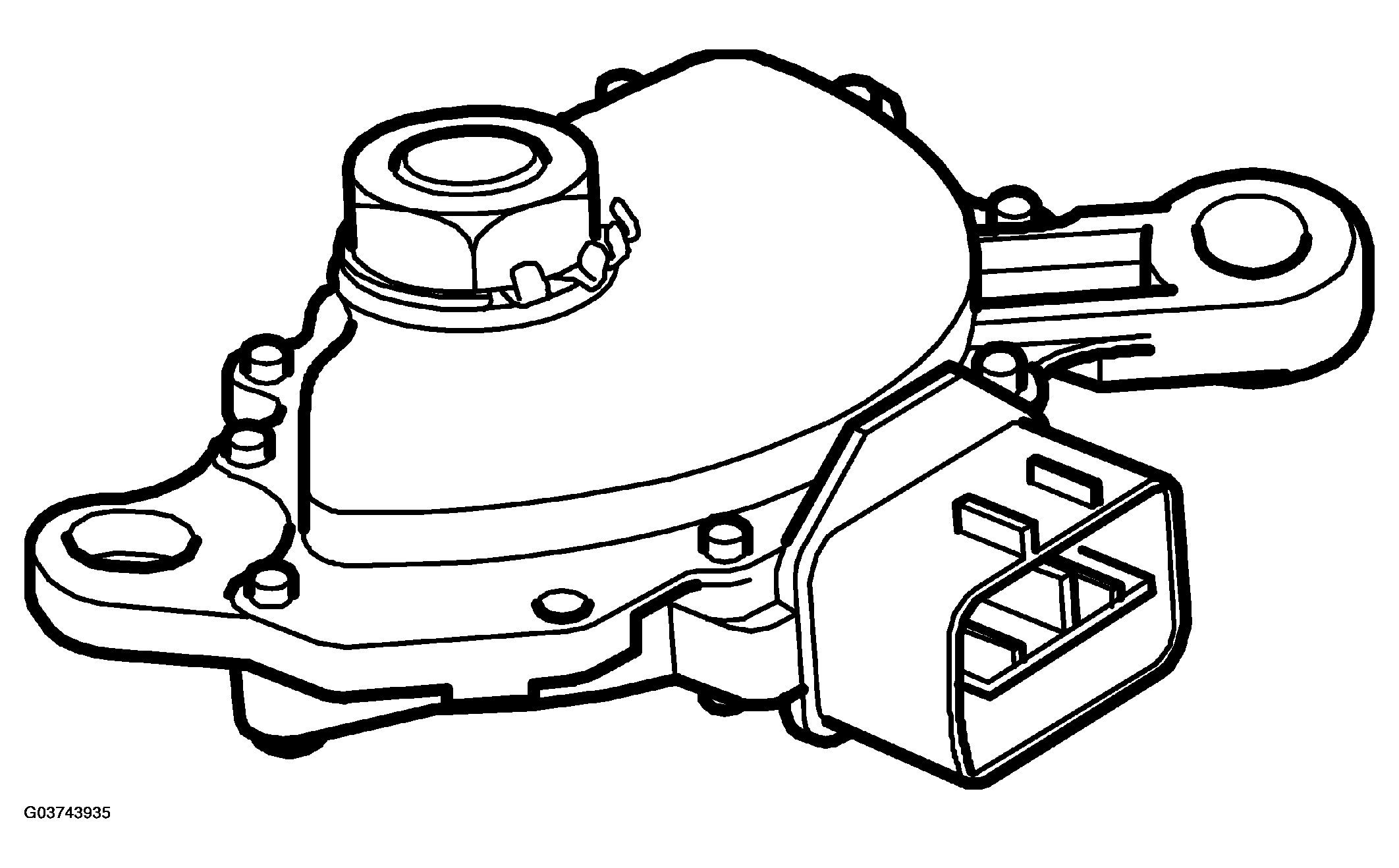

Gear selector position sensor
GEAR SELECTOR POSITION SENSOR LOCATION SPECIFICATION
| Location | On the transmission casing | |
|---|---|---|
| Fitting | Adjustment required for proper operation | |
| Type | Slip contacts | |
| Power supply (+15 circuit) | IG contact | |

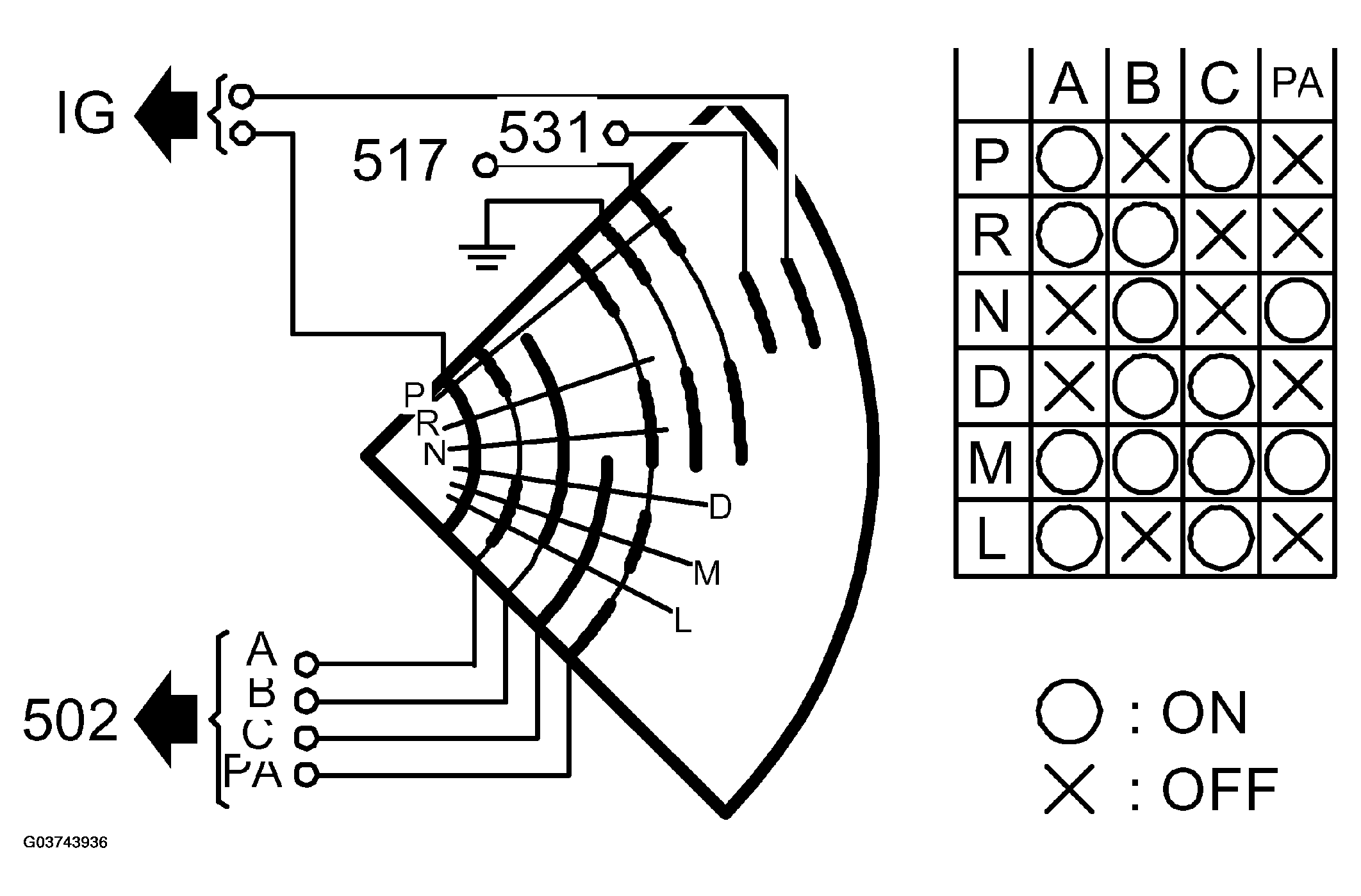

| Function | Selector lever position | A, B, C and PA contacts |
| Starter motor interlock | Contacts ST, M | |
| Reversing lights | Contacts E, D | |
| Resistance | Open contact | OL |
| Closed contact | < 5 Ohm |
