Control module inputs

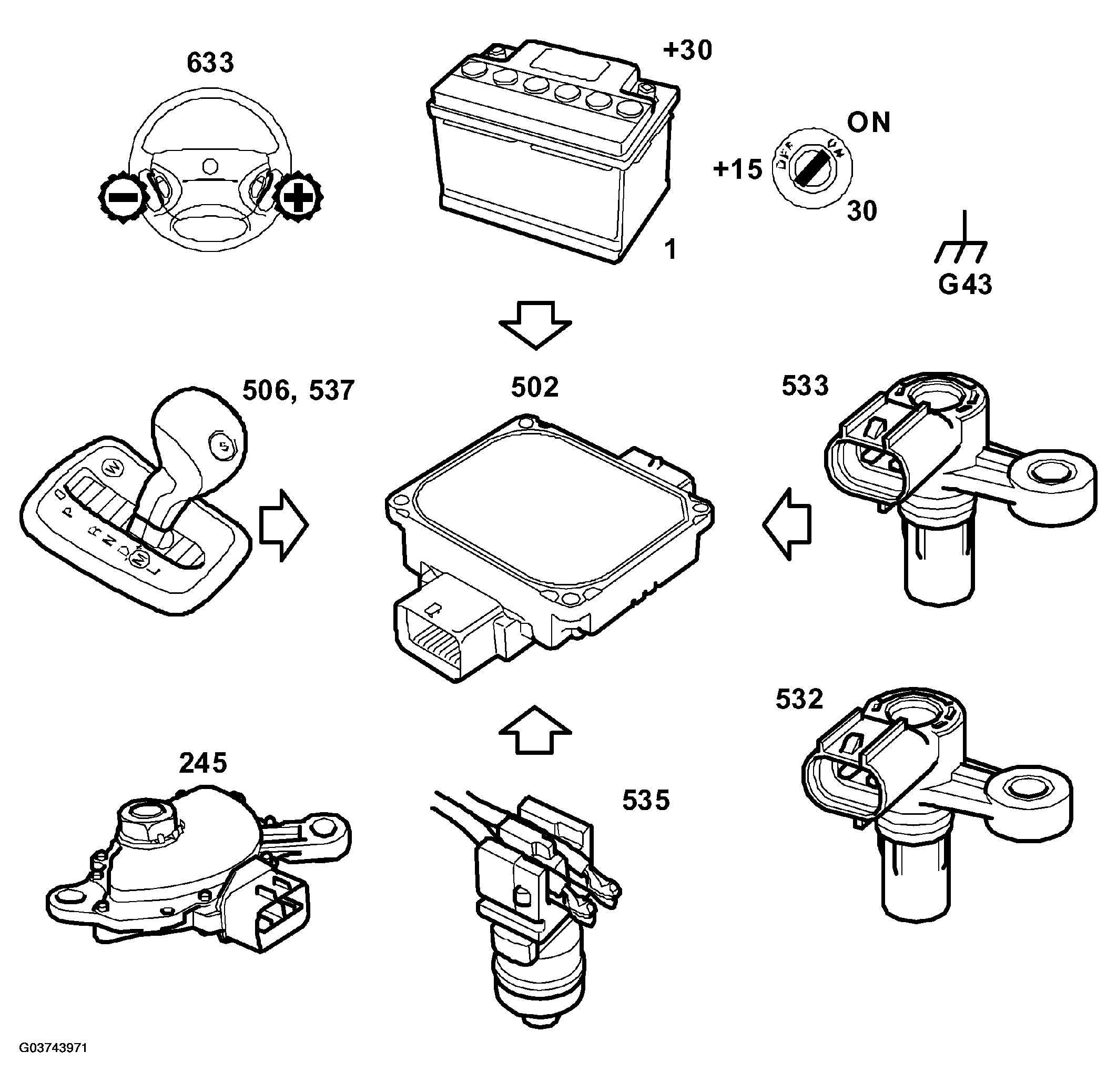

Fig 1: Identifying Control Module Communication Diagram (1 Of 2)

G03743971

Courtesy of SAAB-SCANIA OF AMERICA, INC.

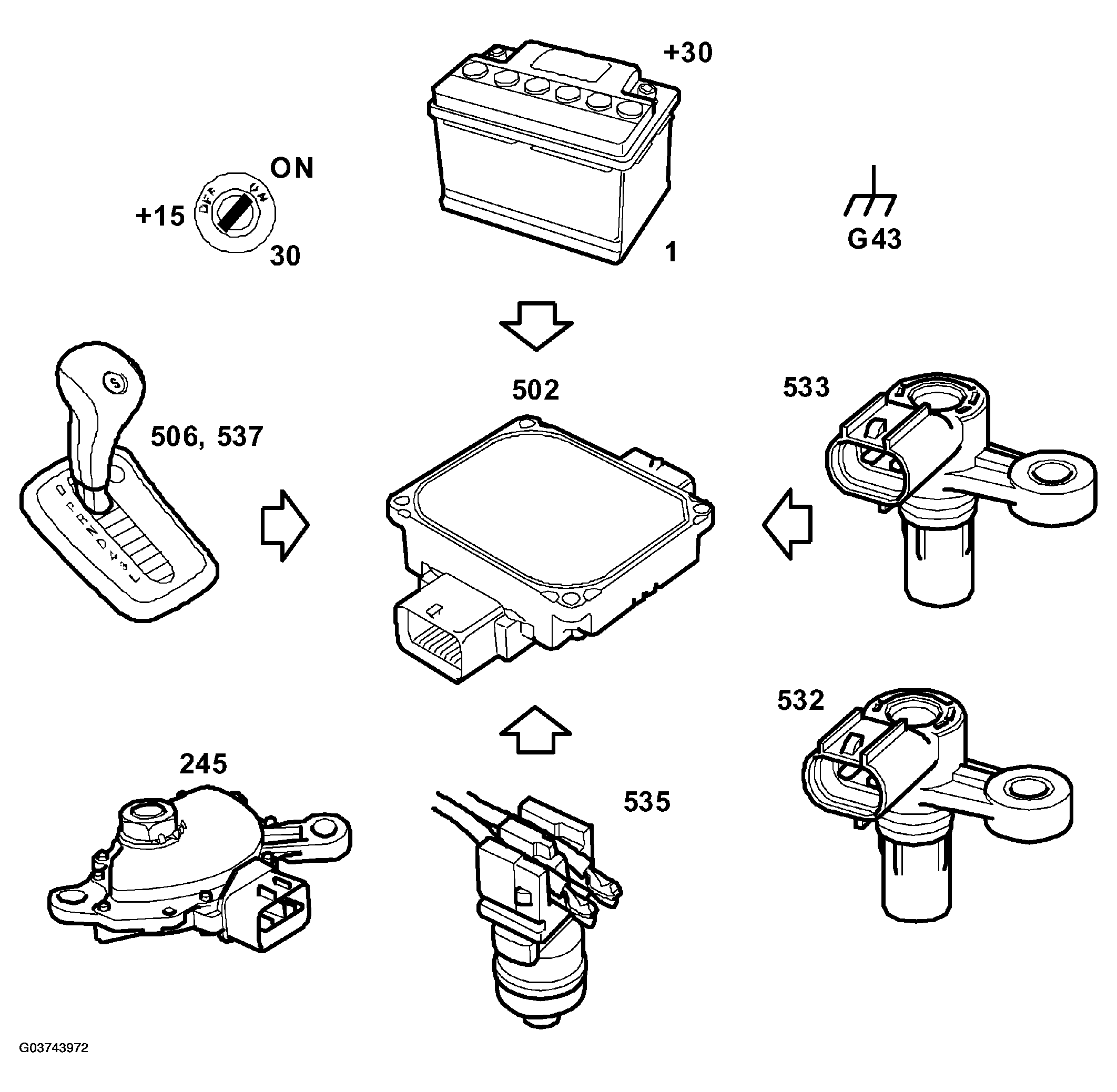

Fig 2: Identifying Control Module Communication Diagram (2 Of 2)

G03743972

Courtesy of SAAB-SCANIA OF AMERICA, INC.

Battery voltage +30 (A33).
Battery voltage +15 (A31, A22).
Ground (G43).
Speed sensor, input shaft (532).
Speed sensor, output shaft (533).
Temperature sensor, transmission fluid (535).
Gear selector position sensor (245).
Switch, SPORT (537).
Switch, WINTER (506).
Switch, up and down gear changing, pin 8 (A).
