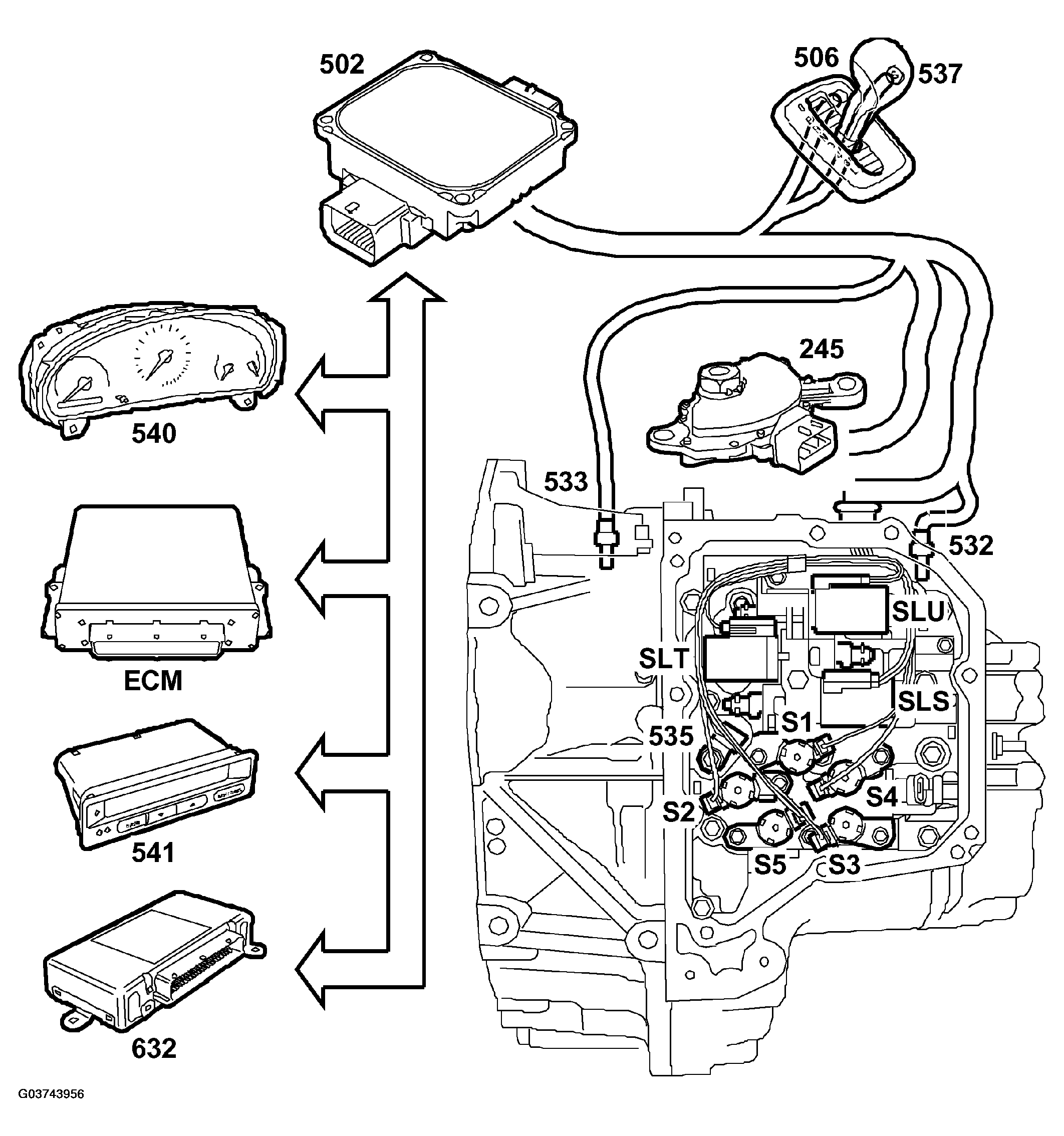

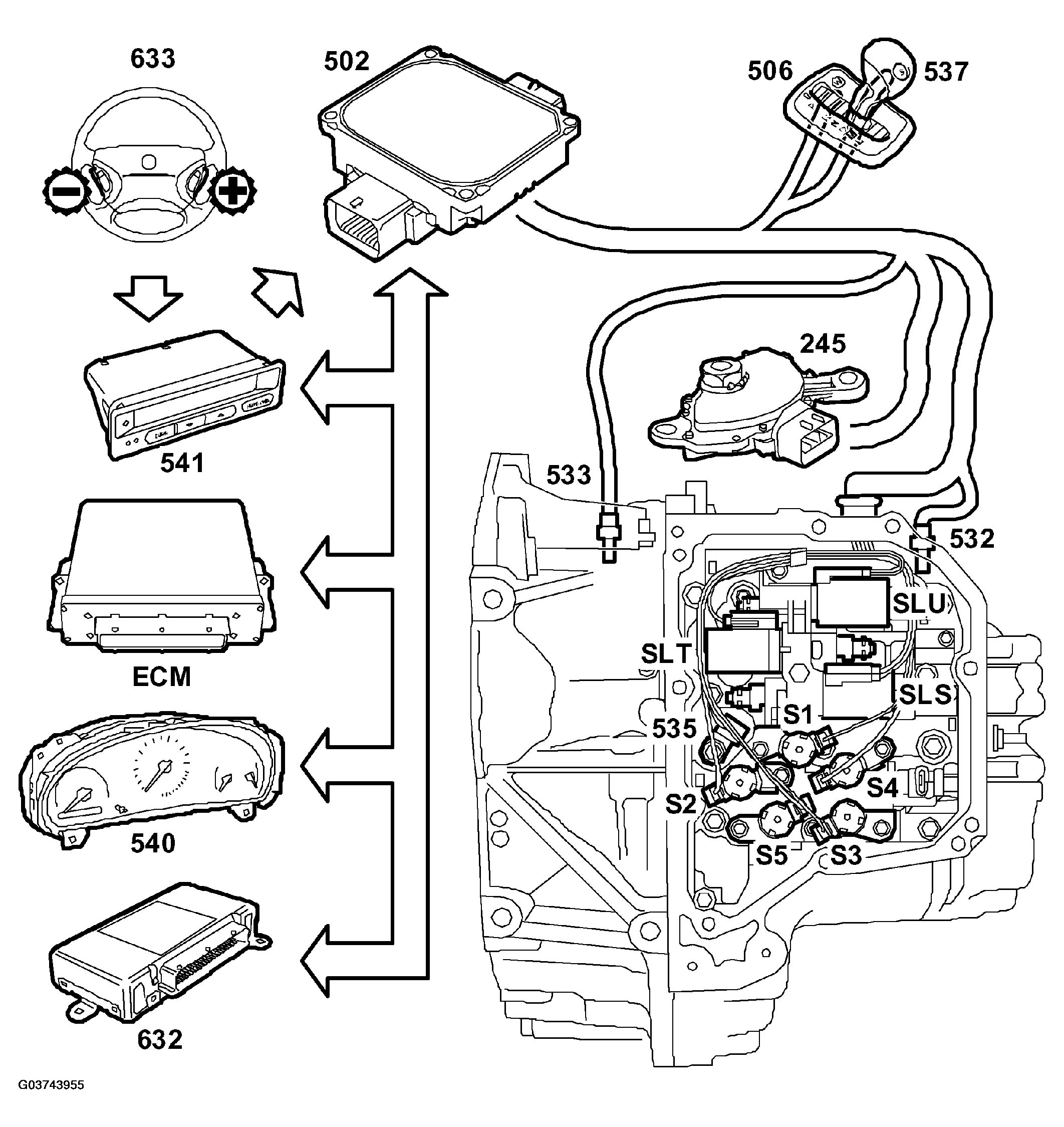

System overview
Courtesy of SAAB-SCANIA OF AMERICA, INC.
Courtesy of SAAB-SCANIA OF AMERICA, INC.
- Transmission range switch (245)
- Main instrument unit (540)
- Engine control module (655/589/595)
- SID (541)
- Control module, TCM (502)
- Switch, WINTER (506)
- Switch, SPORT (537)
- Output shaft speed sensor (533)
- Input shaft speed sensor (532)
- Transmission fluid temperature sensor (535)
- Control module, TWICE (632)
- Solenoid for Lock-up SLU (531)
- Solenoid for gear changing S1 (531)
- Solenoid for gear changing S2 (531)
- Solenoid for gear changing S3 (531)
- Solenoid for gear changing S4 (531)
- Solenoid for gear changing S5 (531)
- Solenoid for system pressure SLT (531)
- Solenoid for clutch pressure SLS (531)
- Buttons for manual gear selection (633)
