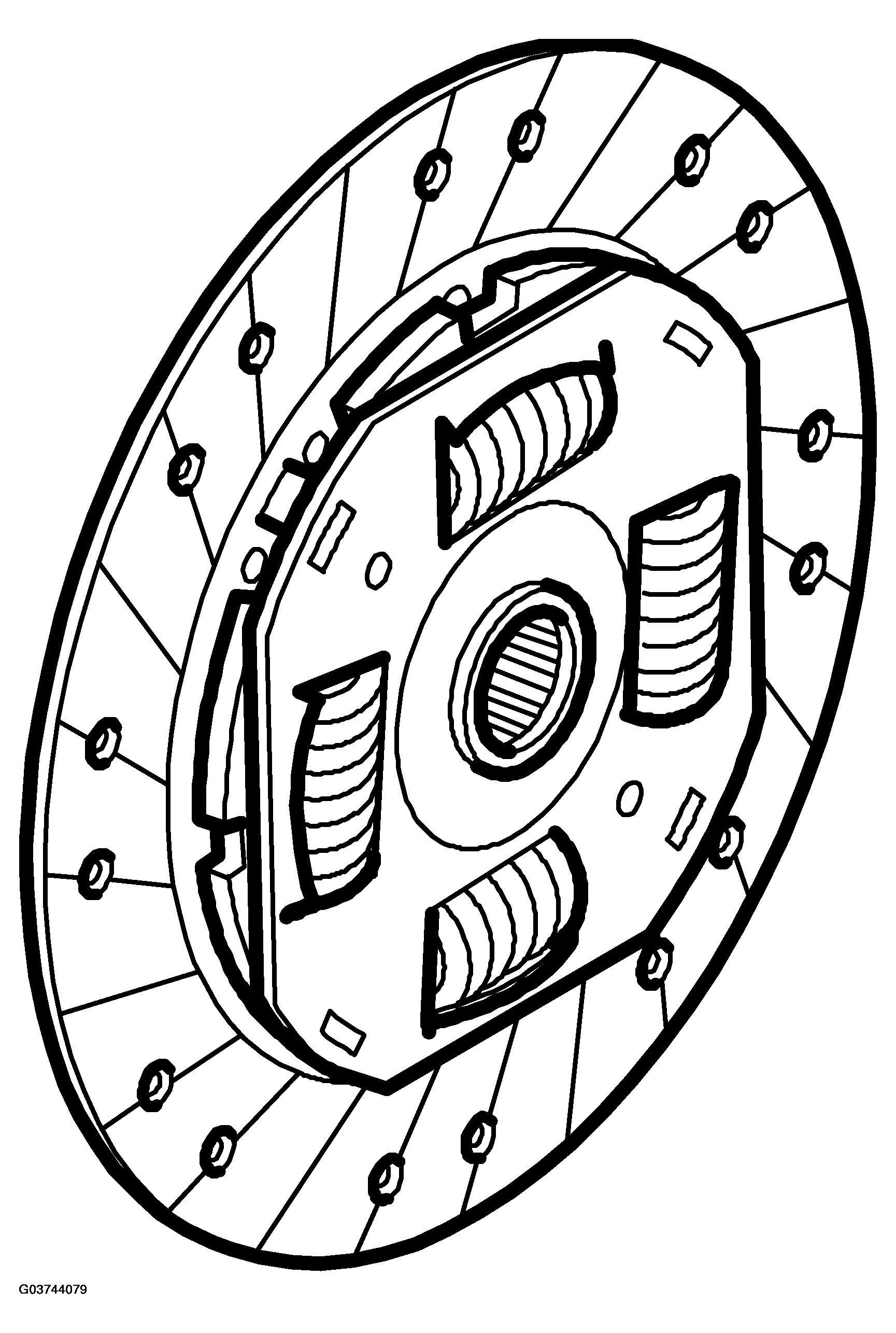

Driven plate
Courtesy of SAAB-SCANIA OF AMERICA, INC. DRIVEN PLATE TECHNICAL DATA
| Manufacturer |
Fichtel & Sachs |
| Type |
Single dry-plate clutch with diaphragm spring |
| Diameter |
228 mm |
| Diameter, 4-cyl. diesel |
240 mm |
| Lining thickness, new driven plate |
7,3 0,3 mm |
| Lining thickness, Min. |
5.5 mm |
