Circuit Protection Devices

CIRCUIT PROTECTION DEVICES LOCATION

Component Location

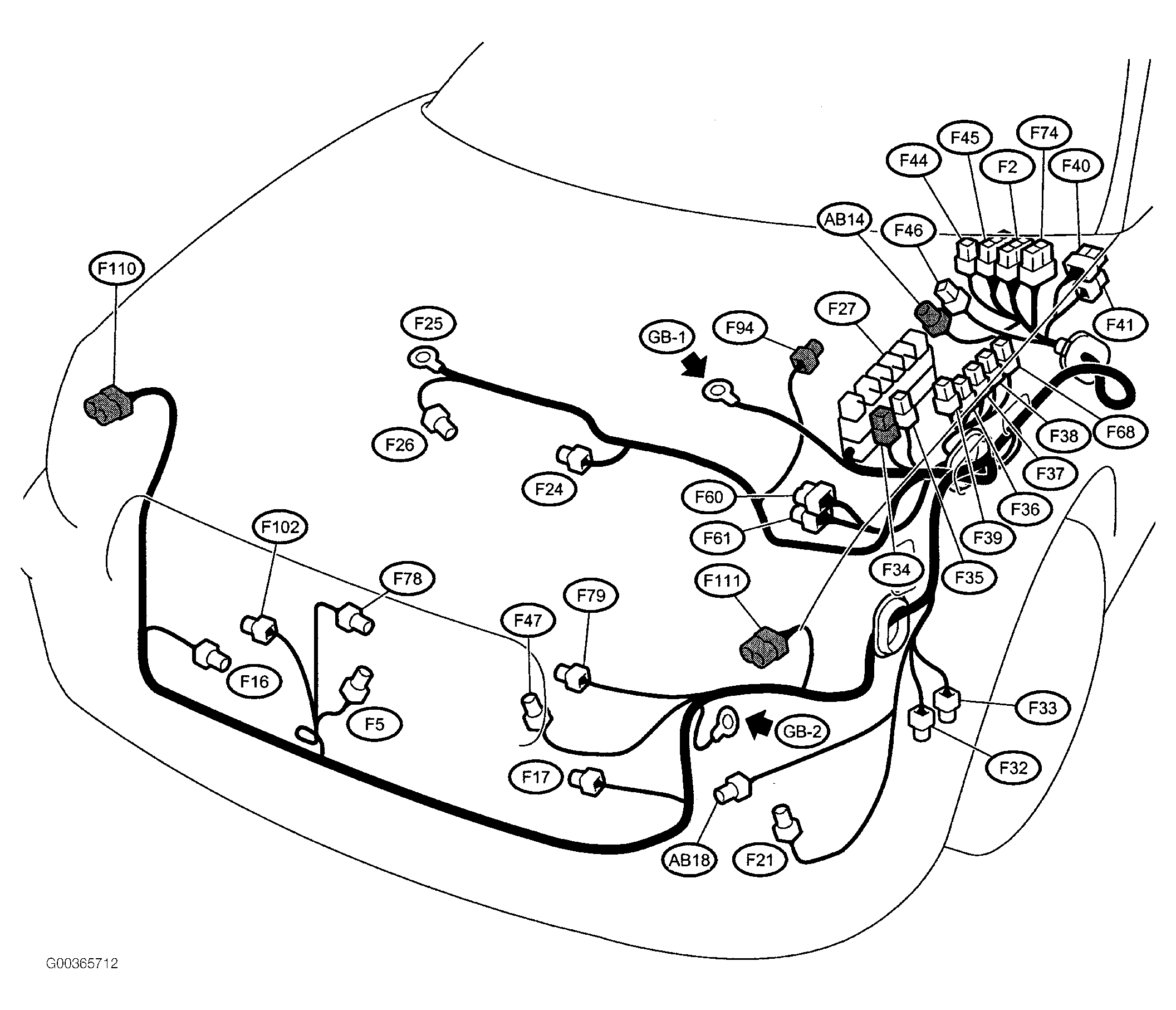

A/C Relay Holder (F27) At left side of engine compartment. See Figure .
Fuse & Relay Box (F/B) Behind left side of dash.
Main Fuse Box (M/B) On left side of engine compartment.

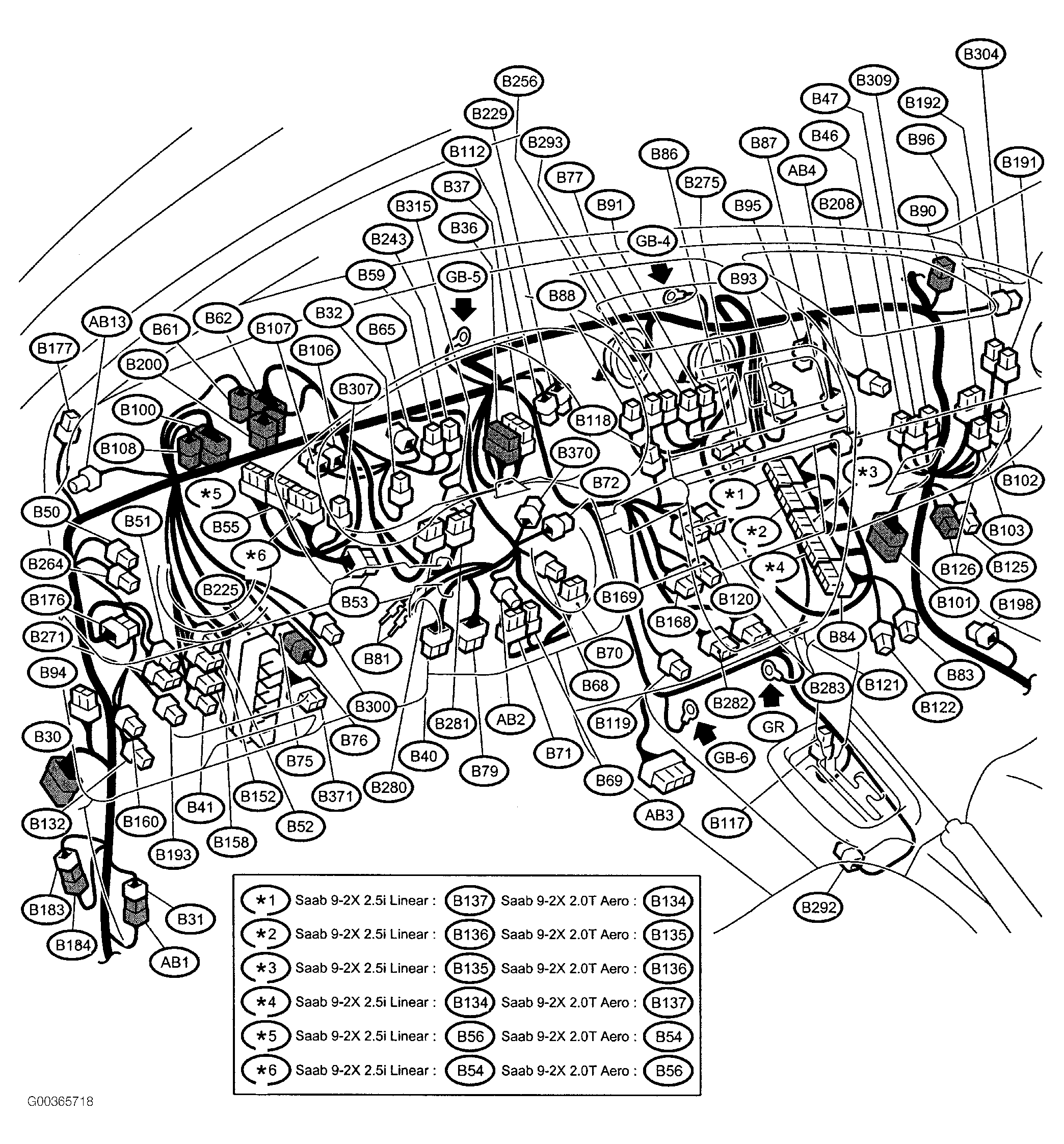

Power Window Circuit Breaker (B41) Under left side of dash. See Figure .
Relay Block (B225) Under left side of dash. See Figure .
SBF Holder (F34) On left side of engine compartment. See Figure .
