Spark Plug: Inspection

Check the electrodes and inner and outer ceramic insulator of plugs, noting the type of deposits and the degree of electrode erosion.

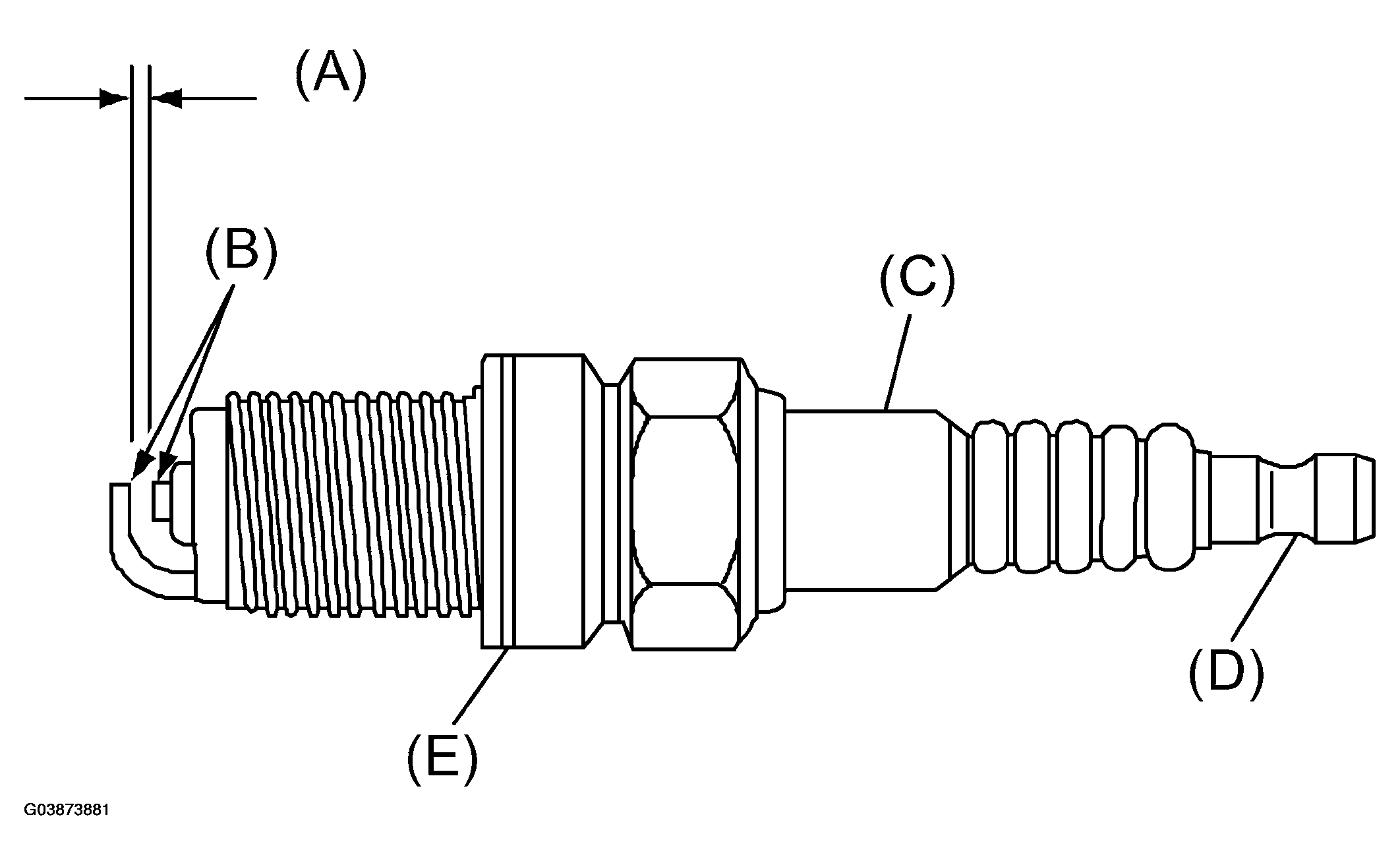

Fig 1: Checking Spark Plug Gap

Courtesy of SAAB-SCANIA OF AMERICA, INC.

Spark plug gap
Carbon accumulation or wear
Crack
Damage
Damaged gasket

Normal:

Brown to grayish-tan deposits and slight electrode wear indicate correct spark plug heat range.

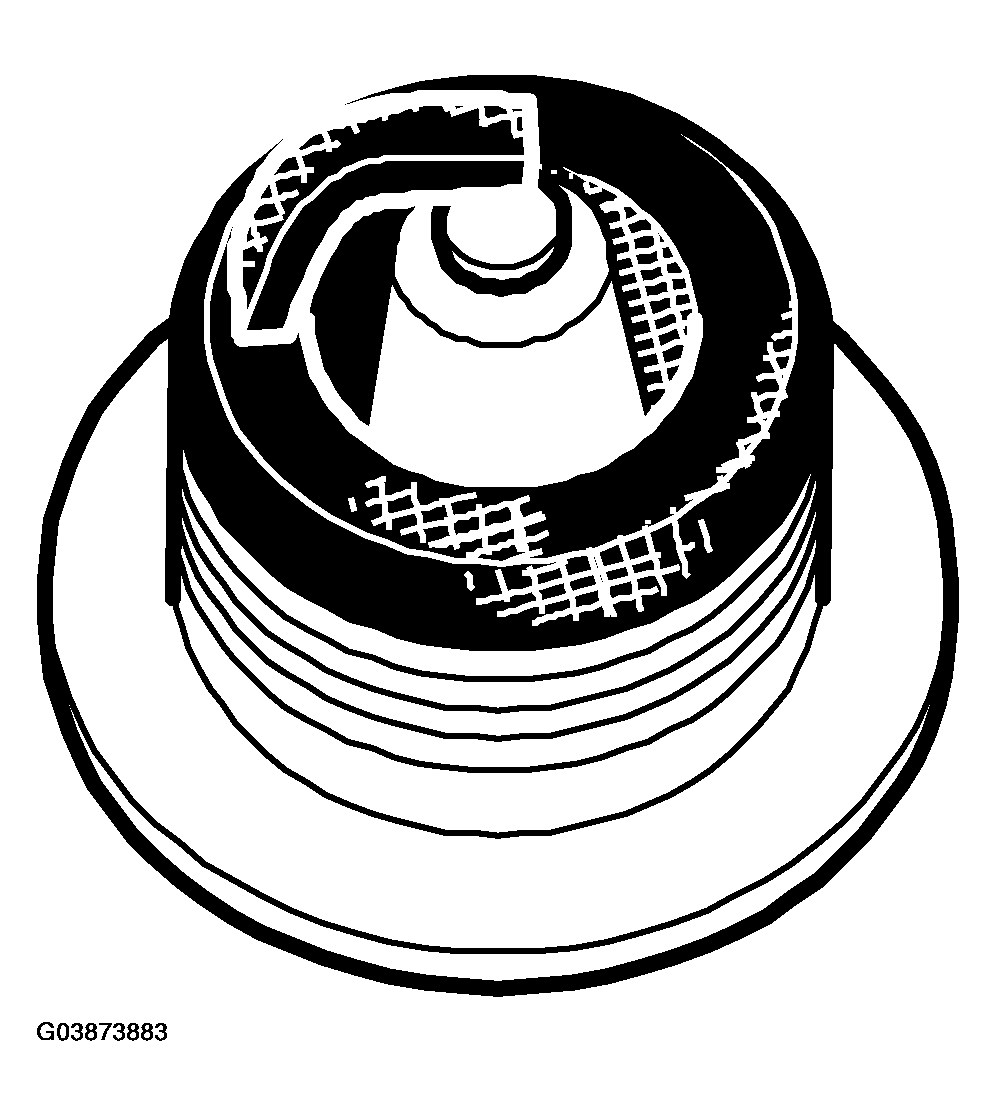

Fig 2: Checking Brown To Grayish-Tan Deposits

Courtesy of SAAB-SCANIA OF AMERICA, INC.

Carbon fouled:

Dry fluffy carbon deposits on insulator and electrode are mostly caused by slow speed driving in the city, weak ignition, too rich fuel mixture, dirty air cleaner, etc.

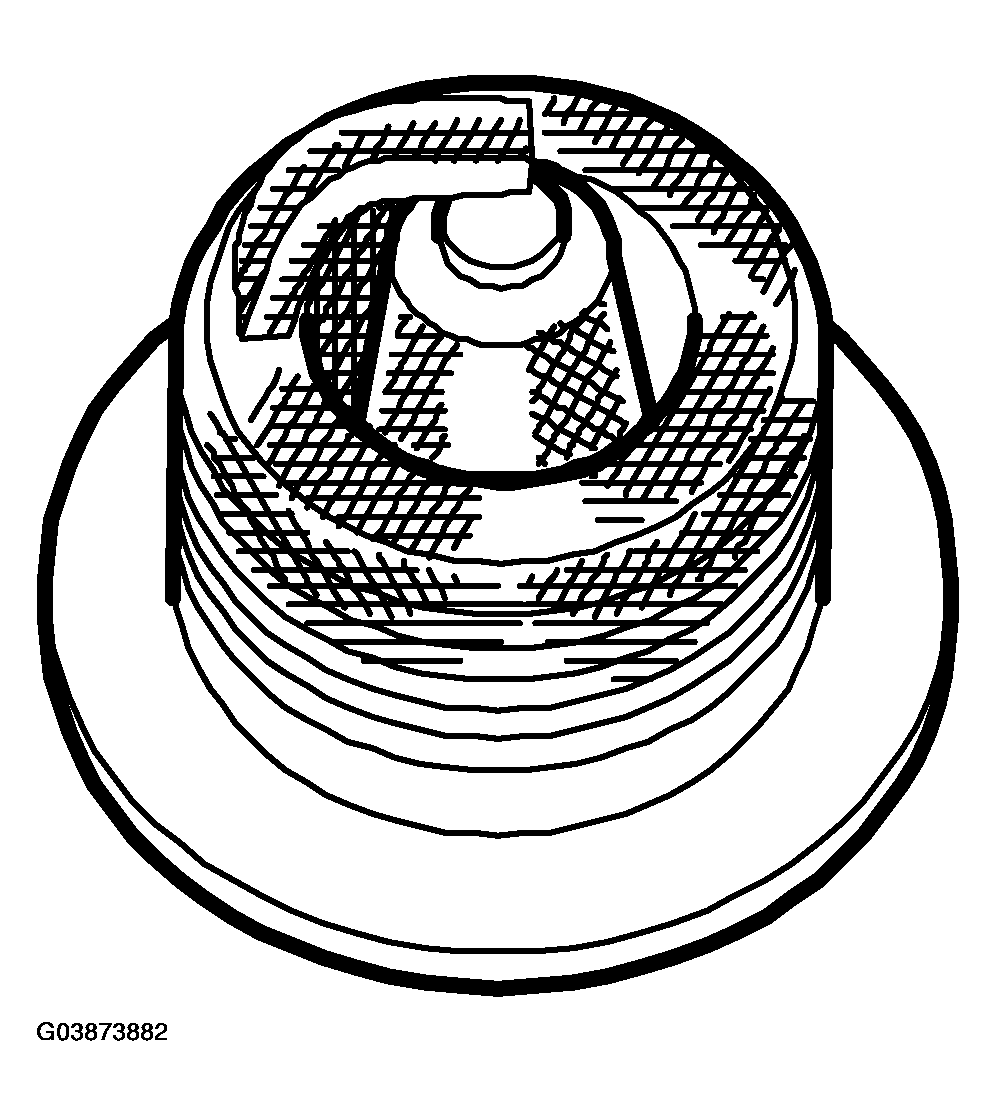

Fig 3: Checking For Carbon Fouled

Courtesy of SAAB-SCANIA OF AMERICA, INC.

Oil fouled:

Wet black deposits show excessive oil entrance into combustion chamber through worn rings and pistons or excessive clearance between valve guides and stems.

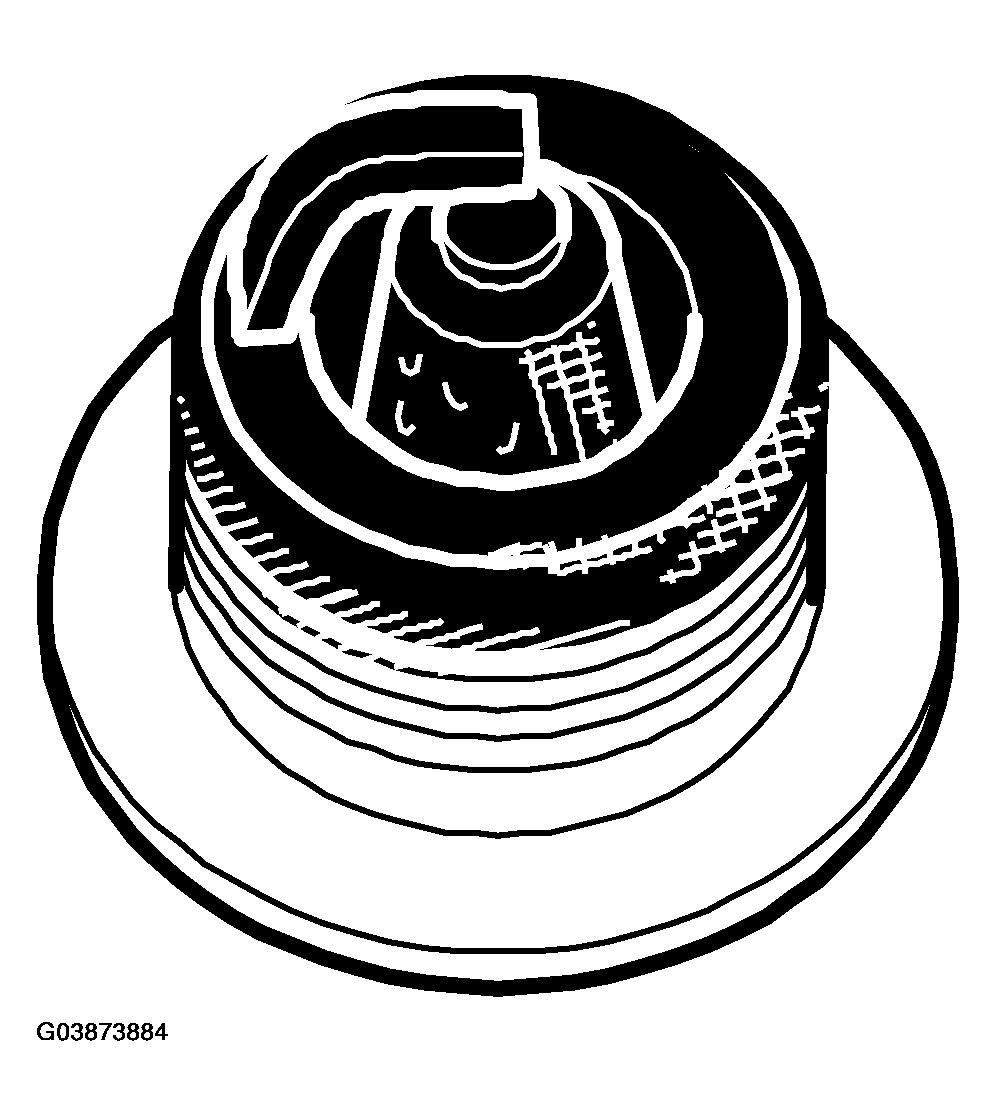

Fig 4: Checking For Oil Fouled

Courtesy of SAAB-SCANIA OF AMERICA, INC.

Overheating:

White or light gray insulator with black or brown spots and bluish burnt electrodes indicate engine overheating. Moreover, the appearance results from incorrect ignition timing, loose spark plugs, wrong selection of fuel, etc.

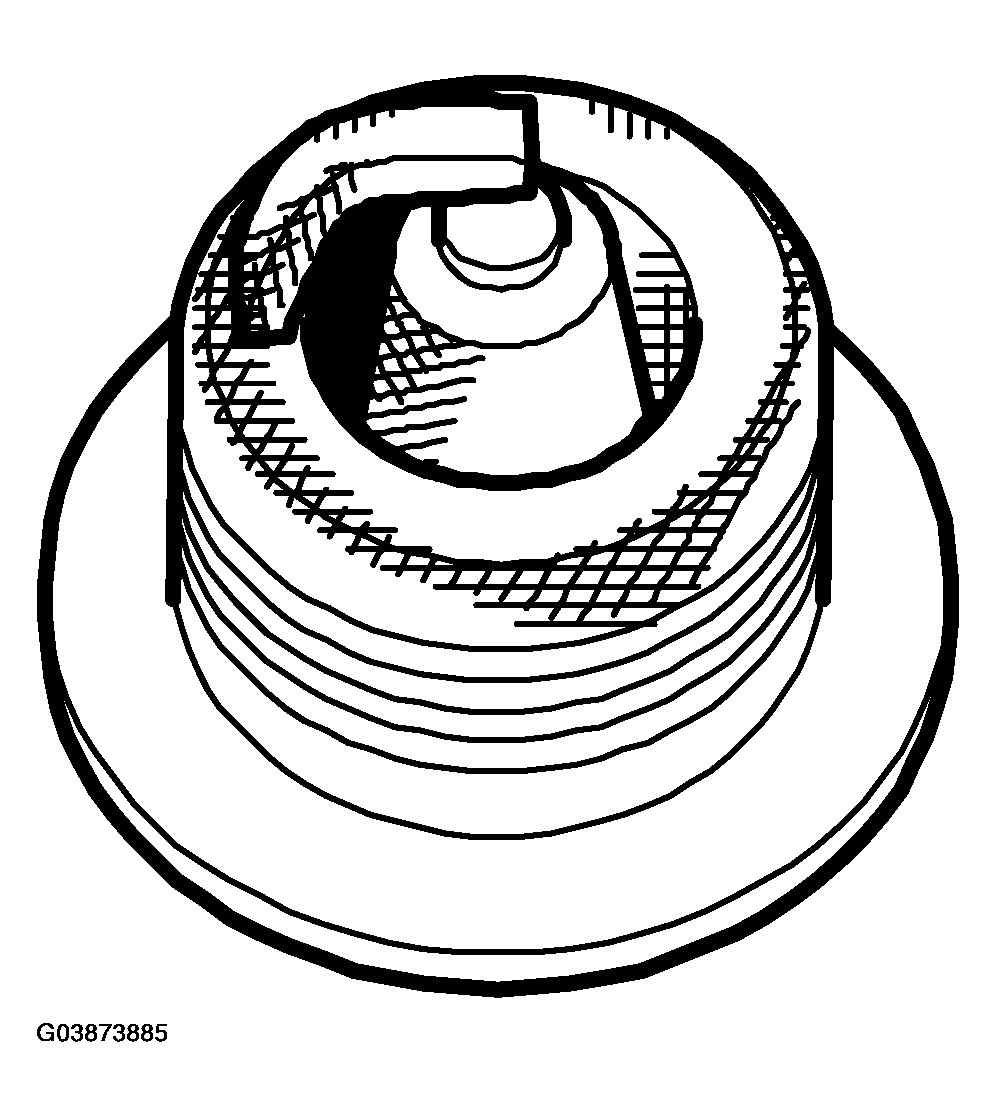

Fig 5: Checking For Overheating

Courtesy of SAAB-SCANIA OF AMERICA, INC.

IMPORTANT: Avoid using a plug cleaner because of the spark plug with a platinum tip.
