Component Views

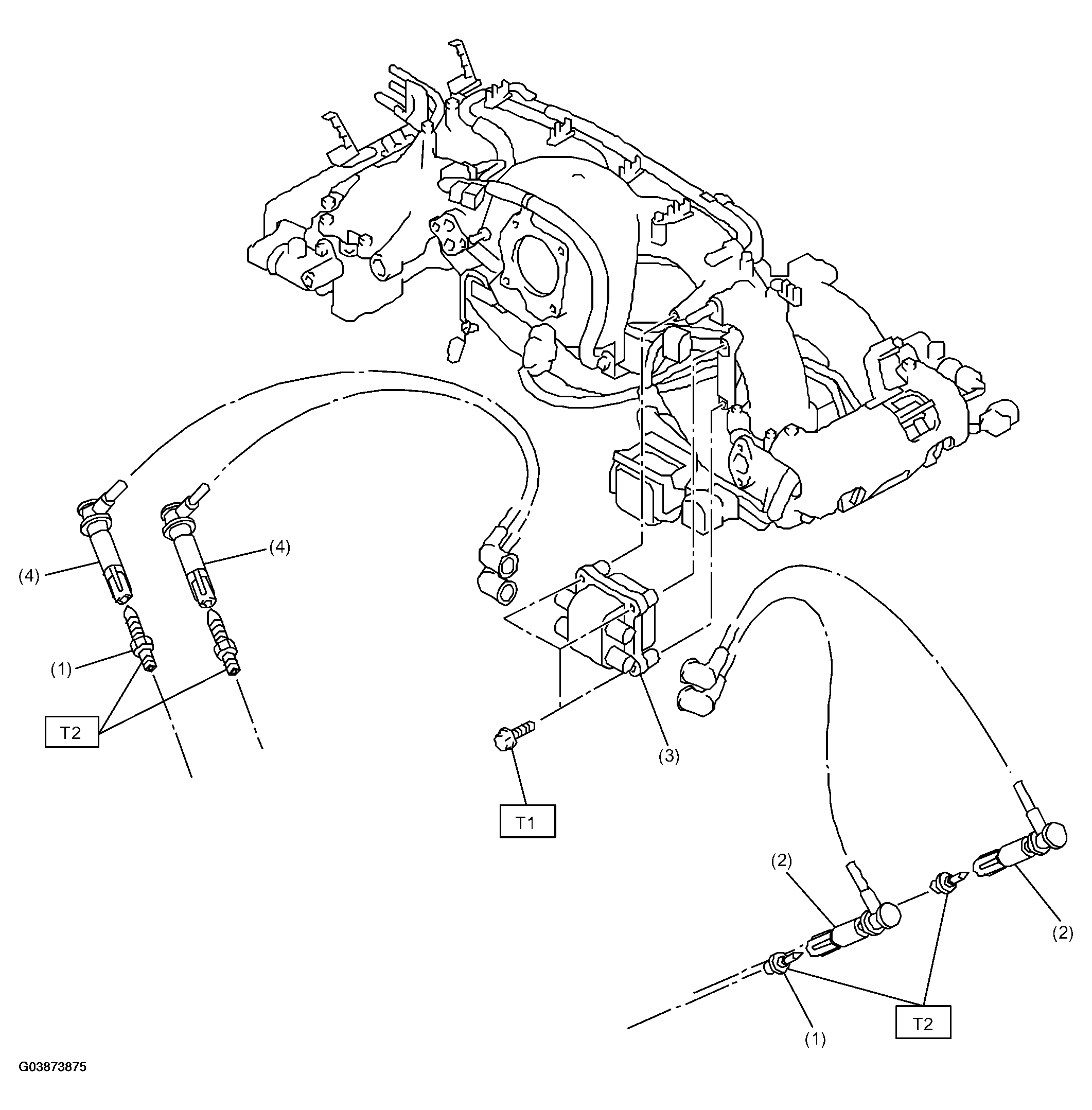

Fig 1: Identifying Ignition Components - 2.5L
G03873875Courtesy of SAAB-SCANIA OF AMERICA, INC.
  1. Spark plug
  2. Spark plug cord (#1, #3)
  3. Ignition coil and ignitor assembly
  4. Spark plug cord (#2, #4)

    Tightening torque: Nm (kgfm, ft-lb)

    T1: 6.4 (0.65, 4.7)

    T2: 21 (2.1, 15.2)
