Control Valve Body: Installation

Saab 9-2X 2.0T Aero

Set the range select lever in "N" range.

Install the control valve, ATF temperature sensor and ground connectors.

Tightening torque:

8 Nm (0.8 kgf-m, 5.8 ft-lb)

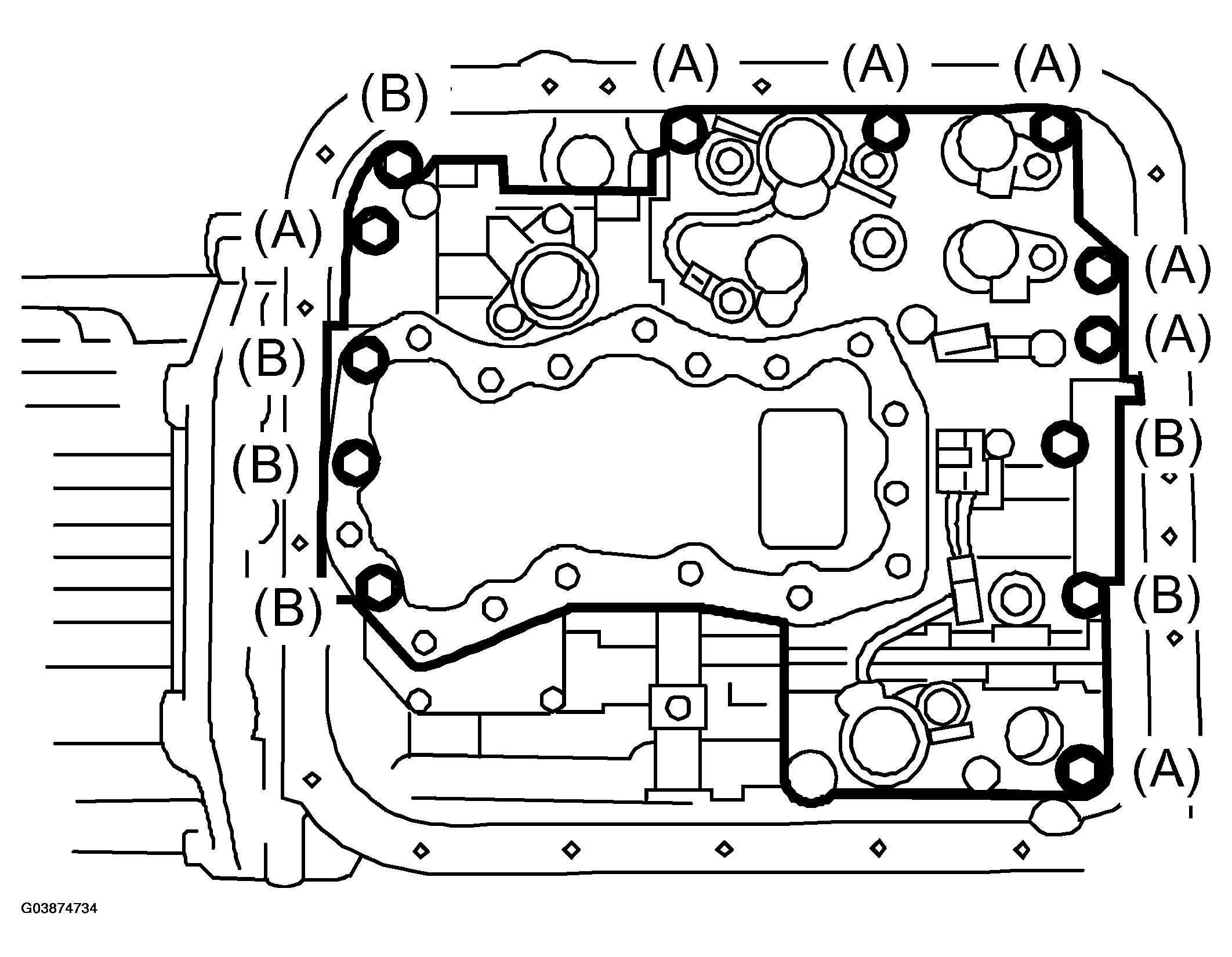

Fig 1: Installing Control Valve
G03874734Courtesy of SAAB-SCANIA OF AMERICA, INC.

Bolt length mm (in)

  1. 30 (1.18)
  2. 55 (2.17)

Connect all connectors.

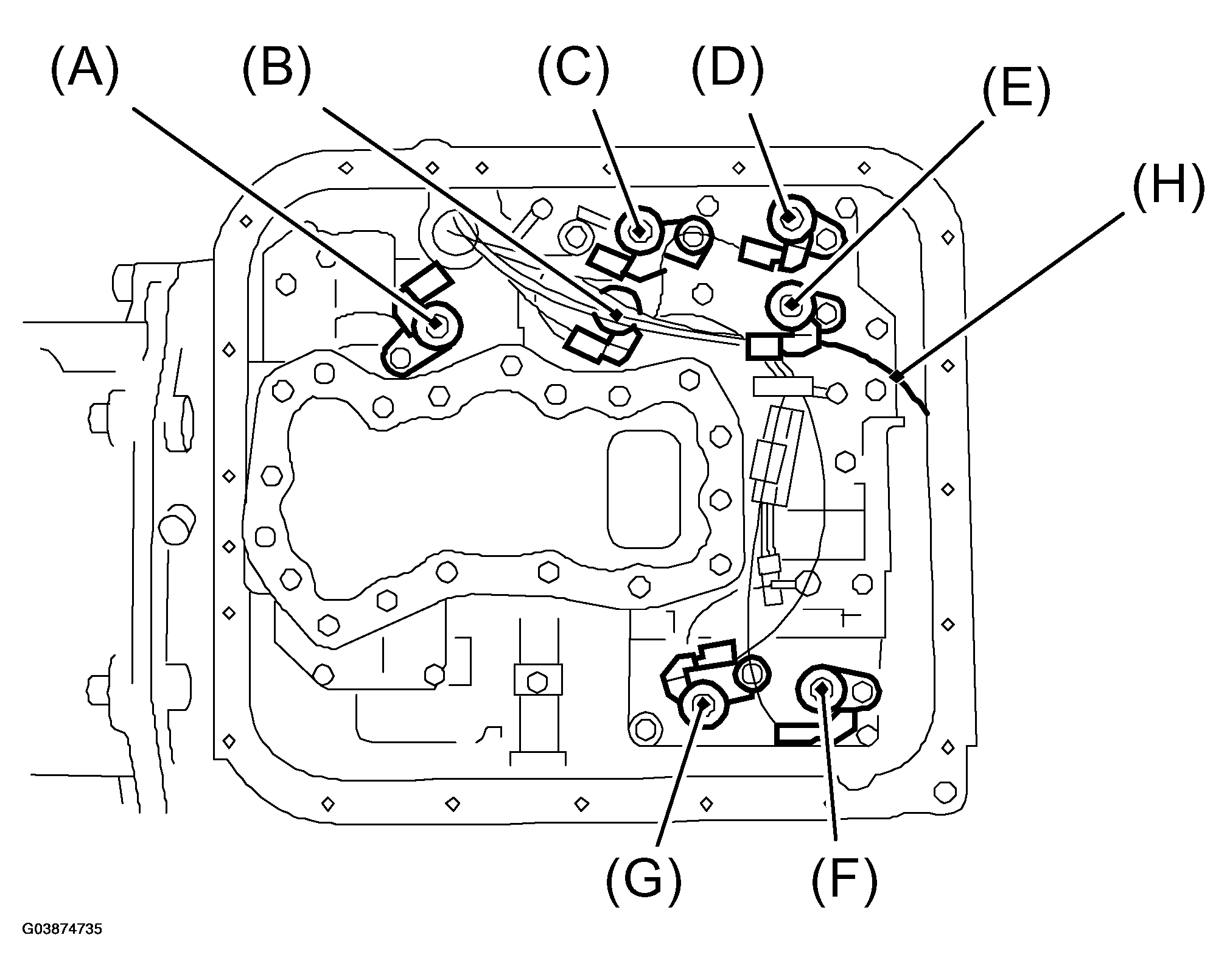

Fig 2: Connecting Connectors
G03874735Courtesy of SAAB-SCANIA OF AMERICA, INC.
  1. Lock-up duty solenoid (Blue)
  2. Low clutch timing solenoid (Gray)
  3. Line pressure duty solenoid (Red)
  4. Shift solenoid 2 (Yellow)
  5. Shift solenoid 1 (Green)
  6. 2-4 brake timing solenoid (Black)
  7. 2-4 brake duty solenoid (Red)
  8. Transfer duty solenoid (Brown)

Attach the magnet at specified position.

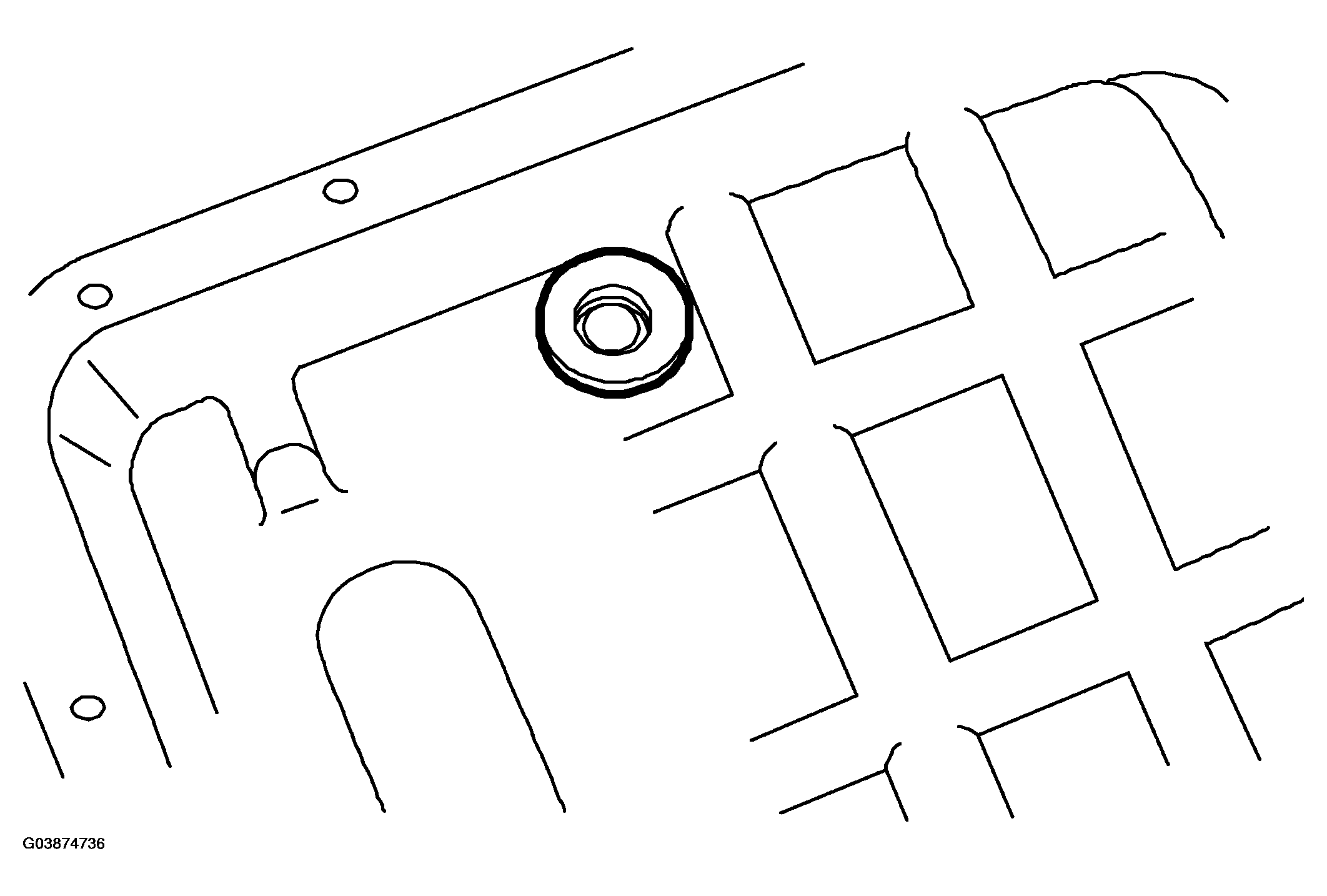

Fig 3: Installing Magnet
G03874736Courtesy of SAAB-SCANIA OF AMERICA, INC.

Apply proper amount of liquid gasket to the entire oil pan mating surface.

Liquid gasket:

THREE BOND 1217B (Part No. 32005004)

Fig 4: Applying Proper Amount Of Liquid Gasket
G03874737Courtesy of SAAB-SCANIA OF AMERICA, INC.

Apply liquid gasket fully to three holes other than screw holes on transmission case.

Liquid gasket:

THREE BOND 1217B (Part No. 32005004)

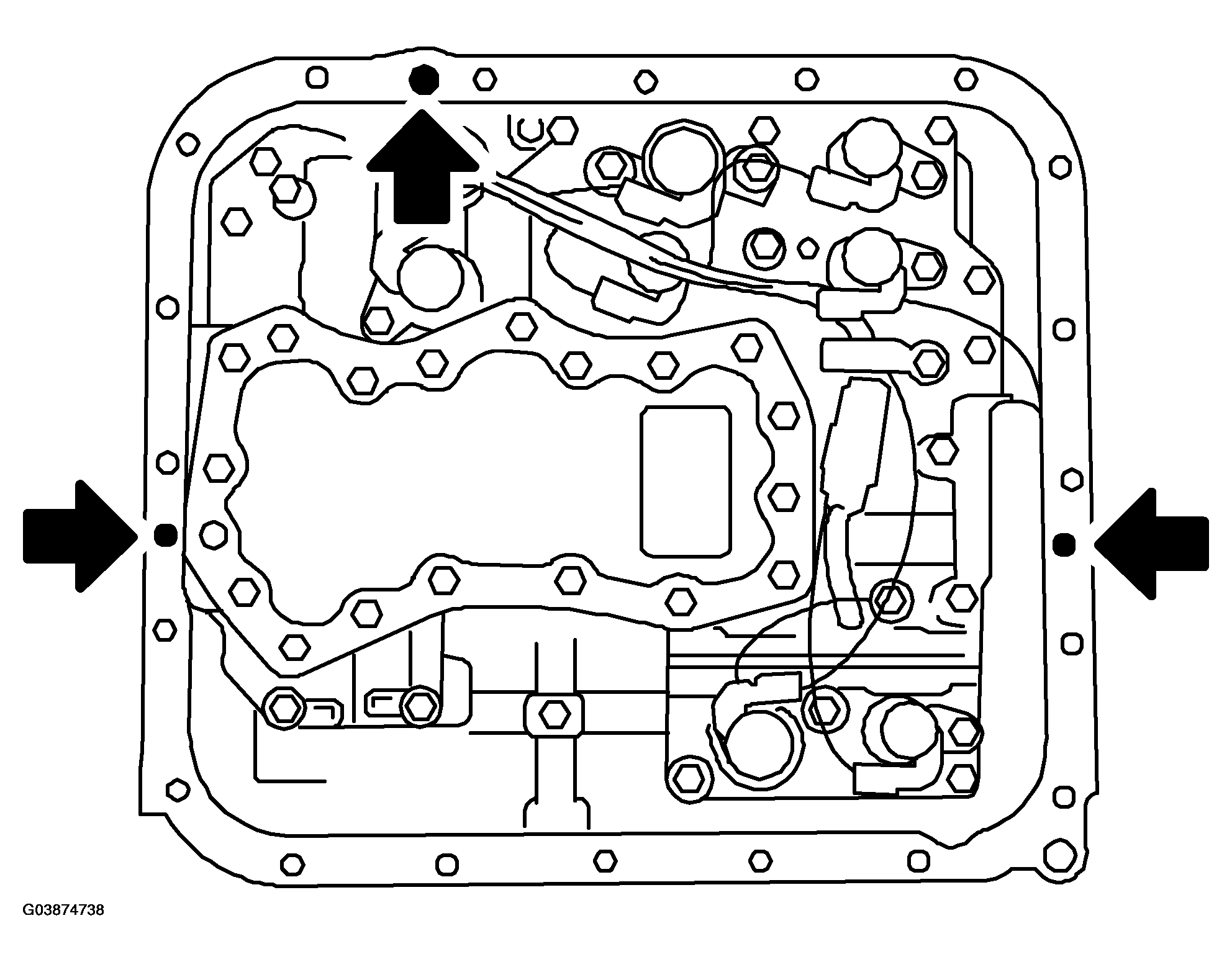

Fig 5: Applying Liquid Gasket
G03874738Courtesy of SAAB-SCANIA OF AMERICA, INC.

Install the oil pan by equally tightening the bolts.

Tightening torque:

5 Nm (0.5 kgf-m, 3.6 ft-lb)

Pour ATF from the oil charge pipe.

Recommended fluid:

Dexron III

Fluid capacity:

Fill the same amount of fluid drained from drain plug hole.

Check the level of ATF.

Saab 9-2X 2.5i Linear

Check the control valve body for dirt and dust.

Temporarily install the control valve body to transmission.

Install the oil cooler pipe.

Tightening torque:

8 Nm (0.8 kgf-m, 5.8 ft-lb)

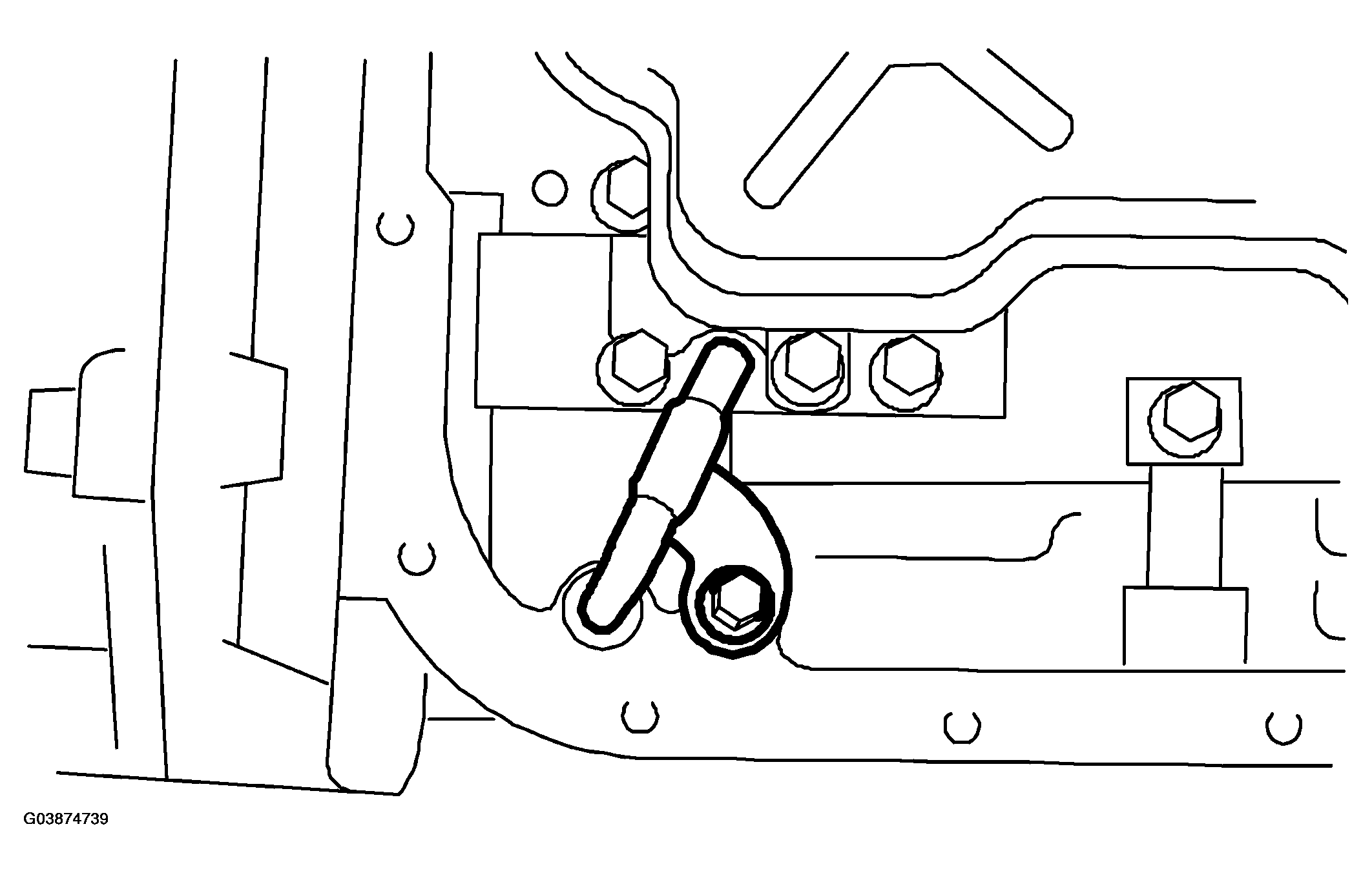

Fig 6: Installing Oil Cooler Pipe
G03874739Courtesy of SAAB-SCANIA OF AMERICA, INC.

Tighten the bolts evenly.

Tightening torque:

8 Nm (0.8 kgf-m, 5.8 ft-lb)

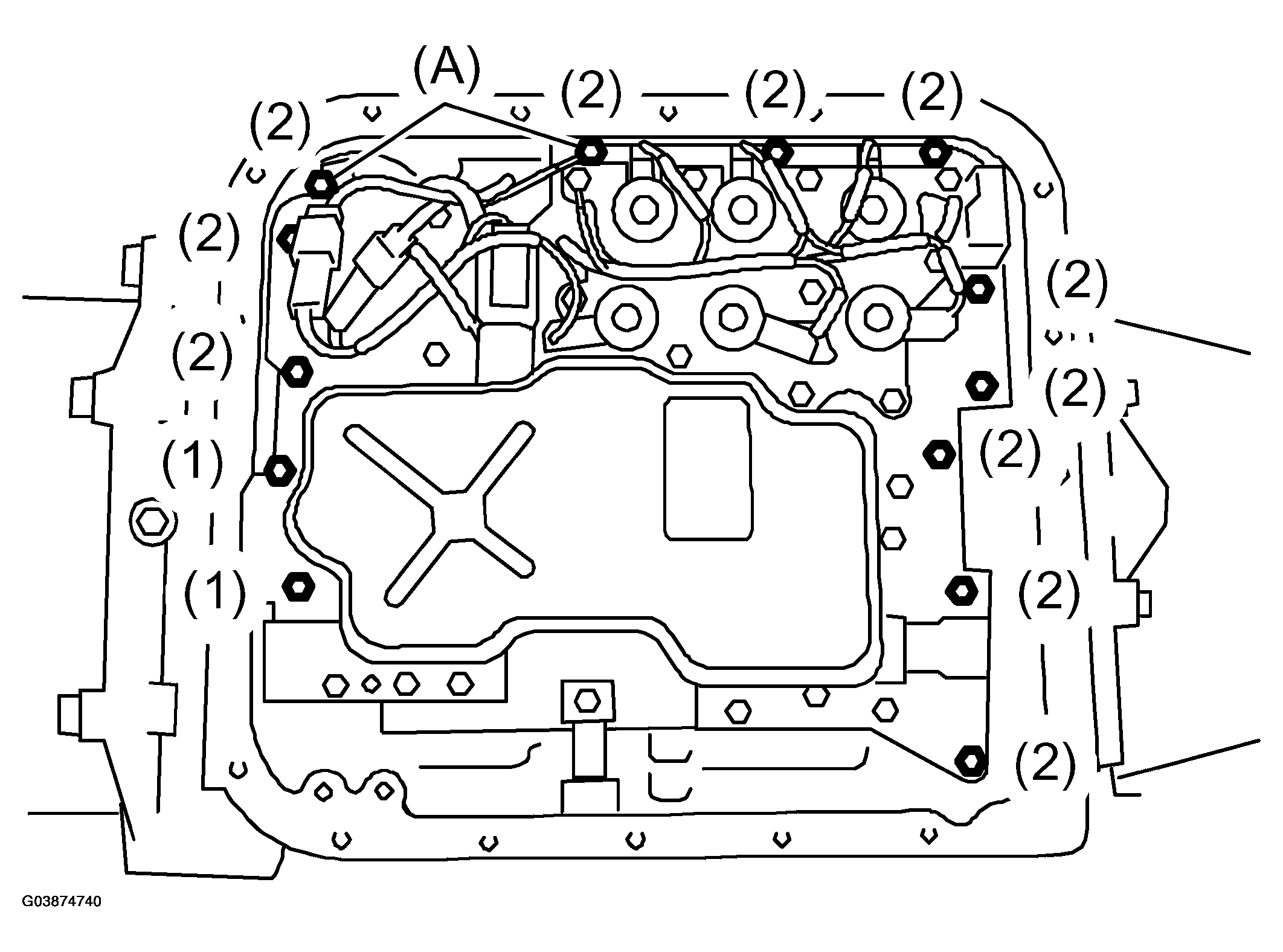

Fig 7: Tightening Bolts
G03874740Courtesy of SAAB-SCANIA OF AMERICA, INC.
  1. Transmission ground

    Bolt length mm (in)

    1. 35 (1.38)
    2. 30 (1.18)

Attach the magnet at specified position of oil pan.

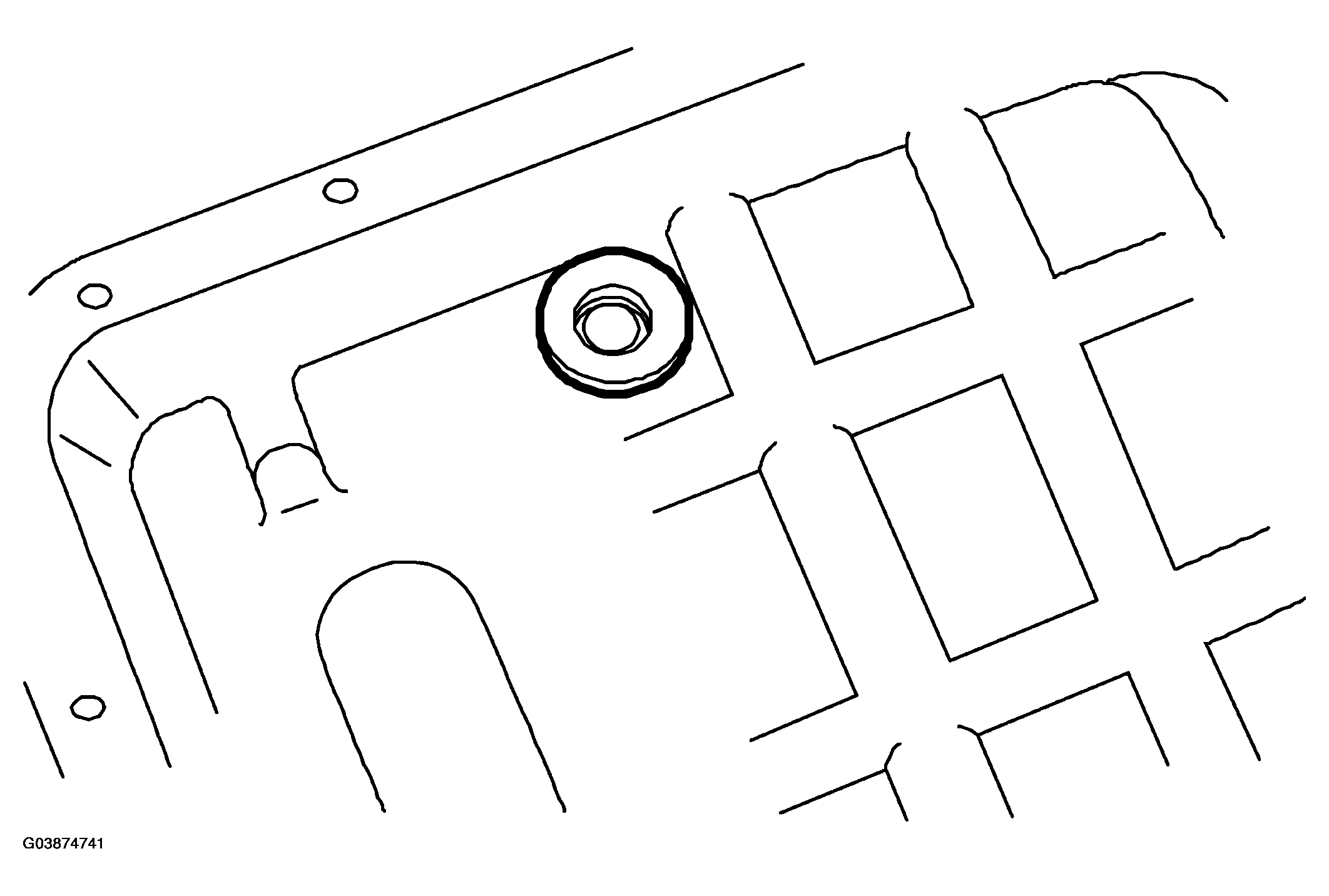

Fig 8: Installing Magnet
G03874741Courtesy of SAAB-SCANIA OF AMERICA, INC.

Apply proper amount of liquid gasket to the entire oil pan mating surface.

Liquid gasket:

THREE BOND 1217B (Part No. 32005004)

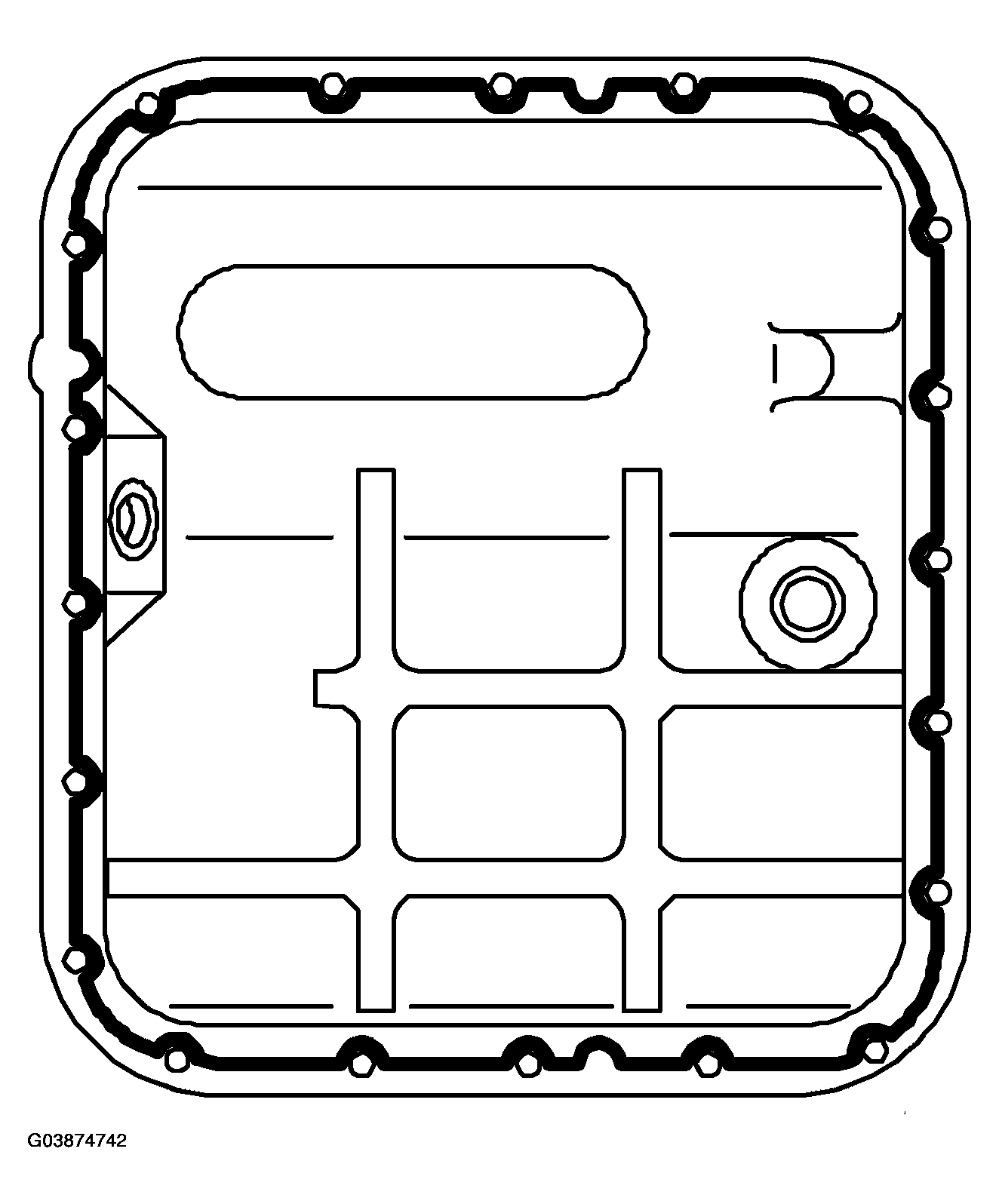

Fig 9: Applying Proper Amount Of Liquid Gasket
G03874742Courtesy of SAAB-SCANIA OF AMERICA, INC.

Apply liquid gasket fully to three holes other than screw holes on transmission case.

Liquid gasket:

THREE BOND 1217B (Part No. 32005004)

Fig 10: Applying Liquid Gasket
G03874743Courtesy of SAAB-SCANIA OF AMERICA, INC.

Install the oil pan with tightening bolts evenly.

Tightening torque:

5 Nm (0.5 kgf-m, 3.6 ft-lb)

Pour ATF into the oil charge pipe.

Recommended fluid:

Dexron III type automatic transmission fluid

Fluid capacity:

Fill the same amount of fluid drained from drain plug hole.

Bleed the air from control valve.

Check the level of ATF.

Perform the advance operation of learning control. (Saab 9-2X 2.5i Linear)
