MPT Model

Using the ST and a press, press in a new oil seal.

ST 32005087 INSTALLER

Press in the dust cover.

Install the transfer clutch pipe to extension case without deforming pipe.

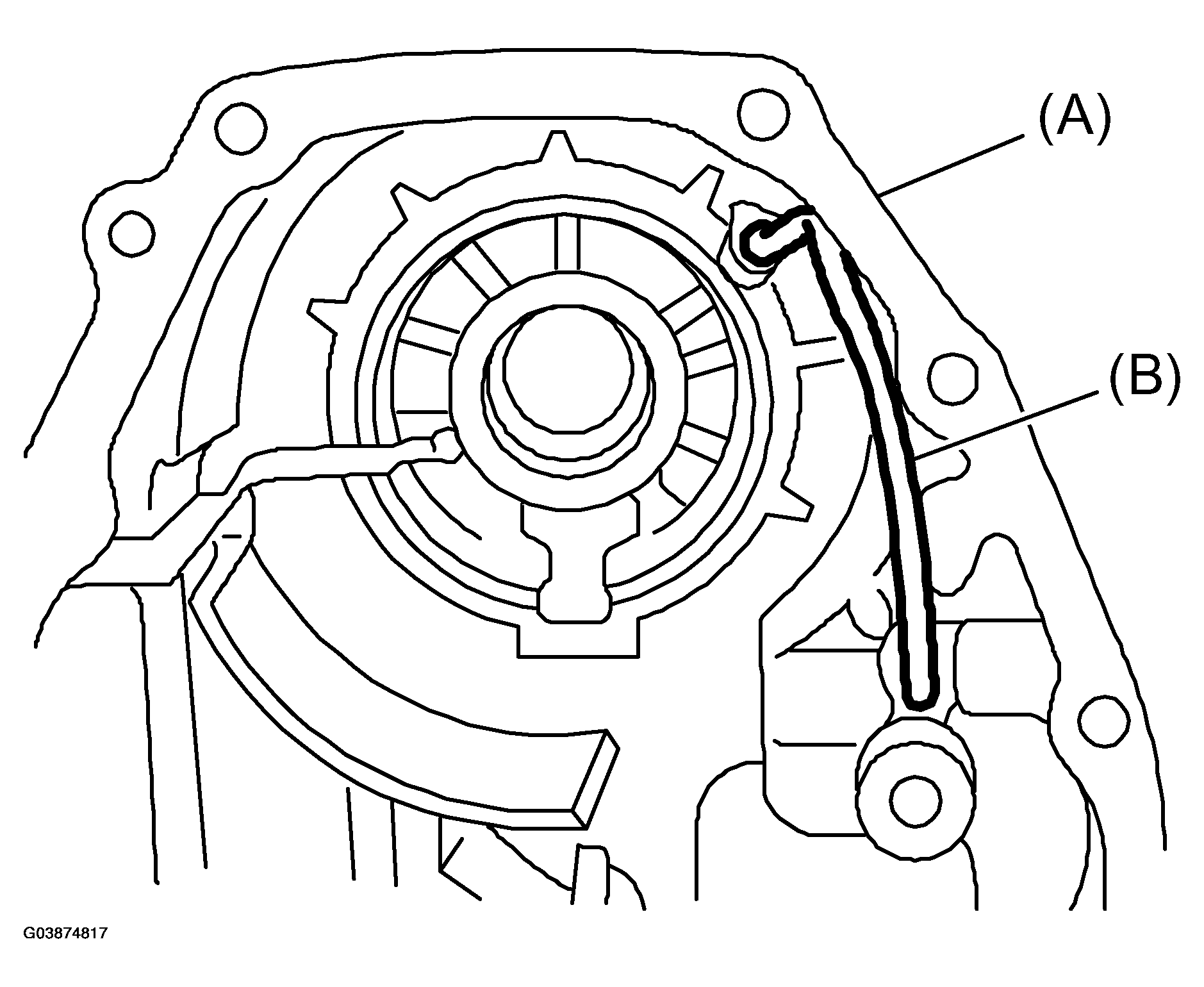

Fig 1: Installing Transfer Clutch Pipe To Extension Case

Courtesy of SAAB-SCANIA OF AMERICA, INC.

Install the transfer clutch assembly to the case.

NOTE:

Be careful not to damage the seal rings.
Insert the clutch assembly fully into position until the bearing shoulder bottoms.

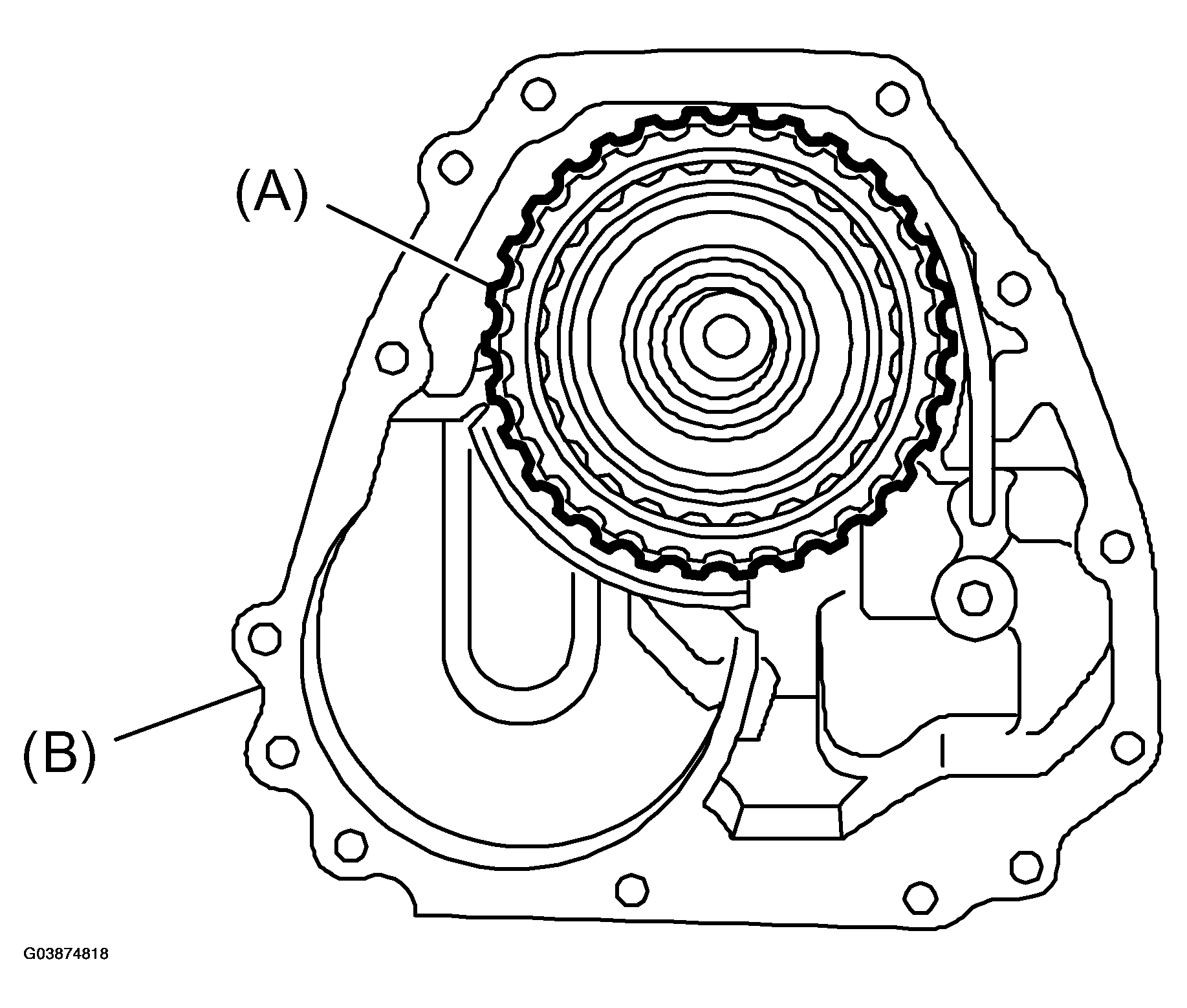

Fig 2: Inserting Clutch Assembly

Courtesy of SAAB-SCANIA OF AMERICA, INC.
