Front Differential Assembly: Installation

Install the differential assembly to the case, paying special attention not to damage the inside of the case (particularly, the differential side retainer contact surface).

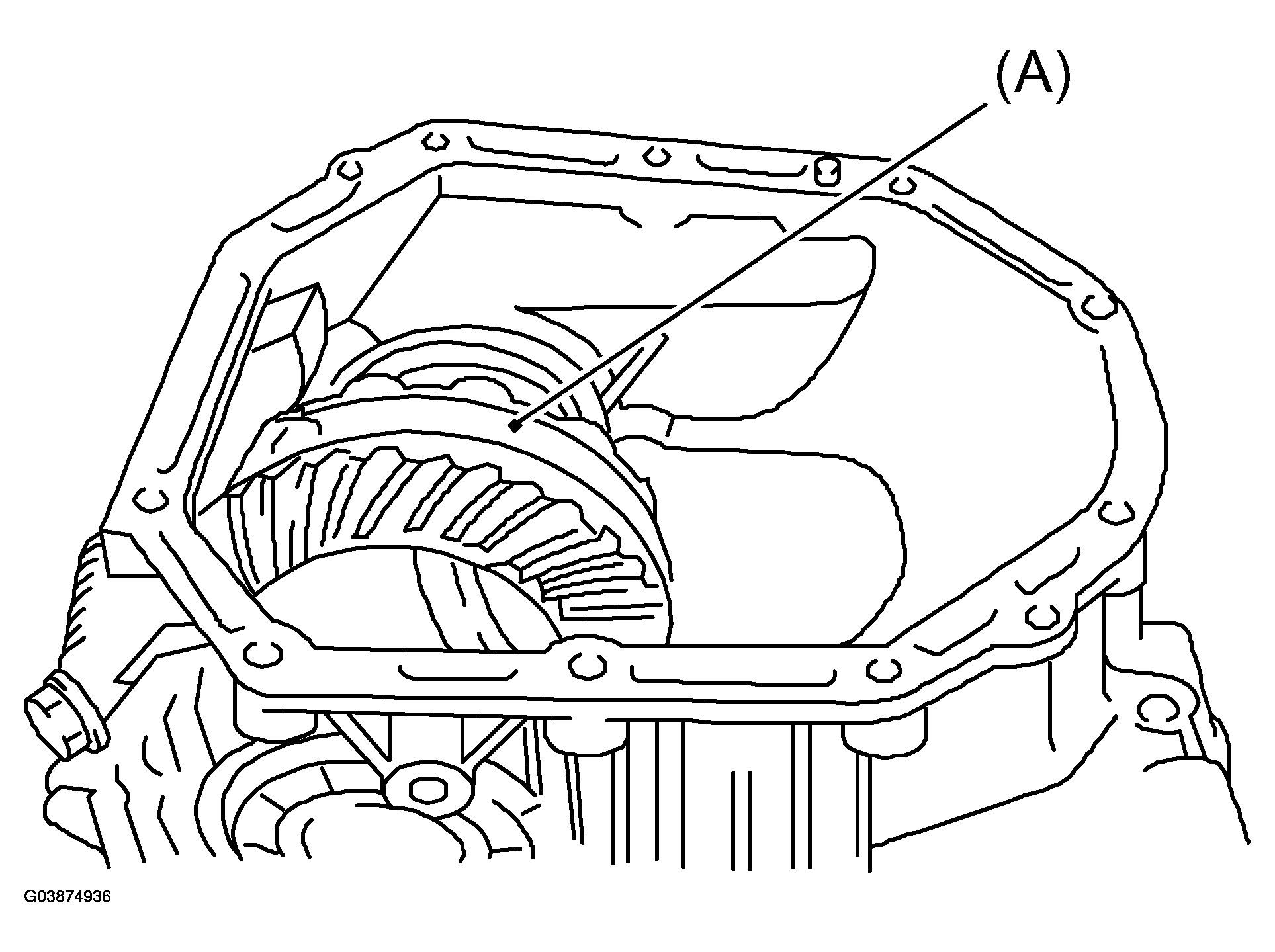

Fig 1: Installing Differential Assembly

Courtesy of SAAB-SCANIA OF AMERICA, INC.

Differential assembly

Install the O-rings from left and right side retainer.

Using ST, install the side retainers.

ST 32005023 WRENCH ASSY

Adjust the front differential backlash.

Install the lock plate.

Tightening torque:

25 Nm (2.5 kgf-m, 18.1 ft-lb)

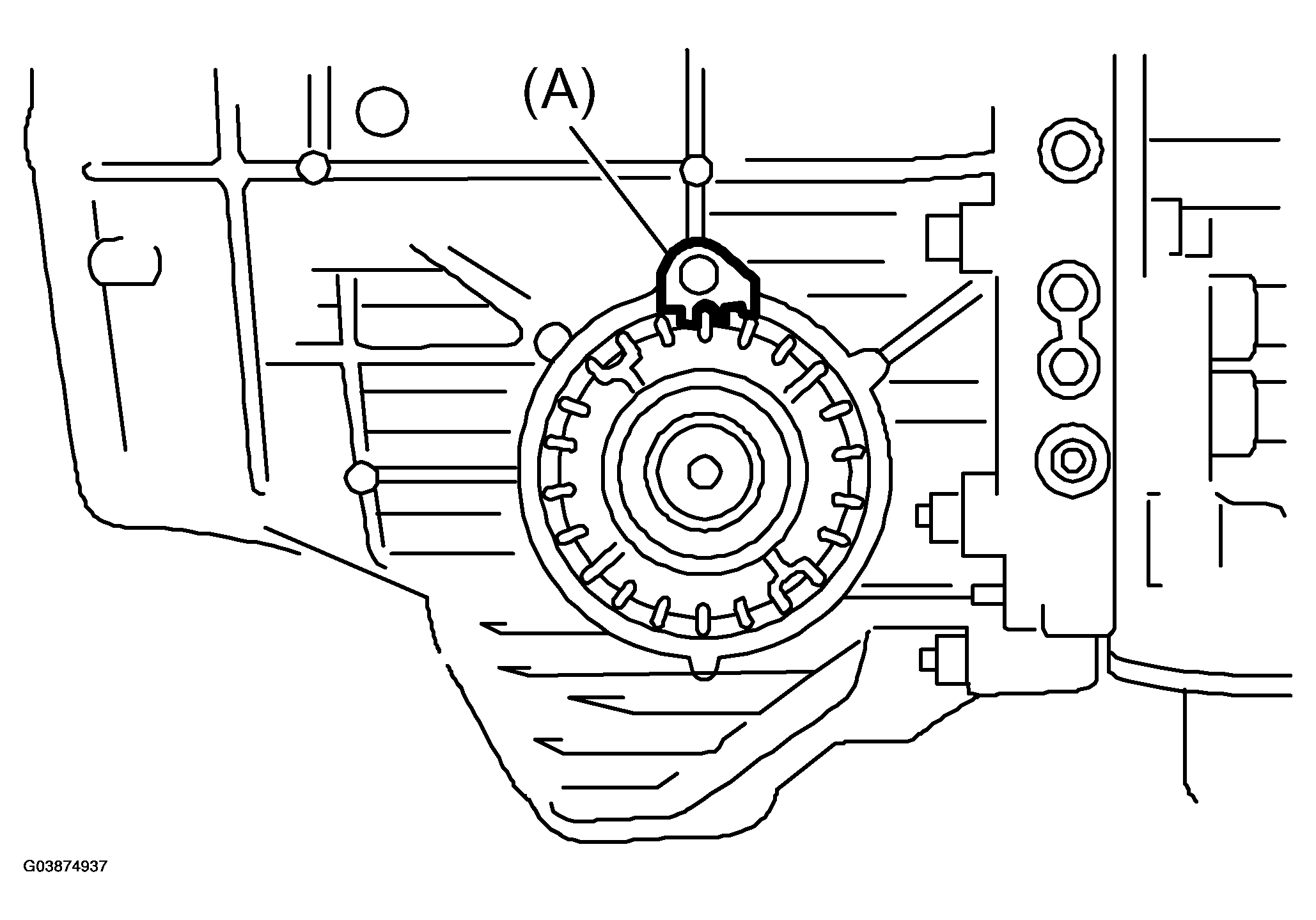

Fig 2: Installing Lock Plate

Courtesy of SAAB-SCANIA OF AMERICA, INC.

Lock plate

Install the new seal pipe to the converter case.

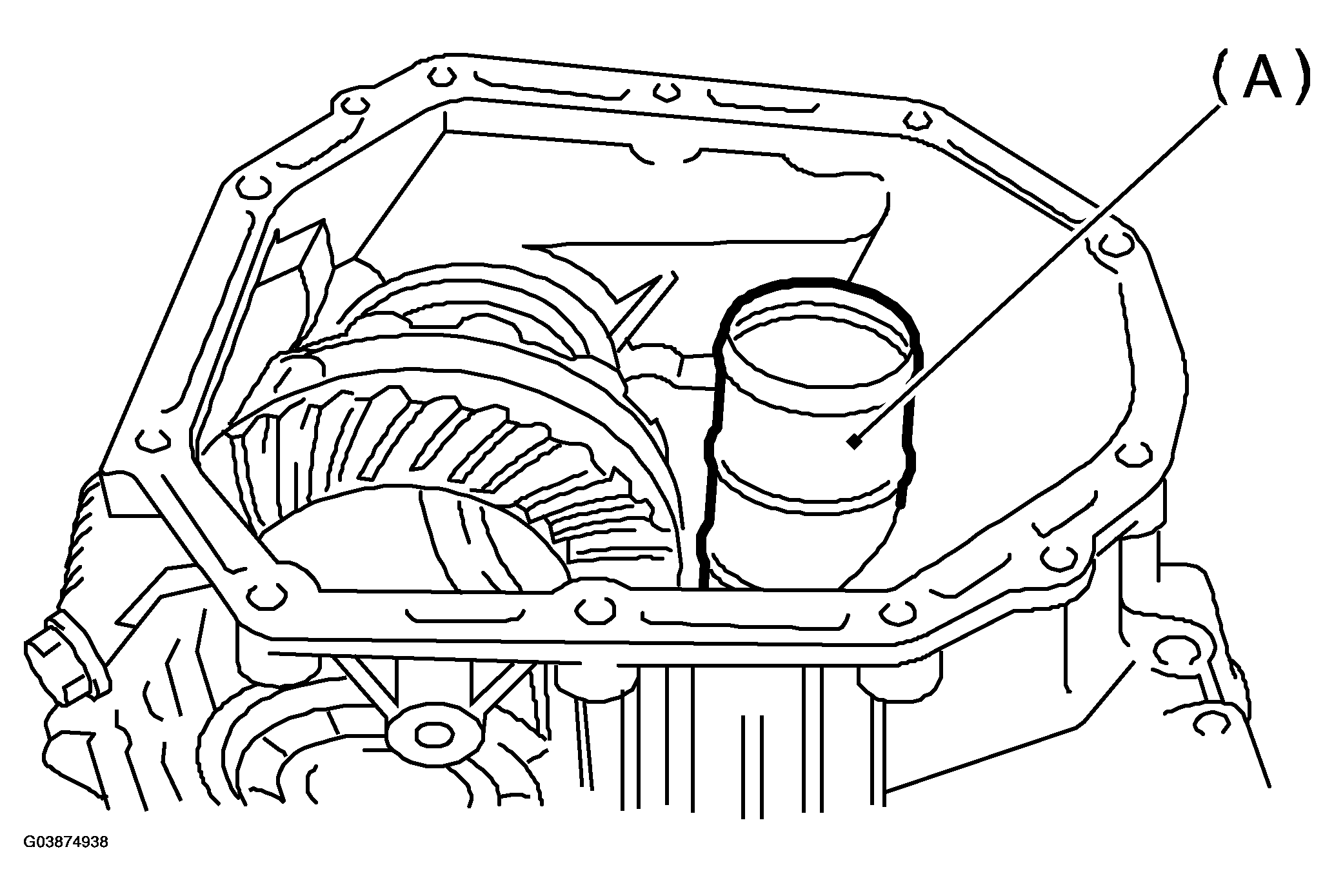

Fig 3: Installing New Seal Pipe

Courtesy of SAAB-SCANIA OF AMERICA, INC.

Seal pipe

Install the converter case to transmission case.

Insert inhibitor switch and transmission connector into stay.

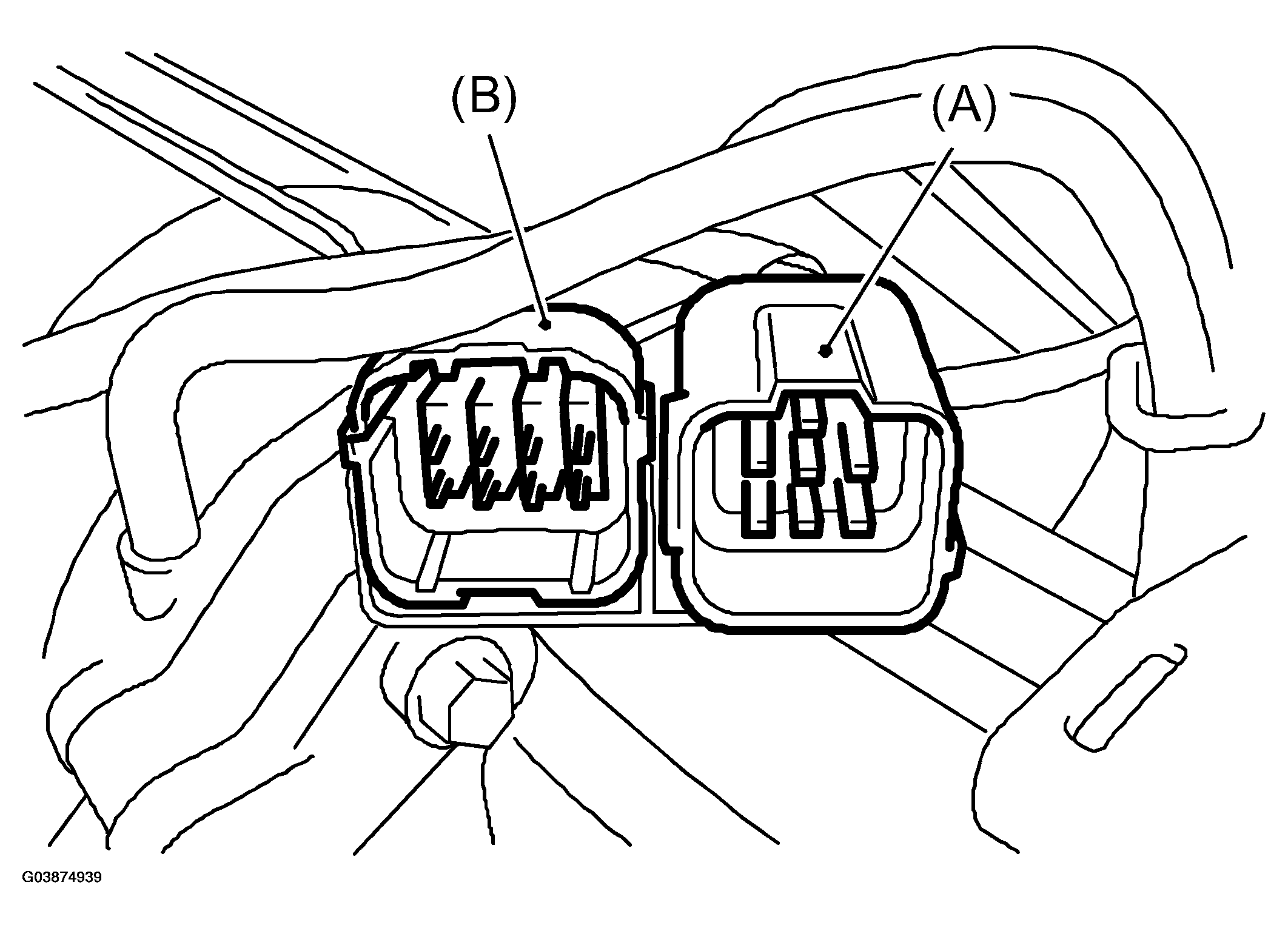

Fig 4: Inserting Inhibitor Switch And Transmission Connector Into Stay

Courtesy of SAAB-SCANIA OF AMERICA, INC.

Transmission harness
Inhibitor switch harness

Install oil cooler pipes.

Install the oil charge pipe with O-ring

Insert the input shaft while turning lightly by hand and verify the protrusion amount.

Normal protrusion A:

50 - 55 mm (1.97 - 2.17 in)

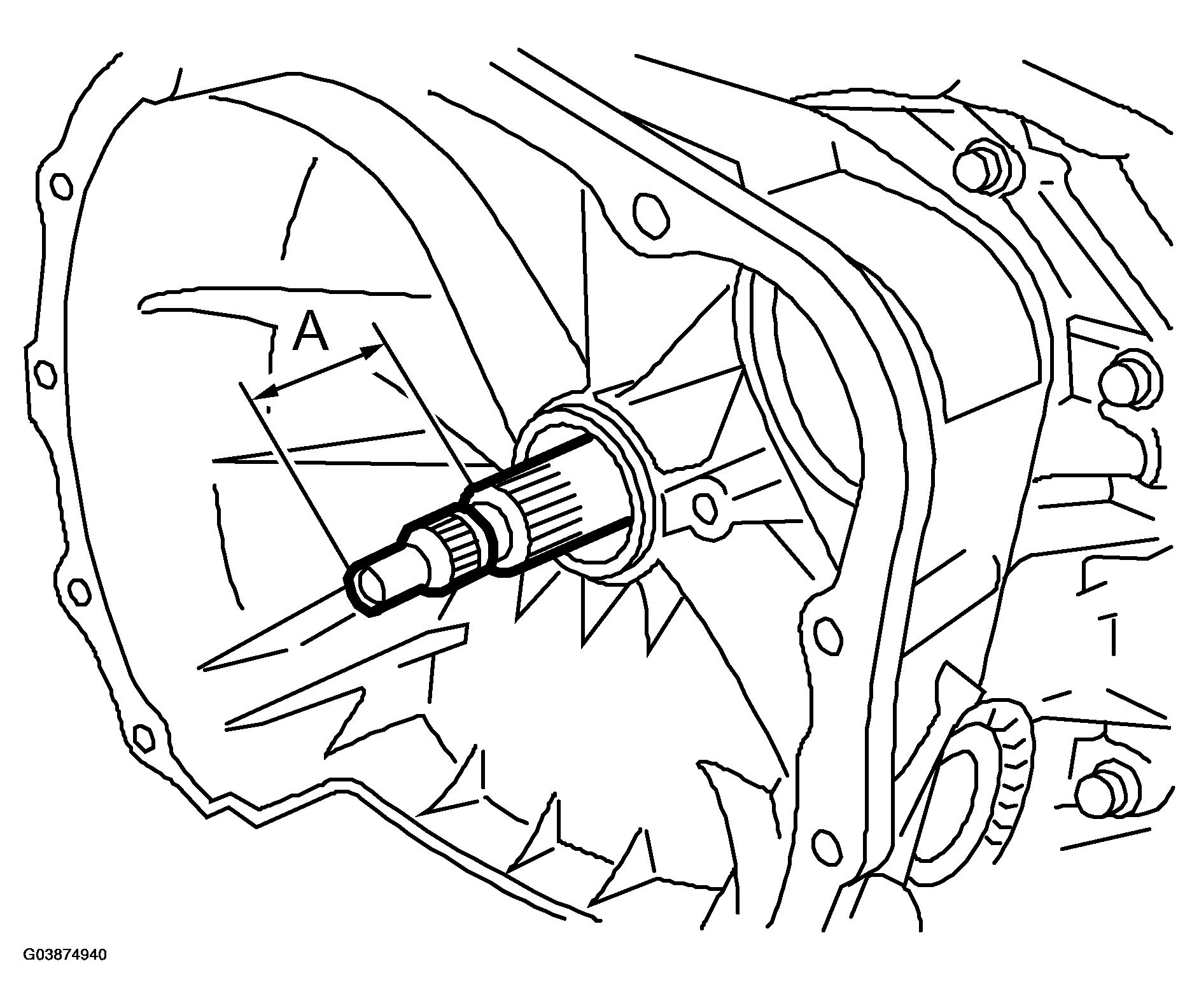

Fig 5: Inserting Input Shaft

Courtesy of SAAB-SCANIA OF AMERICA, INC.

Install the torque converter clutch assembly.

Install the transmission assembly to the vehicle.
