Transmission Control Device: Installation

Install detention spring to transmission case.

Tightening torque:

6 Nm (0.6 kgf-m, 4.3 ft-lb)

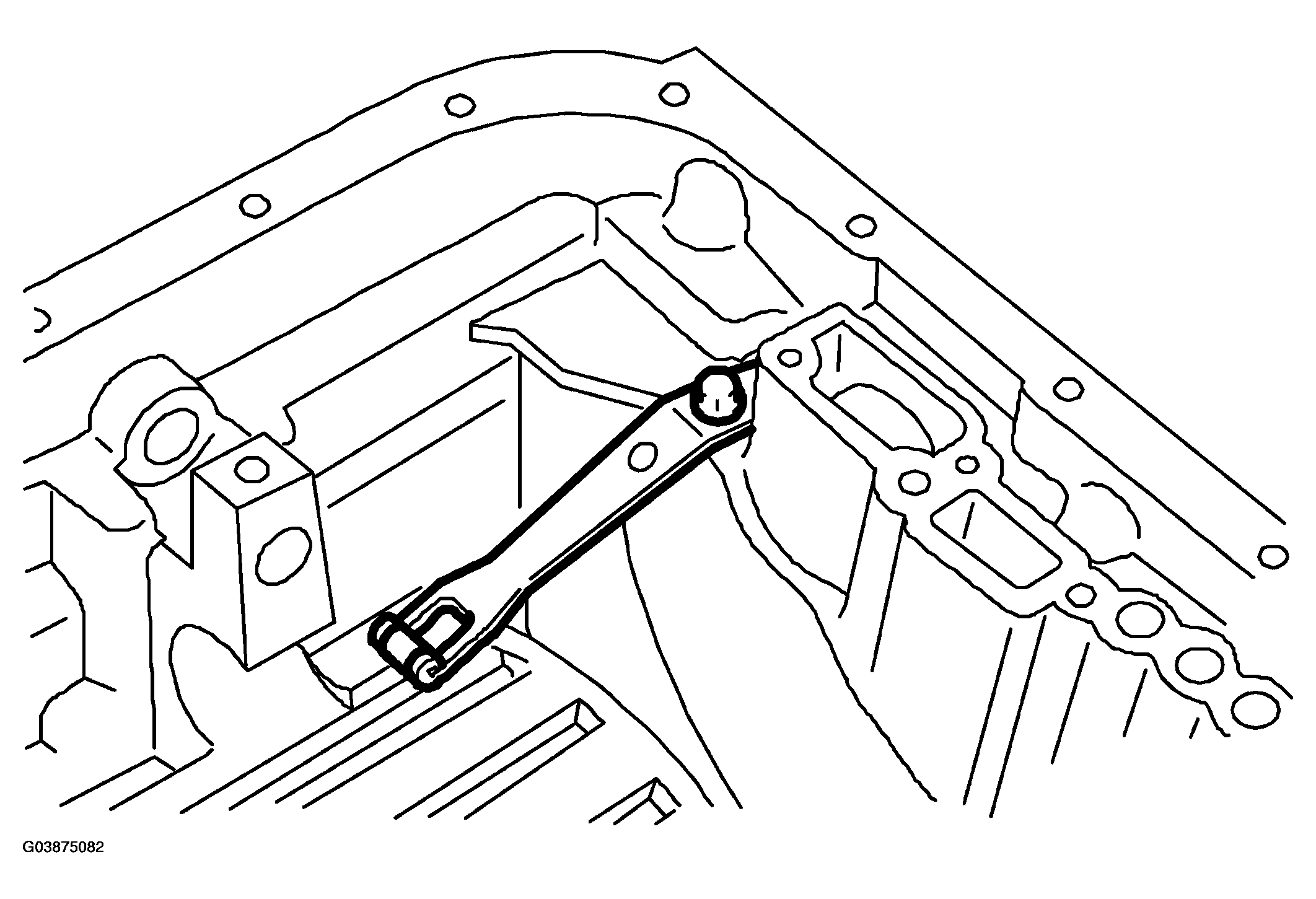

Fig 1: Installing Detention Spring To Transmission Case

Courtesy of SAAB-SCANIA OF AMERICA, INC.

Insert range select lever, and tighten bolt.

Tightening torque:

6 Nm (0.6 kgf-m, 4.3 ft-lb)

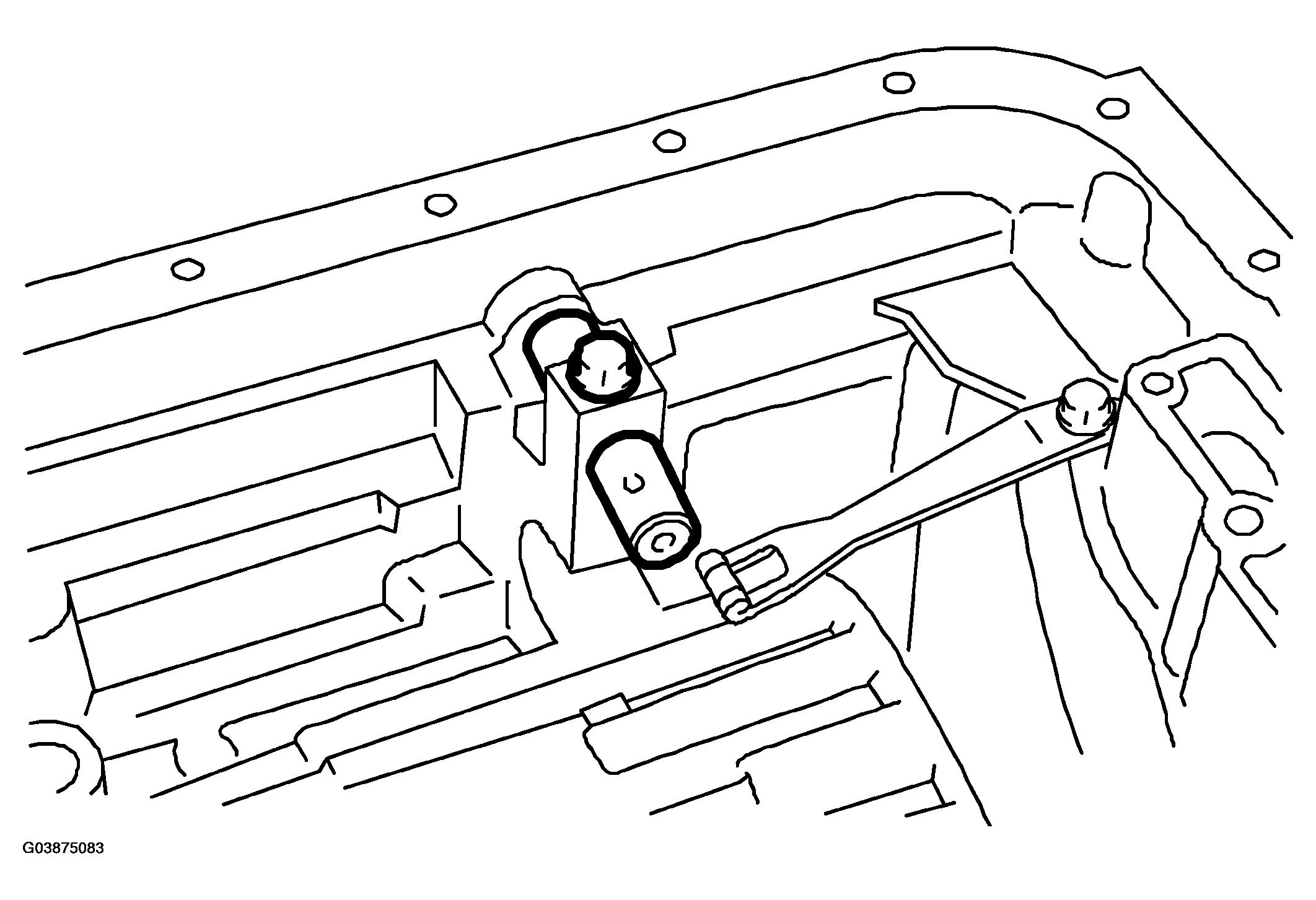

Fig 2: Inserting Range Select Lever And Tightening Bolt

Courtesy of SAAB-SCANIA OF AMERICA, INC.

Install the manual plate and parking rod.

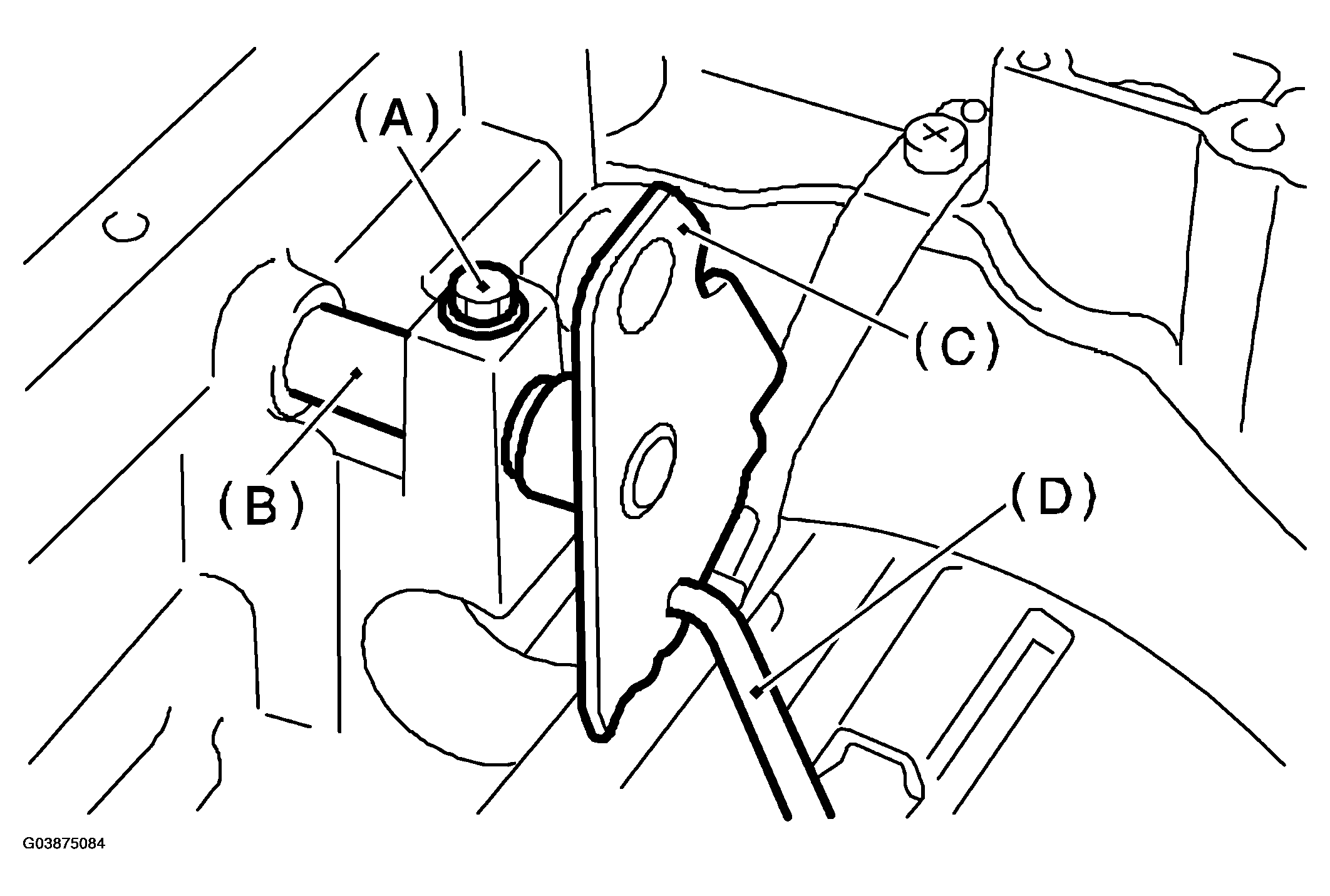

Fig 3: Installing Manual Plate And Parking Rod

Courtesy of SAAB-SCANIA OF AMERICA, INC.

Insert spring pin to manual plate.

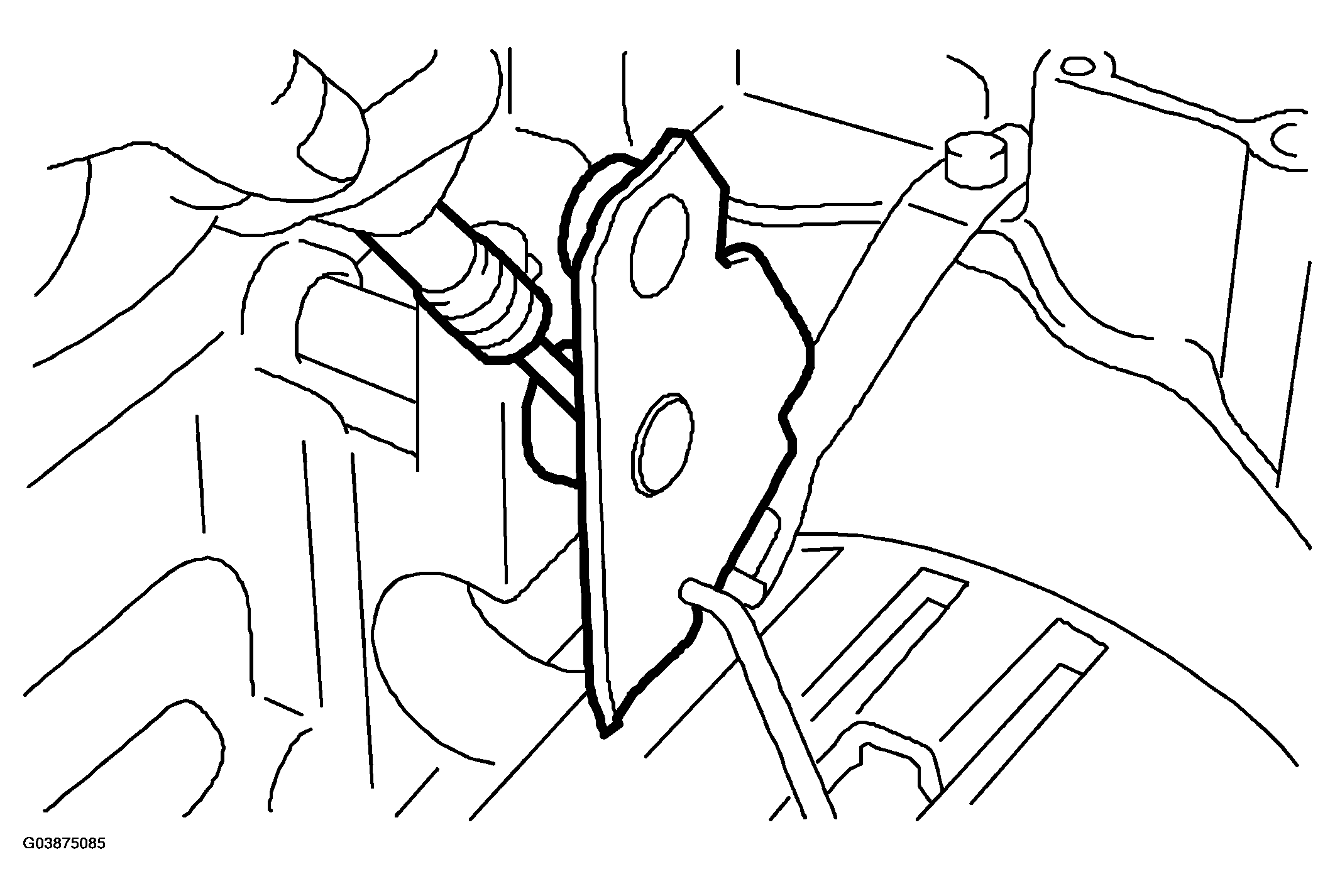

Fig 4: Inserting Spring Pin To Manual Plate

Courtesy of SAAB-SCANIA OF AMERICA, INC.

Install control valve assembly and oil pan.

Turn over the transmission case to its original position.

Install pitching stopper bracket.

Tightening torque:

41 Nm (4.2 kgf-m, 30.4 ft-lb)

Install inhibitor switch and adjust the inhibitor switch.

Insert inhibitor switch and transmission connector into stay.

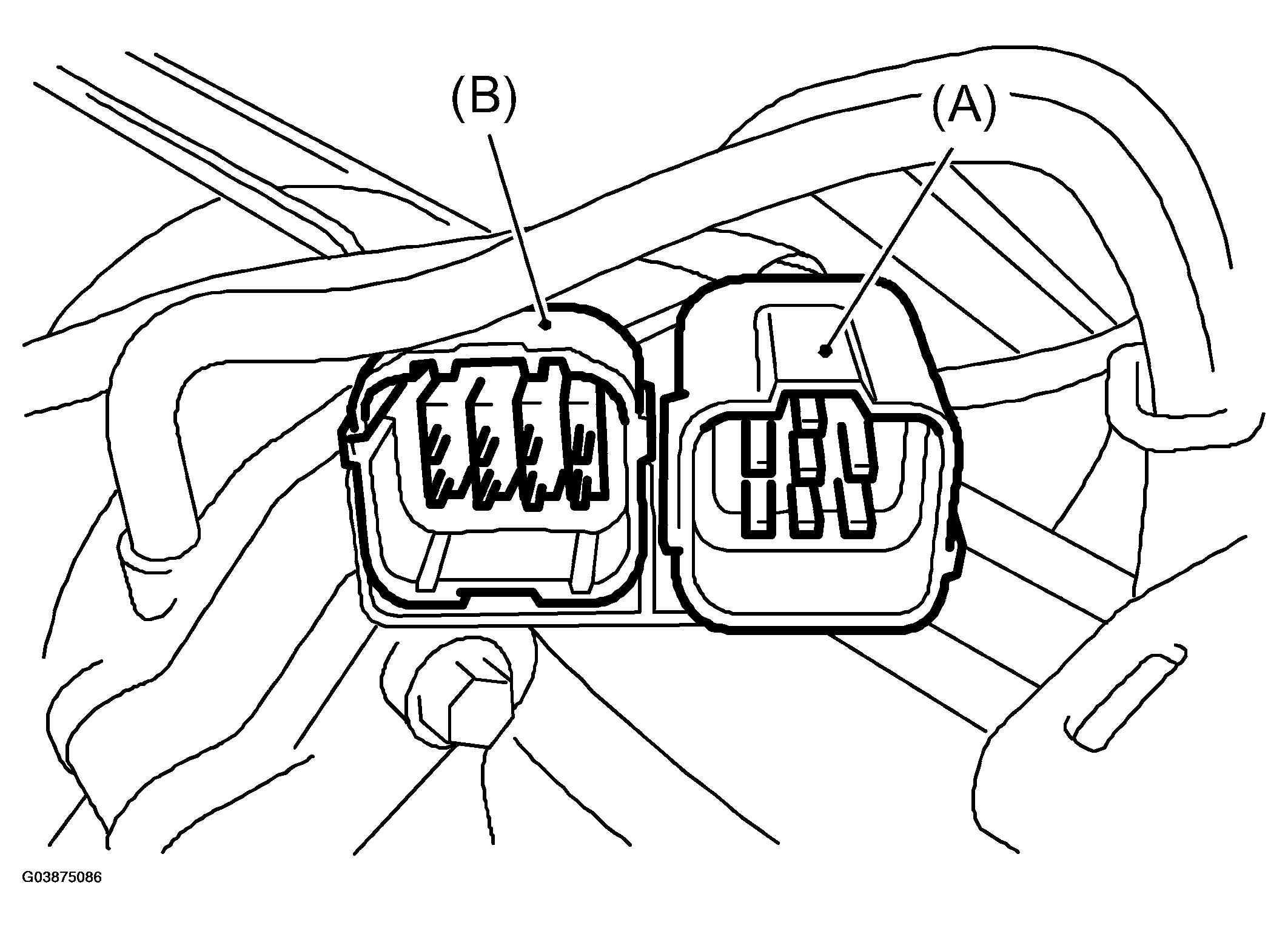

Fig 5: Inserting Inhibitor Switch And Transmission Connector Into Stay

Courtesy of SAAB-SCANIA OF AMERICA, INC.

Install air breather hose.

Insert the input shaft while turning lightly by hand and verify the protrusion amount.

Normal protrusion A:

50 - 55 mm (1.97 - 2.17 in)

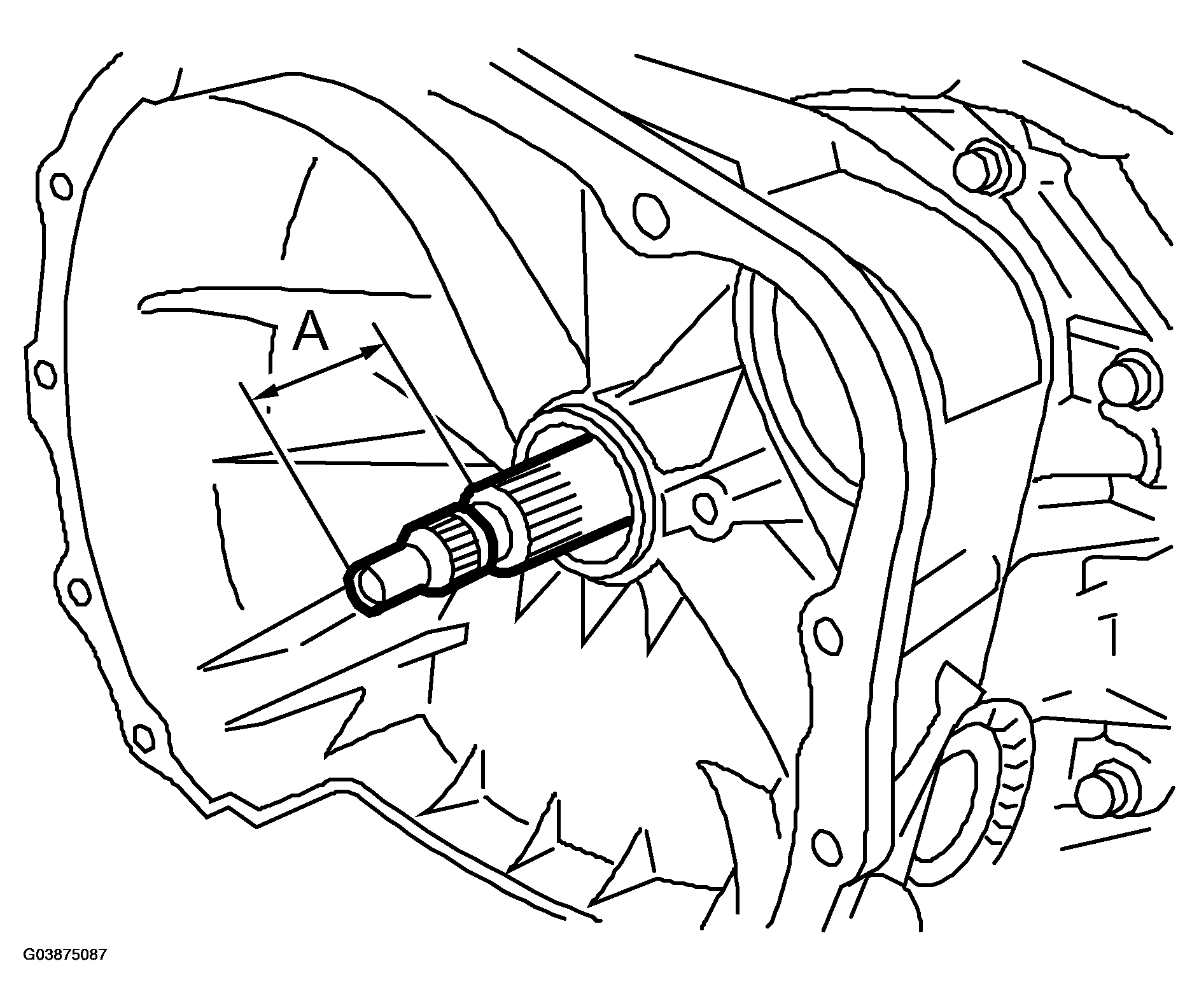

Fig 6: Inserting Input Shaft

Courtesy of SAAB-SCANIA OF AMERICA, INC.

Install the torque converter clutch assembly.

Install the transmission assembly to the vehicle.
