Transmission Control Module (TCM): Removal

Disconnect the ground cable from battery.

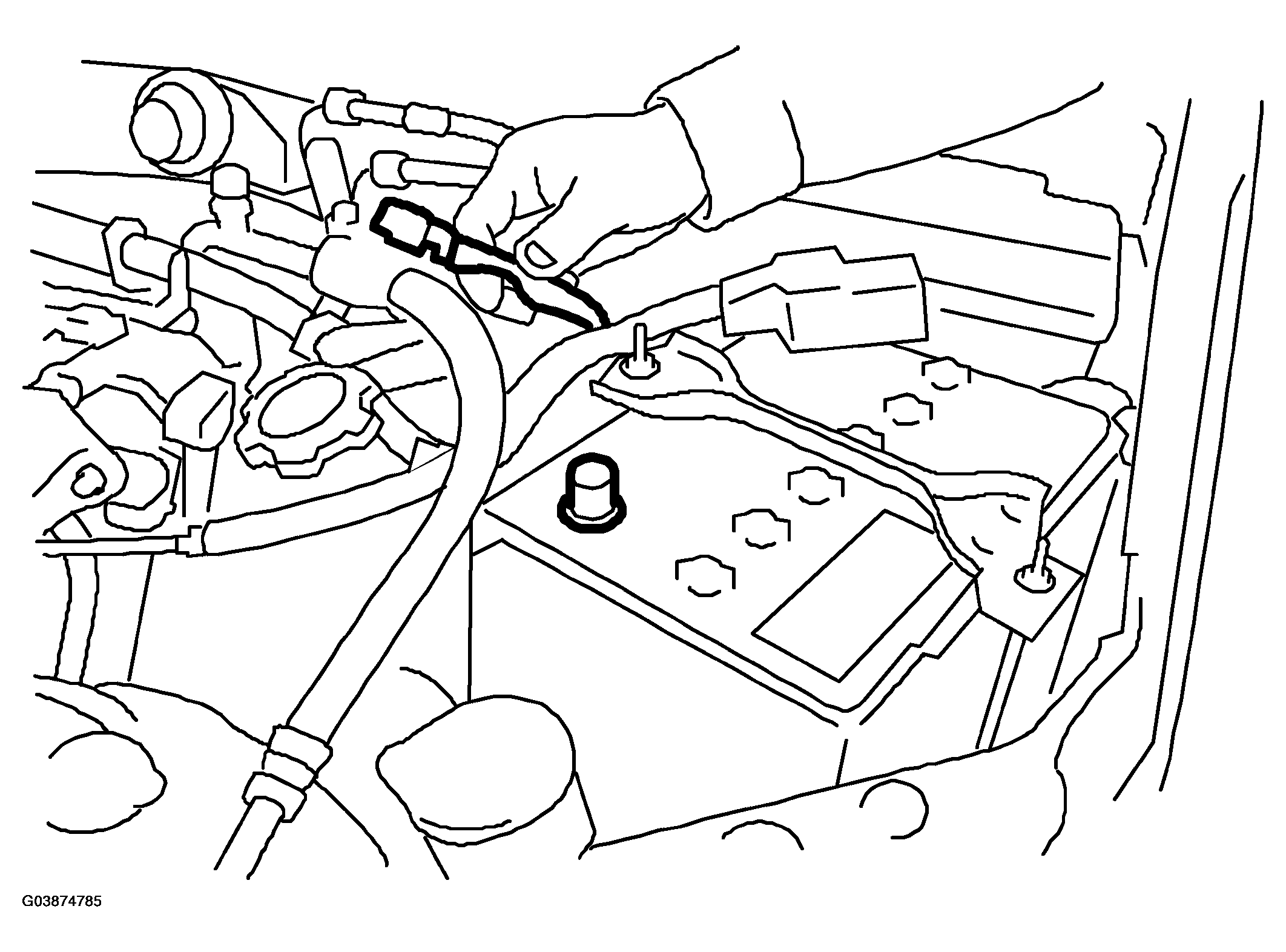

Fig 1: Disconnecting Ground Cable From Battery

Courtesy of SAAB-SCANIA OF AMERICA, INC.

Remove the lower cover and then disconnect the connector.

Remove the knee bolster.

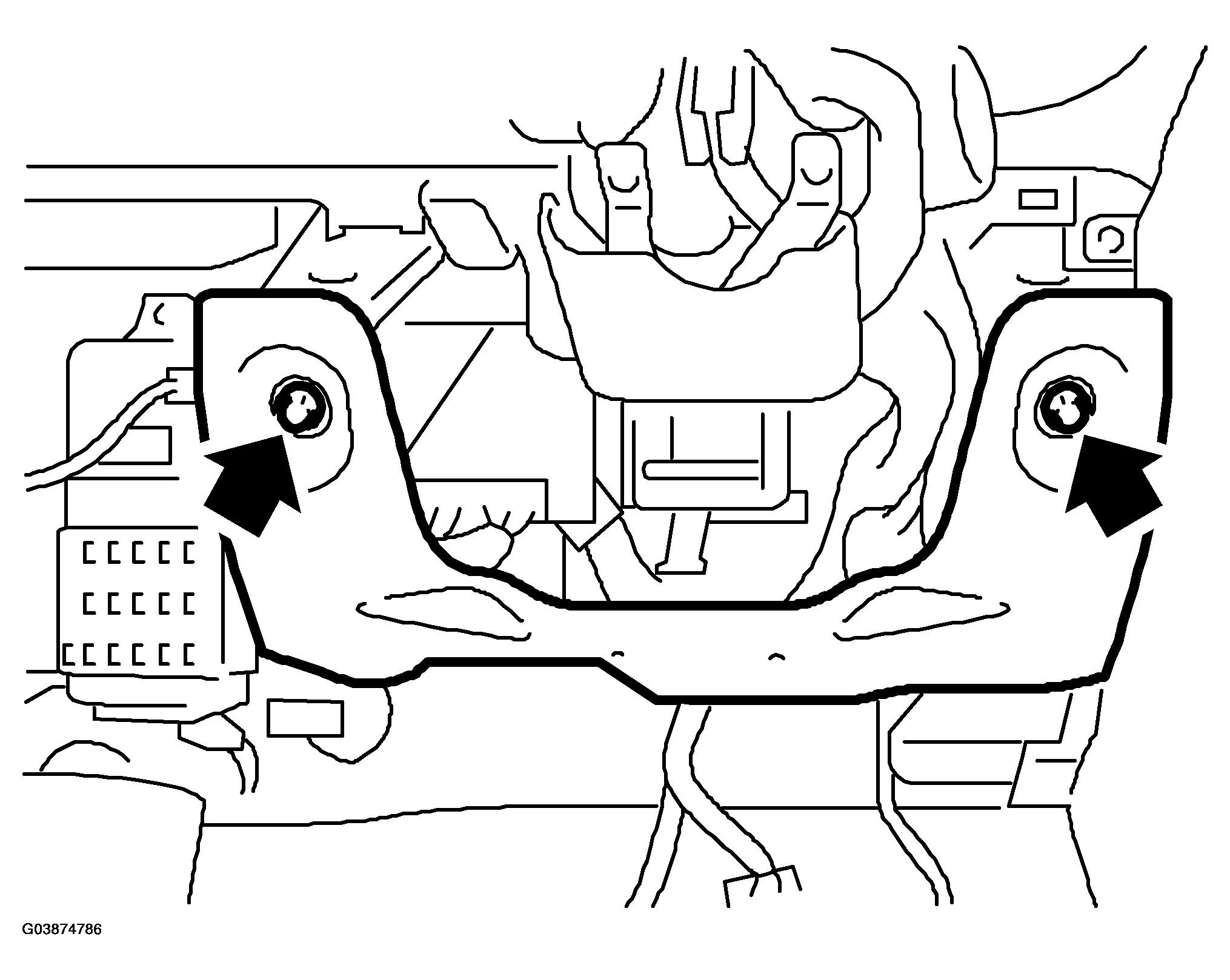

Fig 2: Removing Knee Bolster

Courtesy of SAAB-SCANIA OF AMERICA, INC.

Disconnect the connectors from TCM.

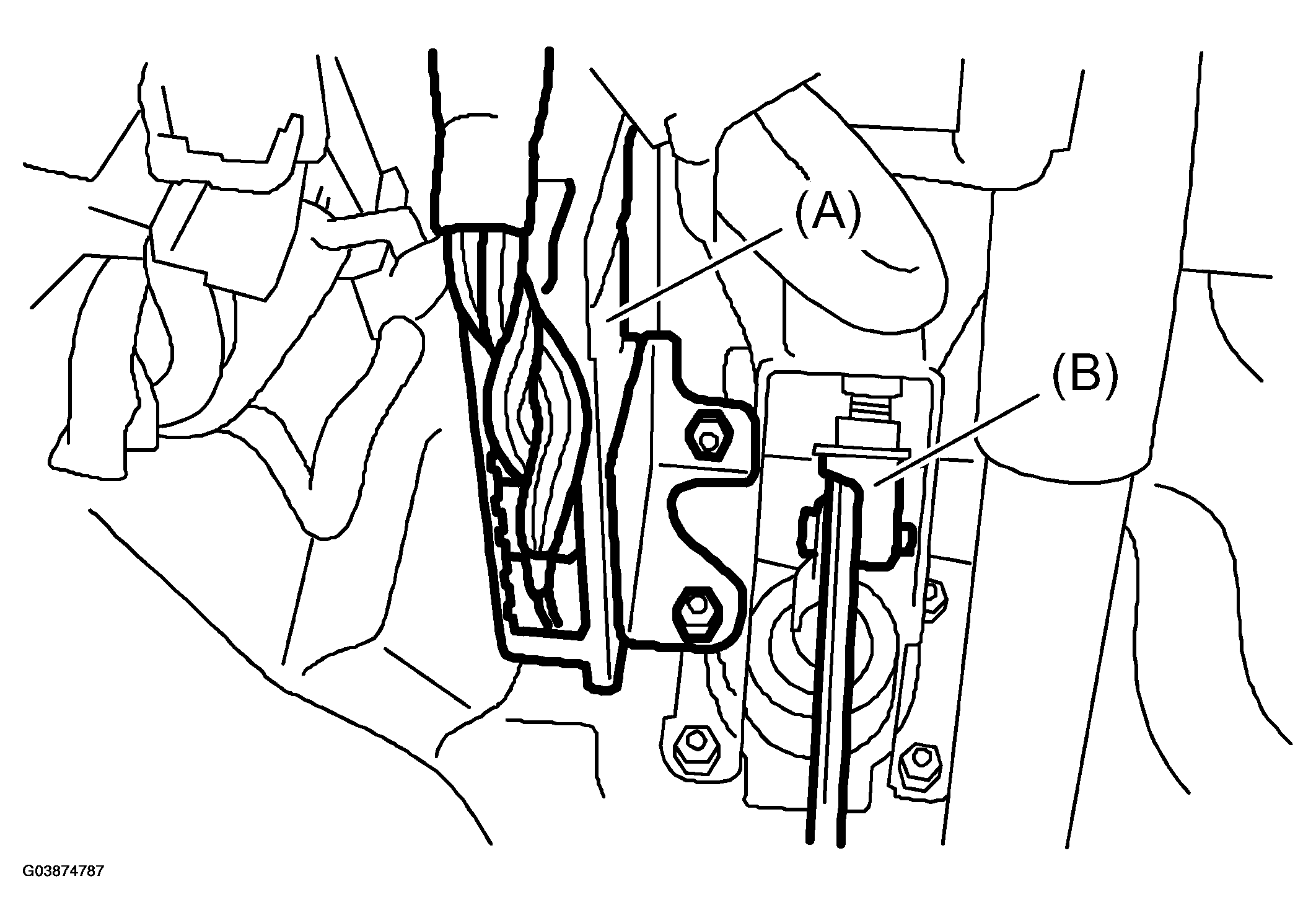

Fig 3: Disconnecting Connectors From TCM

Courtesy of SAAB-SCANIA OF AMERICA, INC.

Remove the TCM.
