Transmission Case And Control Device

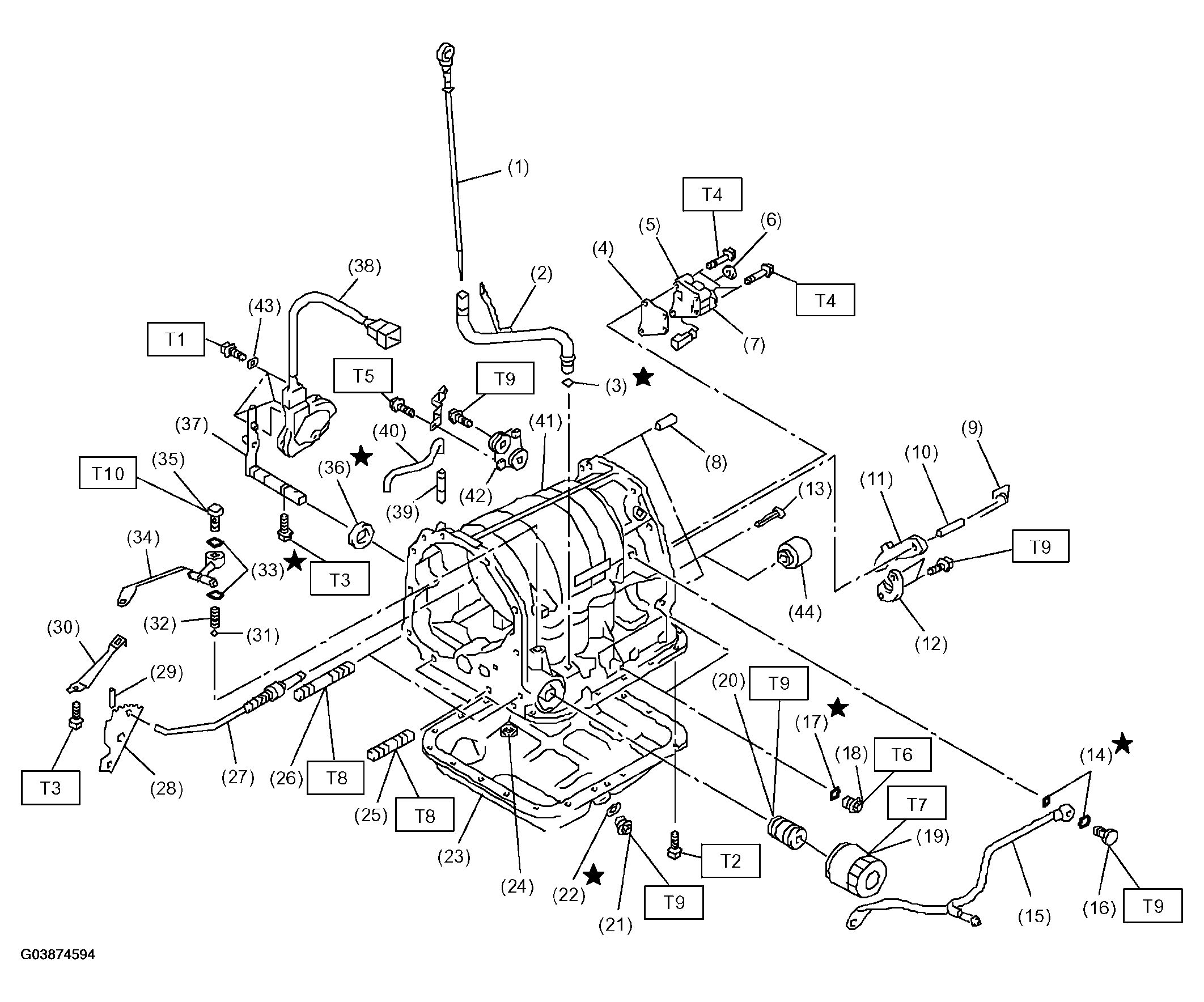

Fig 1: Identifying Components Transmission Case And Control Device
G03874594Courtesy of SAAB-SCANIA OF AMERICA, INC.
  1. ATF level gauge
  2. ATF charger pipe
  3. O-ring
  4. Transfer valve plate (Saab 9 -2X 2.0T Aero)
  5. Transfer valve ASSY (Saab 9 -2X 2.0T Aero)
  6. Transfer clutch seal (Saab 9 -2X 2.0T Aero)
  7. Transfer duty solenoid (Saab 9 -2X 2.0T Aero)
  8. Straight pin
  9. Return spring
  10. Shaft
  11. Parking pawl
  12. Parking support
  13. Inlet filter (Saab 9 -2X 2.0T Aero)
  14. Gasket
  15. Inlet pipe
  16. Union screw
  17. O-ring
  18. Test plug
  19. Oil filter (Saab 9-2X 2.0T Aero)
  20. Oil filter stud bolt
  21. Drain plug
  22. Gasket
  23. Oil pan
  24. Magnet
  25. Stud bolt (Short)
  26. Stud bolt (Long)
  27. Parking rod
  28. Manual plate
  29. Spring pin
  30. Detention spring
  31. Ball
  32. Spring
  33. Gasket
  34. Outlet pipe
  35. Union screw
  36. Oil seal
  37. Select lever
  38. Inhibitor switch ASSY
  39. Nipple
  40. Air breather hose
  41. Transmission case
  42. Plate ASSY
  43. Washer
  44. Transfer clutch seal (Saab 9-2X 2.5i Linear)

Tightening torque: Nm (kgfm, ft-lb)

T1: 3.5 (0.36, 2.6)

T2: 5 (0.5, 3.6)

T3: 6 (0.6, 4)

T4: 8 (0.8, 6)

T5: 12 (1.2, 8.7)

T6: 13 (1.3, 10)

T7: 14 (1.4, 10)

T8: 18 (1.8, 13)

T9: 25 (2.6, 18)

T10: 45 (4.6, 33)
