Transmission Mounting

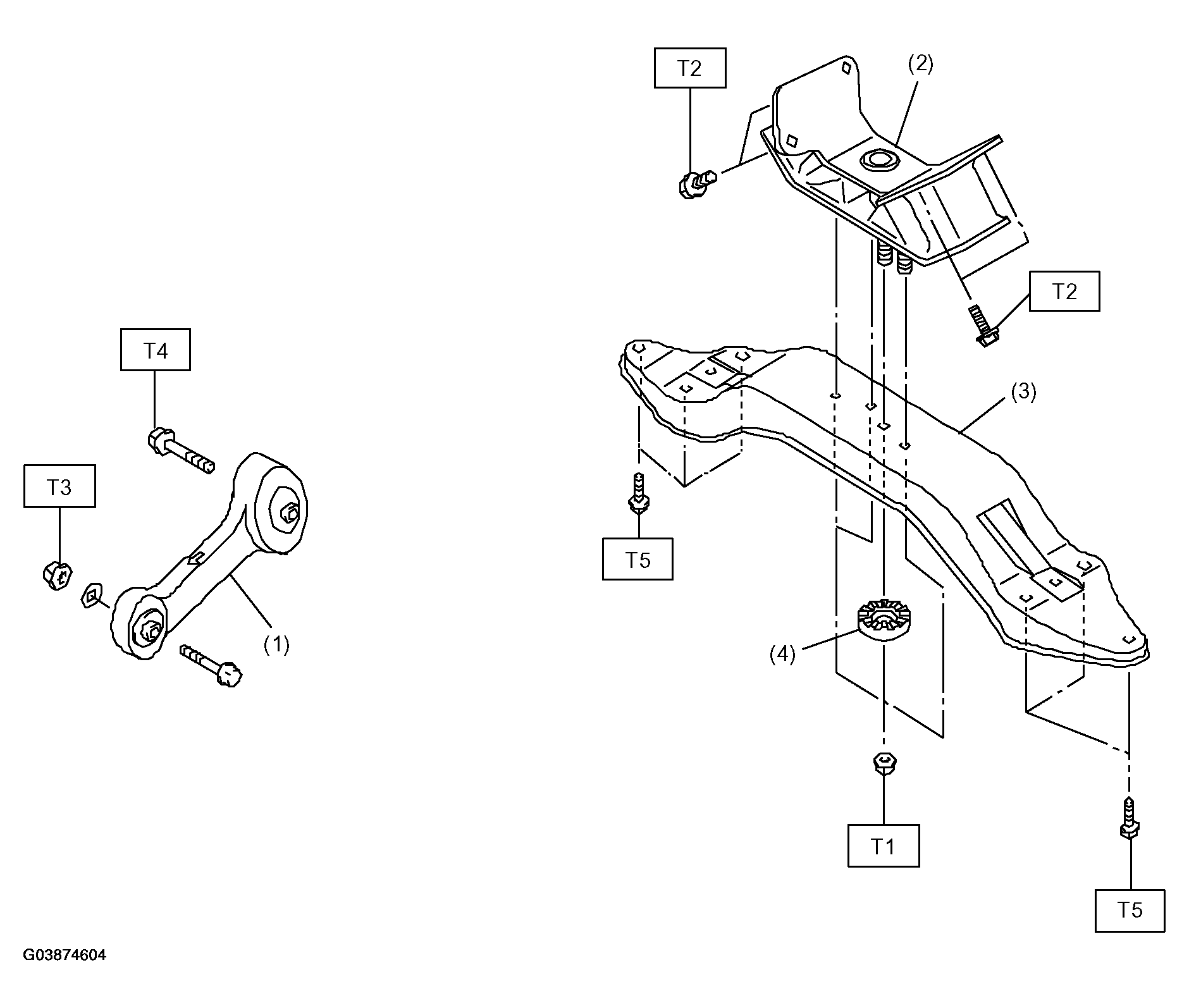

Fig 1: Identifying Components Transmission Mounting

Courtesy of SAAB-SCANIA OF AMERICA, INC.

1. Pitching stopper
2. Rear cushion rubber
3. Transmission rear crossmember
4. Stopper

Tightening torque: Nm (kgfm, ft-lb)

T1: 35 (3.6, 26)

T2: 39 (4.0, 29)

T3: 50 (5.1, 37)

T4: 58 (5.9, 43)

T5: 70 (7.1, 51)
