Select Lever: Removal

Set the vehicle on a lift.

Disconnect negative cable from battery.

Set the select lever to the "N" range.

Lift-up the vehicle.

Remove the rear exhaust pipe and muffler.

Remove the heat shield cover. (If equipped)

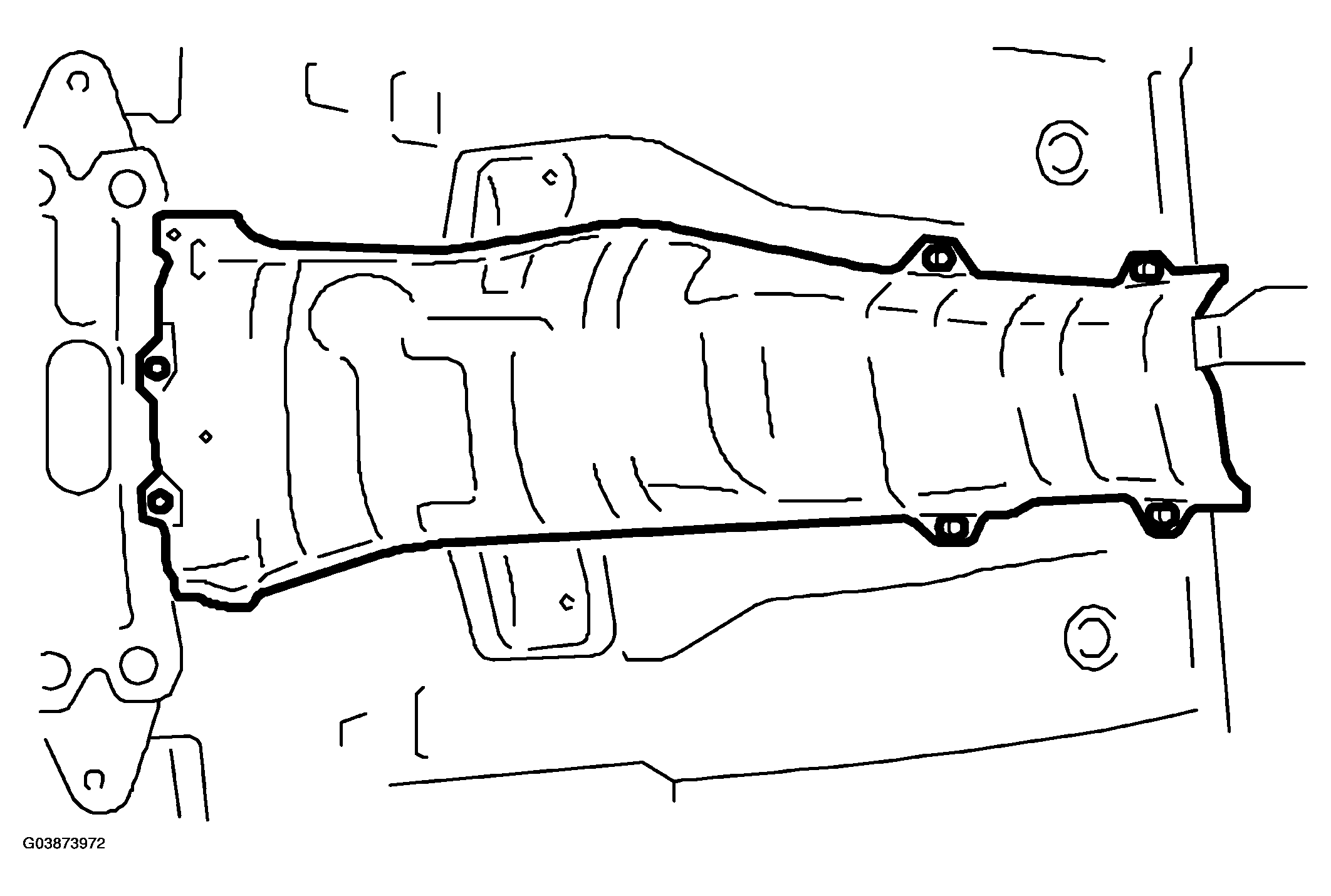

Fig 1: Removing Heat Shield Cover

Courtesy of SAAB-SCANIA OF AMERICA, INC.

Disconnect the cable from select lever, and then remove the cable bracket.

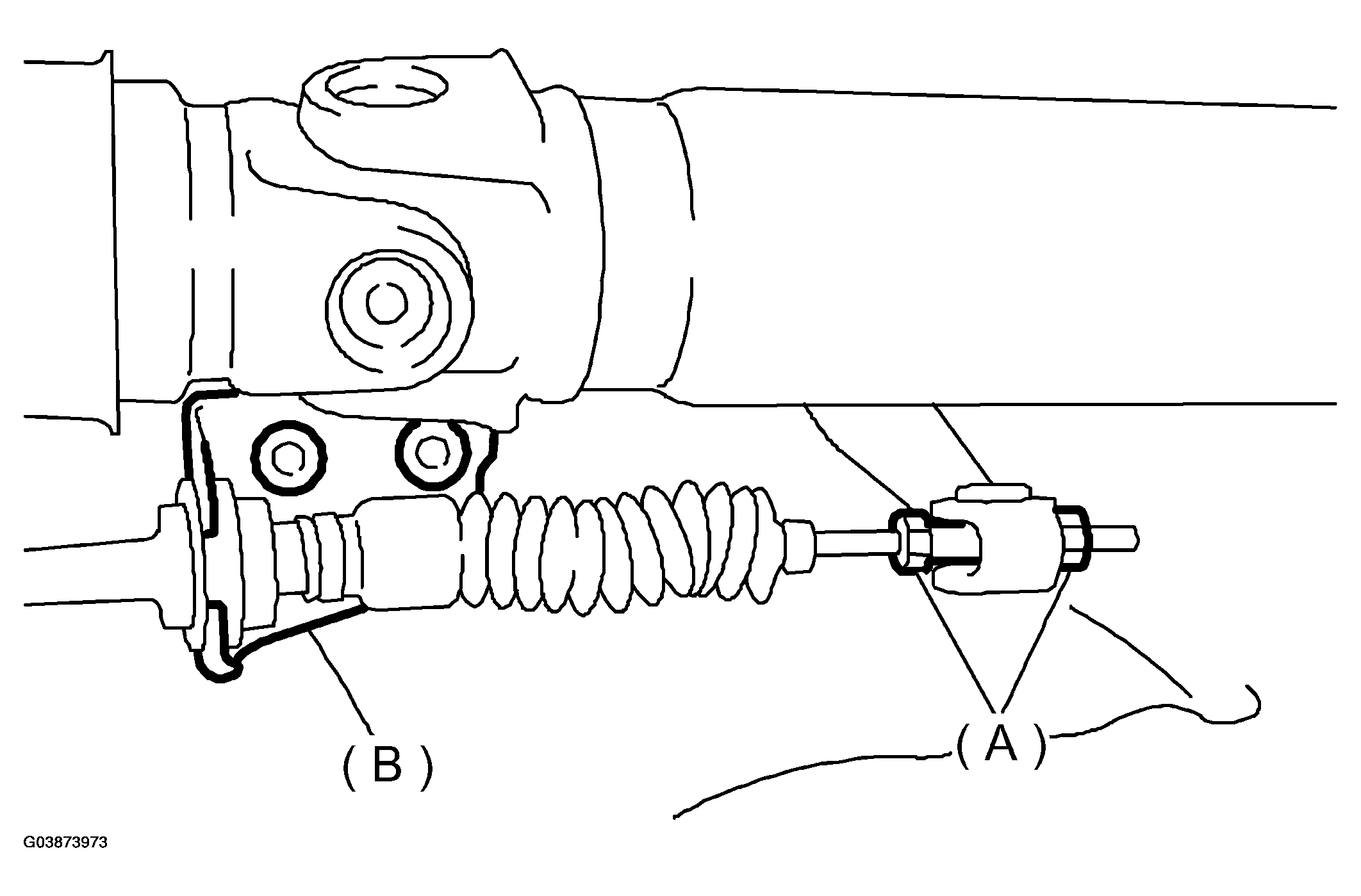

Fig 2: Removing Cable Bracket

Courtesy of SAAB-SCANIA OF AMERICA, INC.

Lower the vehicle.

Remove the console box.

Disconnect the connectors, then remove the four bolts to take out the select lever assembly from the body.

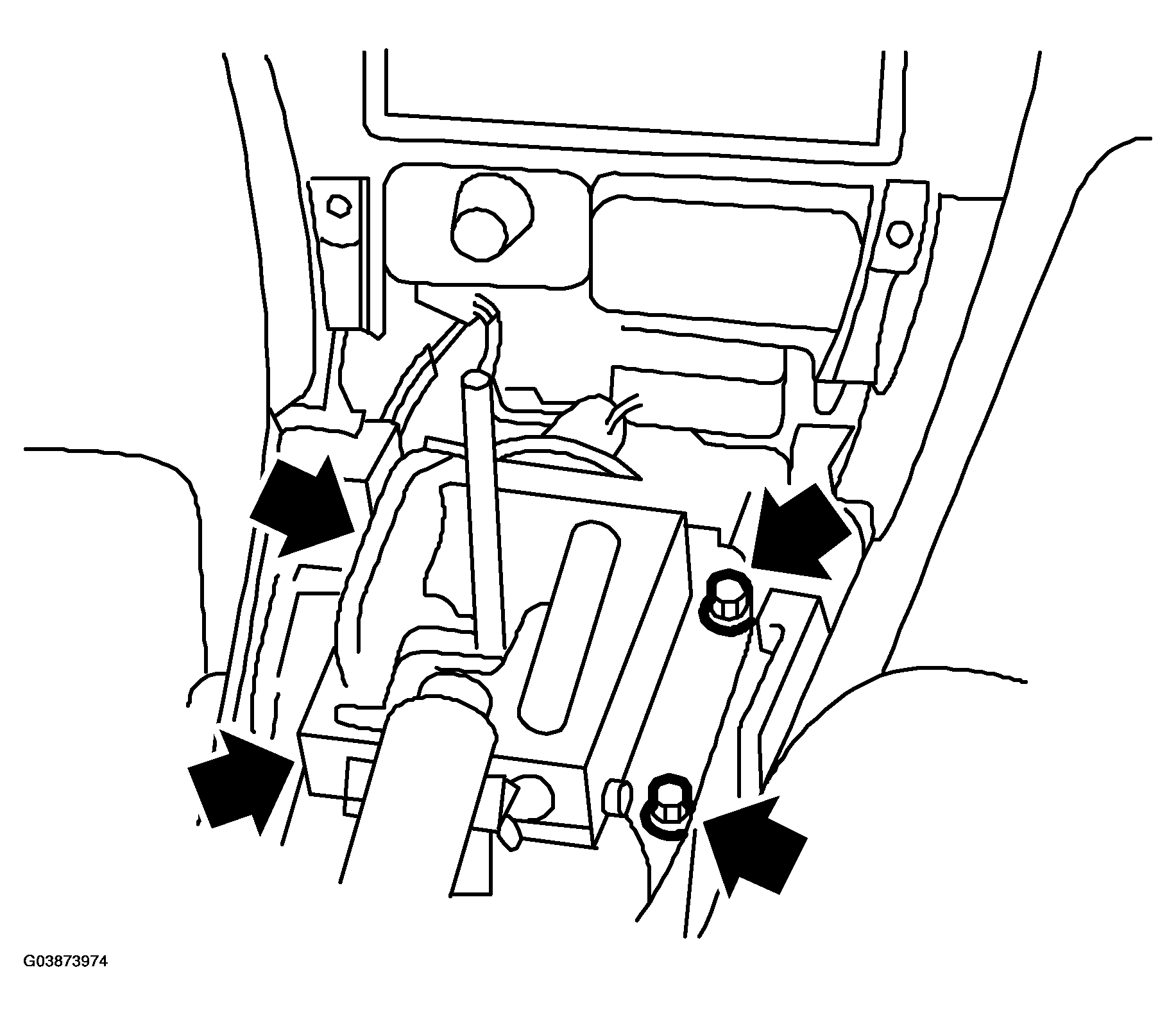

Fig 3: Removing Console Box Bolts

Courtesy of SAAB-SCANIA OF AMERICA, INC.
