Main components

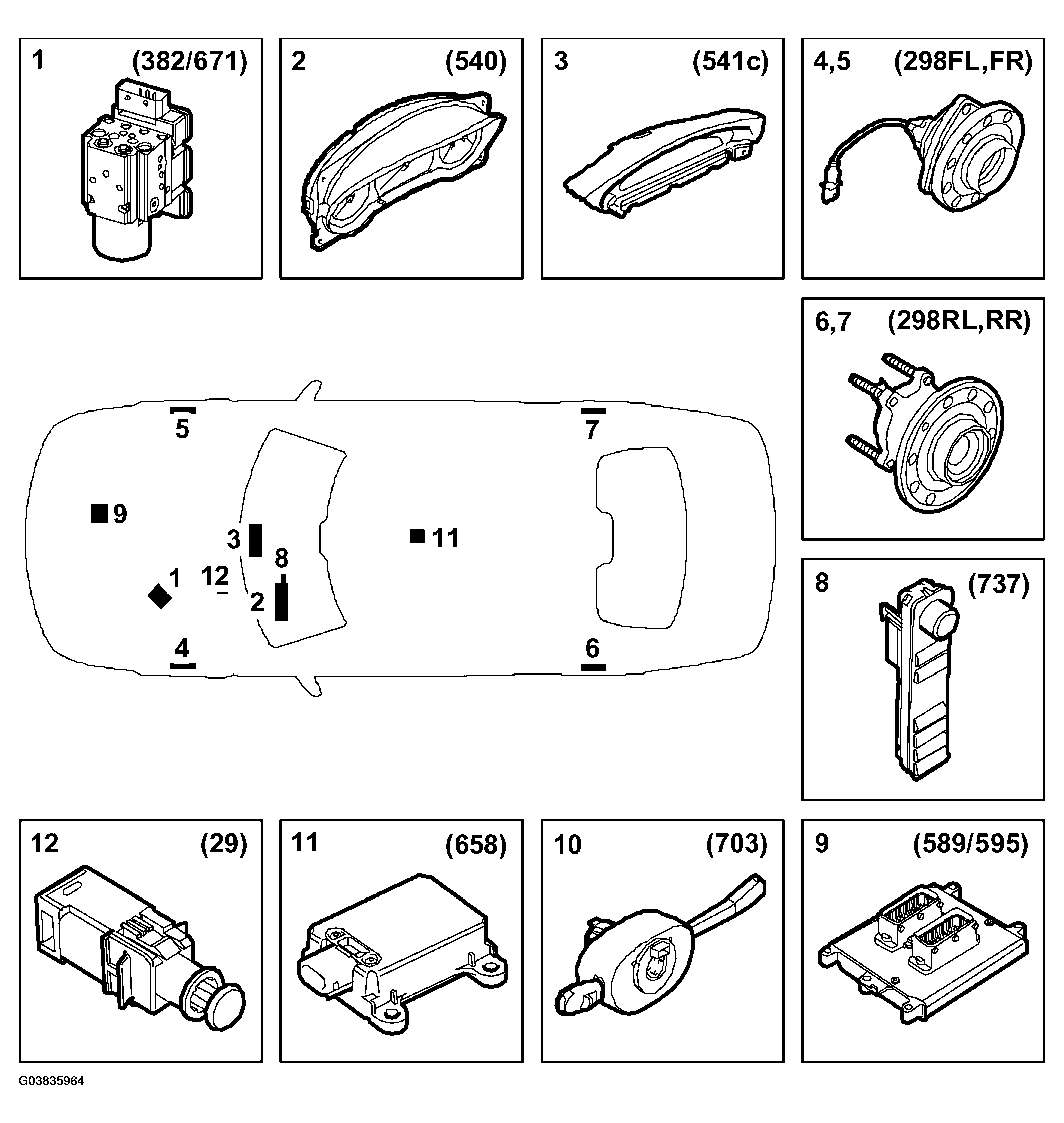

Fig 1: Identifying Main Components
G03835964Courtesy of SAAB-SCANIA OF AMERICA, INC.
  1. TCS control module (382)/ESP control module (671)
    • control module
    • valve housing
    • pump
  2. MIU (540)
    • ABS warning lamp
    • TCS or ESP indicator lamp
    • TCS OFF or ESP OFF warning lamp
    • Brake warning lamp (EBD fault)
  3. SID (541c)
    • Warning message, EBD fault
    • Warning message, ABS fault
    • Warning message, TCS fault
    • Warning message, ESP fault
  4. WHEEL SPEED SENSOR (298)  , front left (298FL)
  5. WHEEL SPEED SENSOR (298)  , front right (298FR)
  6. WHEEL SPEED SENSOR (298)  , rear left (298RL)
  7. WHEEL SPEED SENSOR (298)  , rear right (298RR)
  8. SID (737)
    • TCS or ESP ON/OFF
  9. Trionic T8 control module (589b)/EDC16 control module (595)
  10. Steering wheel angle integrated in CIM (657) - ESP only
  11. YAW SENSOR (658)  - ESP only
  12. Brake light switch (29)
