Main components

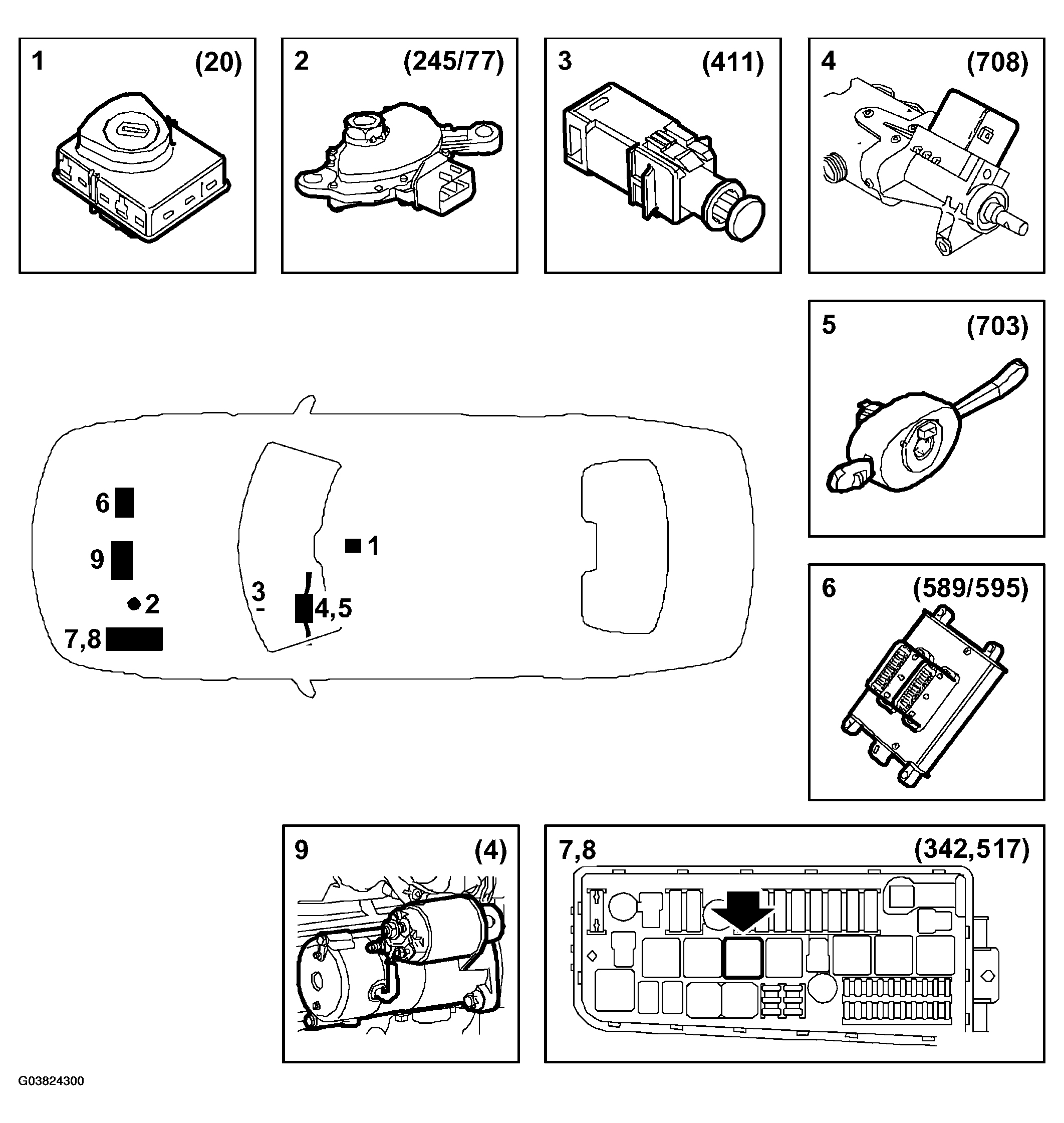

Fig 1: Identifying Main Components
G03824300Courtesy of SAAB-SCANIA OF AMERICA, INC.
  1. Unit, ignition switch, ISM (20)
  2. Transmission range switch/immobiliser switch, automatic (245/77)
  3. Switch, coupling, immobiliser (411)
  4. Steering Column Lock (708)
  5. Column Integration Module, CIM (703a)
  6. Engine Control Module (ECM)
  7. Relay, +50 (517)
  8. Underhood Electrical Centre, UEC (342)
  9. Starter motor (4)
