Home >> Saab >> 2005 >> 9-3 Linear, 2D Convertible, Automatic >> Repair and Diagnosis >> Engine Performance >> Fuel Delivery >> Fuel System >> Component Location >> Grounding point G34S >> Notes

Grounding point G34S: Notes

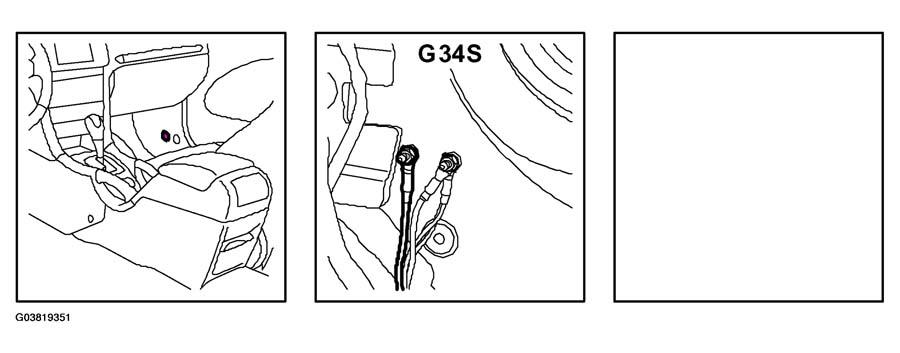

Fig 1: Locating Grounding Point G34S
G03819351Courtesy of SAAB-SCANIA OF AMERICA, INC.

Location:  On the floor below the right-hand A-pillar (BK/GN cable)

The grounding point is connected to the G43 grounding point via crimp connectors J108 and J80.
