Home >> Saab >> 2005 >> 9-3 Linear, 2D Convertible, Automatic >> Repair and Diagnosis >> Engine Performance >> TRIONIC T8 Fuel Control System >> Component location >> Crimp J37, engine harness, Trionic >> Notes

Crimp J37, engine harness, Trionic: Notes

Location:  Approx. 260 mm from branching of crankshaft sensor towards the engine control module

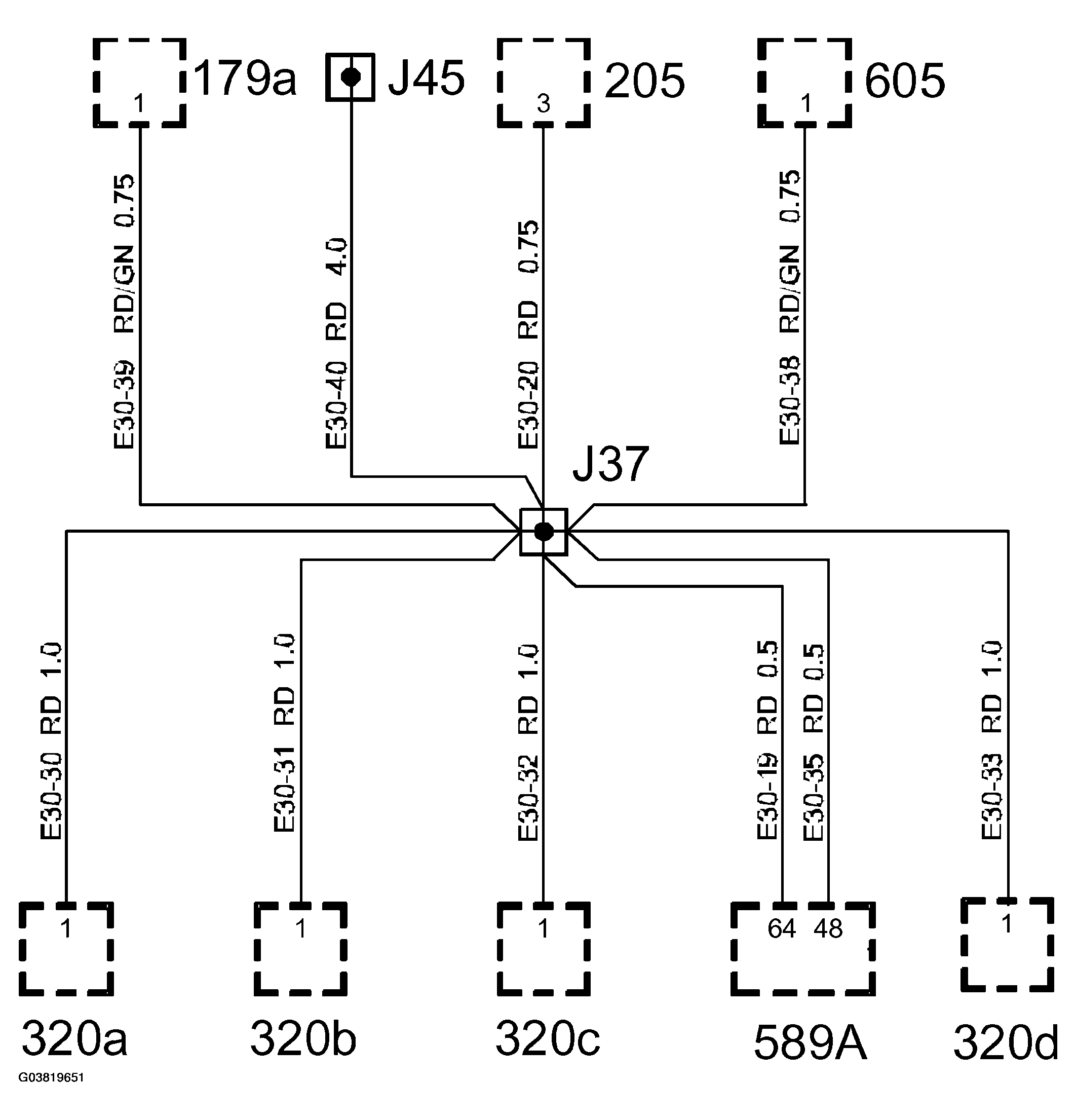

Fig 1: Identifying Engine Harness Trionic - Crimp J37
G03819651Courtesy of SAAB-SCANIA OF AMERICA, INC.
