Home >> Saab >> 2005 >> 9-3 Linear, 2D Convertible, Automatic >> Repair and Diagnosis >> Engine Performance >> TRIONIC T8 Fuel Control System >> Fault diagnosis, symptoms >> Check Engine lamp, faulty function >> Notes

Check Engine lamp, faulty function: Notes

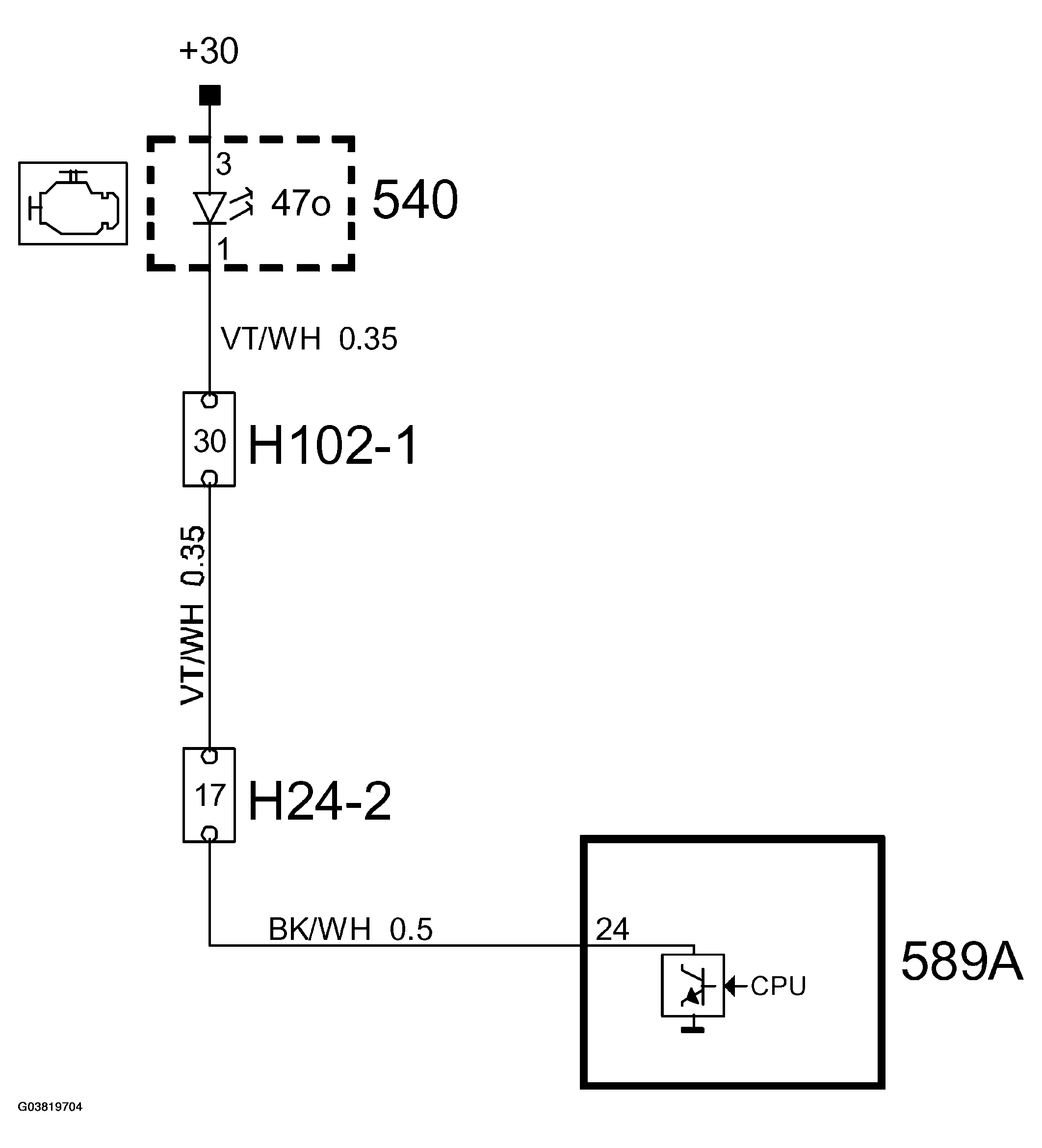

Fig 1: Identifying Circuit Diagram - Engine Lamp

G03819704

Courtesy of SAAB-SCANIA OF AMERICA, INC.
