Main components

  1. Front seat-belt with belt tensioner (236D, 236P)

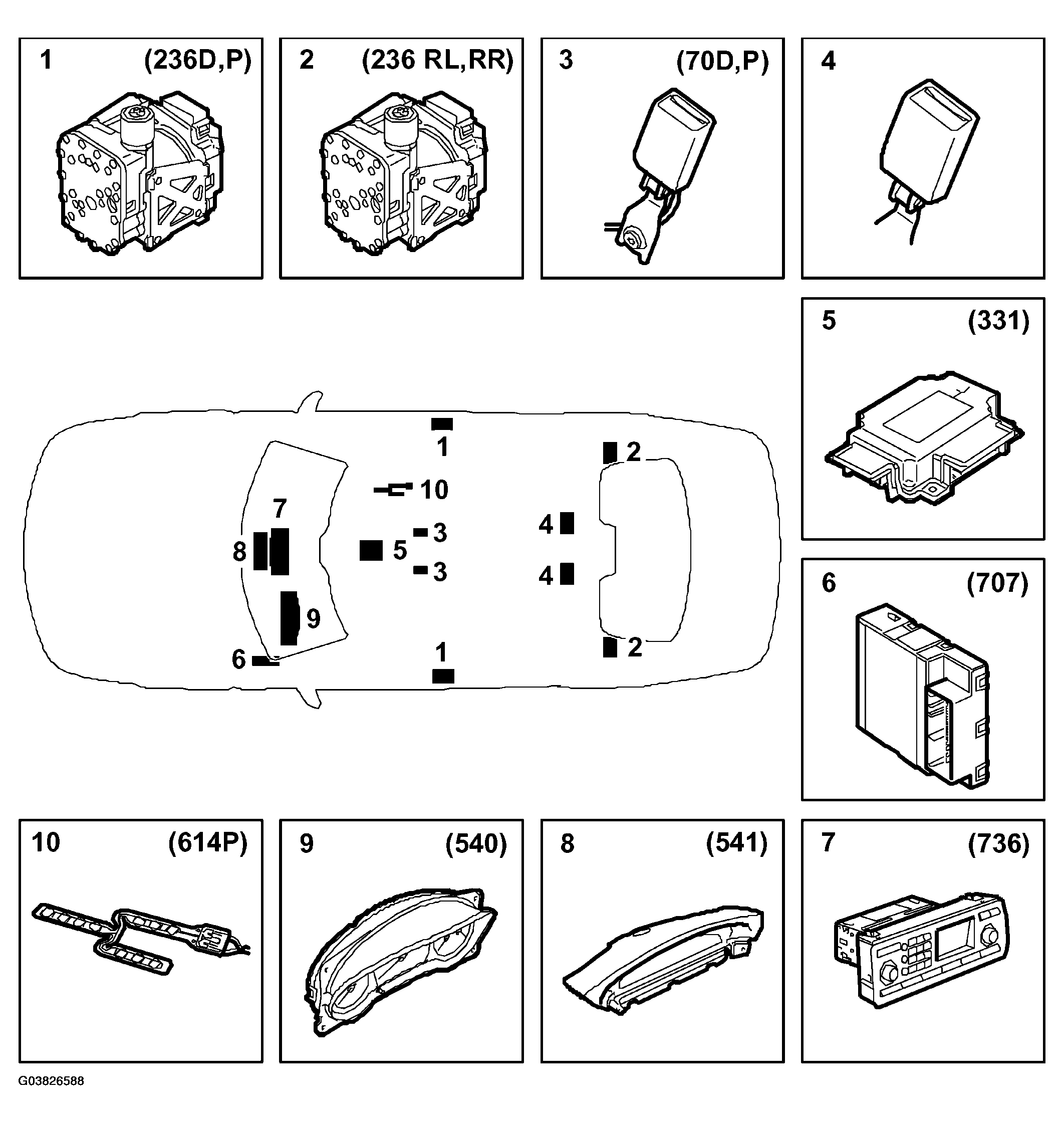

    Fig 1: Identifying Front Seat-Belt With Belt Tensioner (236D, 236P) Components
    G03826588Courtesy of SAAB-SCANIA OF AMERICA, INC.
  2. Rear seatbelt with belt pretensioner (outer seats, CV) (236RL, 236RR)
  3. Front seat-belt buckle sensor (70D, 70P)
  4. Rear seat-belt buckle
  5. Airbag control module (331)
  6. Control module, BCM (707)
  7. ICM (736)
  8. SID (541)
  9. Main instrument display panel, MIU (540)
  10. Sensor, loaded seat cushion, front passenger seat (614P)
