To remove

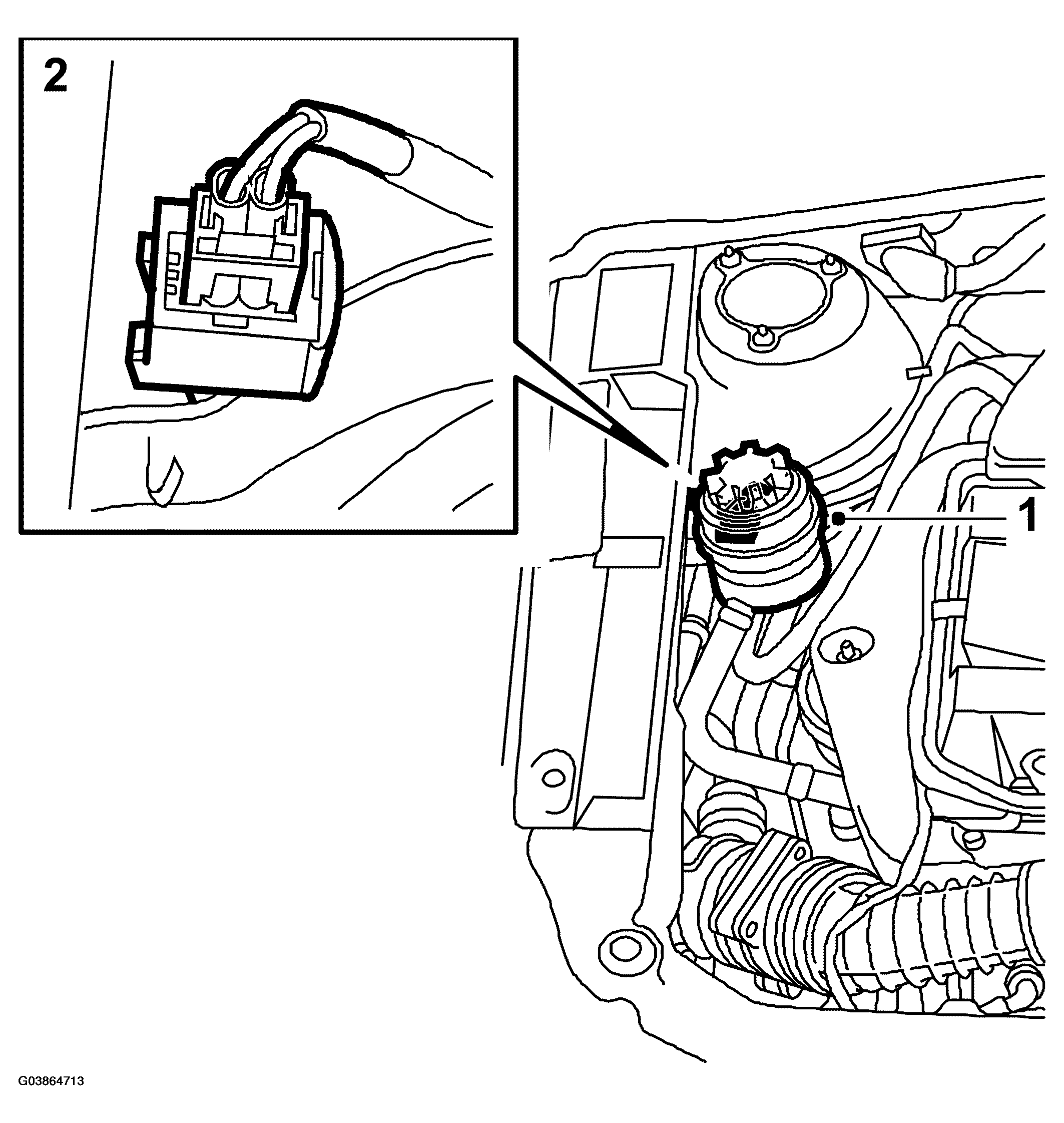

Fig 1: Illustration For Step 1 And 2
G03864713Courtesy of SAAB-SCANIA OF AMERICA, INC.
  1. Remove the oil reservoir. Leave the hoses in place.
  2. Depress the locking tab on the connector and remove it from the holder.

    Unplug the connector.

  3. Raise the car and remove the wheel.

    Clean the area round the wheel sensor using a soft wire brush.

  4. Undo the wheel sensor retaining bolt and remove the wheel sensor.

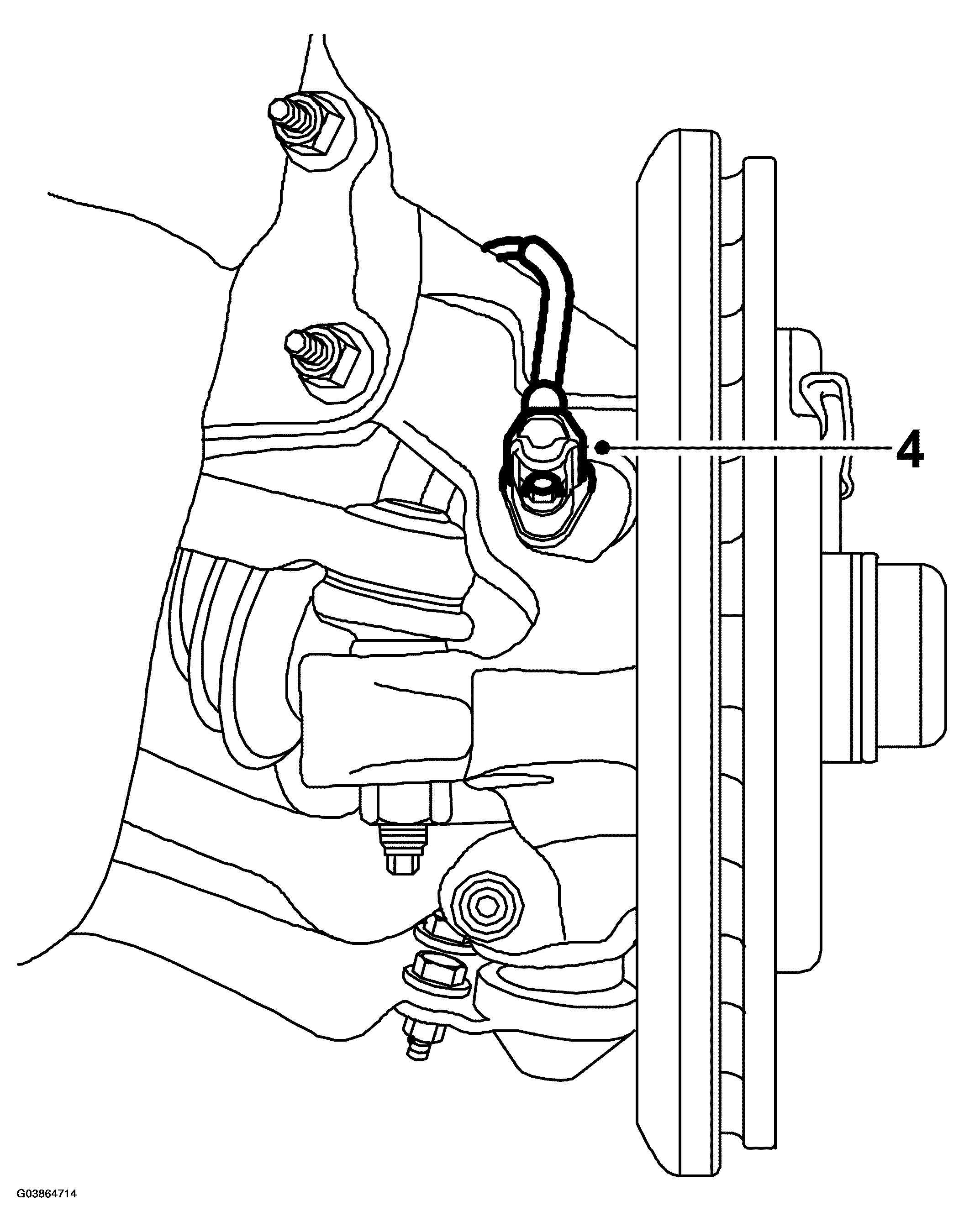

    Fig 2: Illustration For Step 4
    G03864714Courtesy of SAAB-SCANIA OF AMERICA, INC.
  5. Remove the grommet and withdraw the lead.

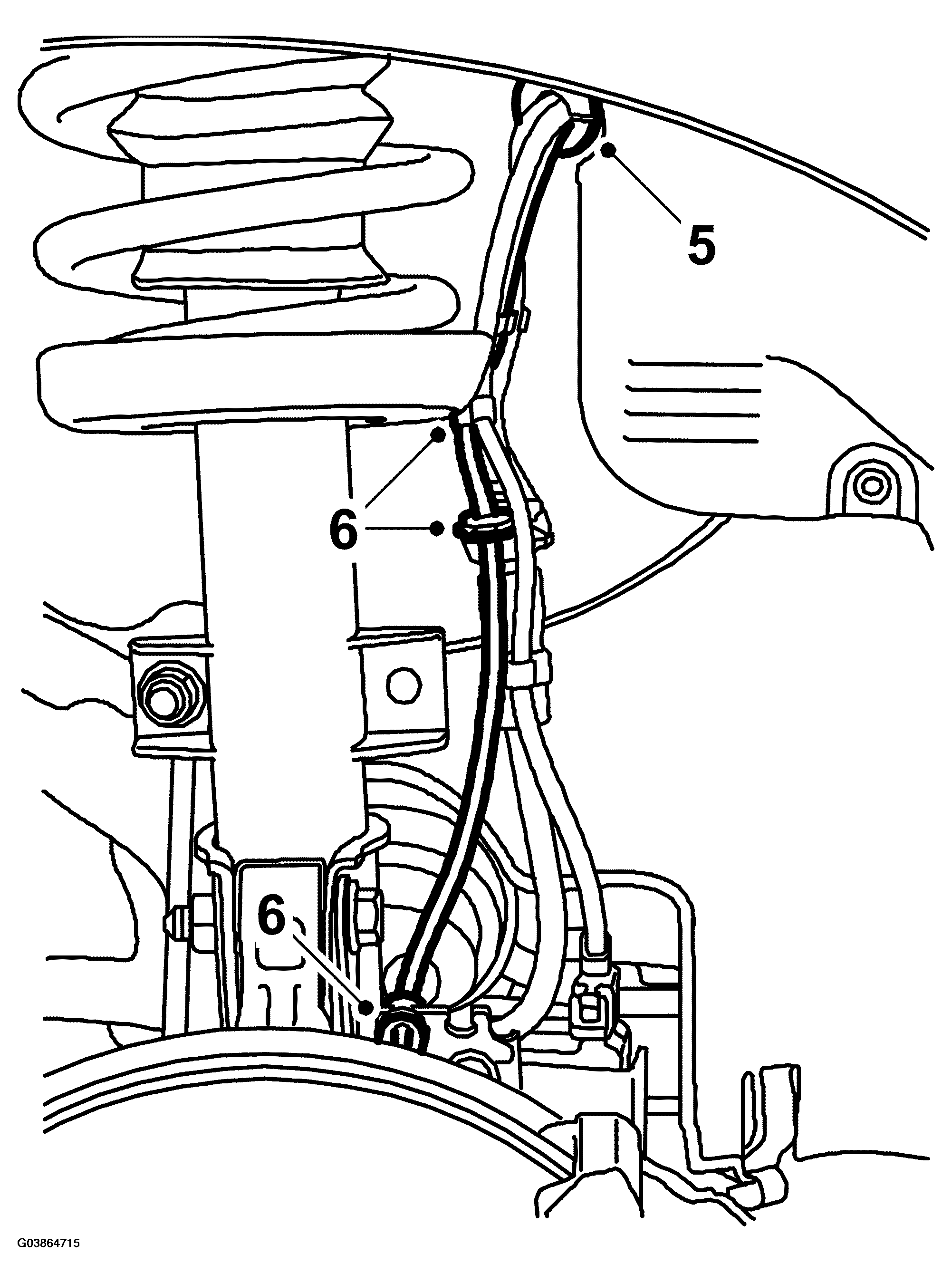

    Fig 3: Illustration For Step 5 And 6
    G03864715Courtesy of SAAB-SCANIA OF AMERICA, INC.
  6. Detach the lead from the clips and lift out the sensor.
