Main components

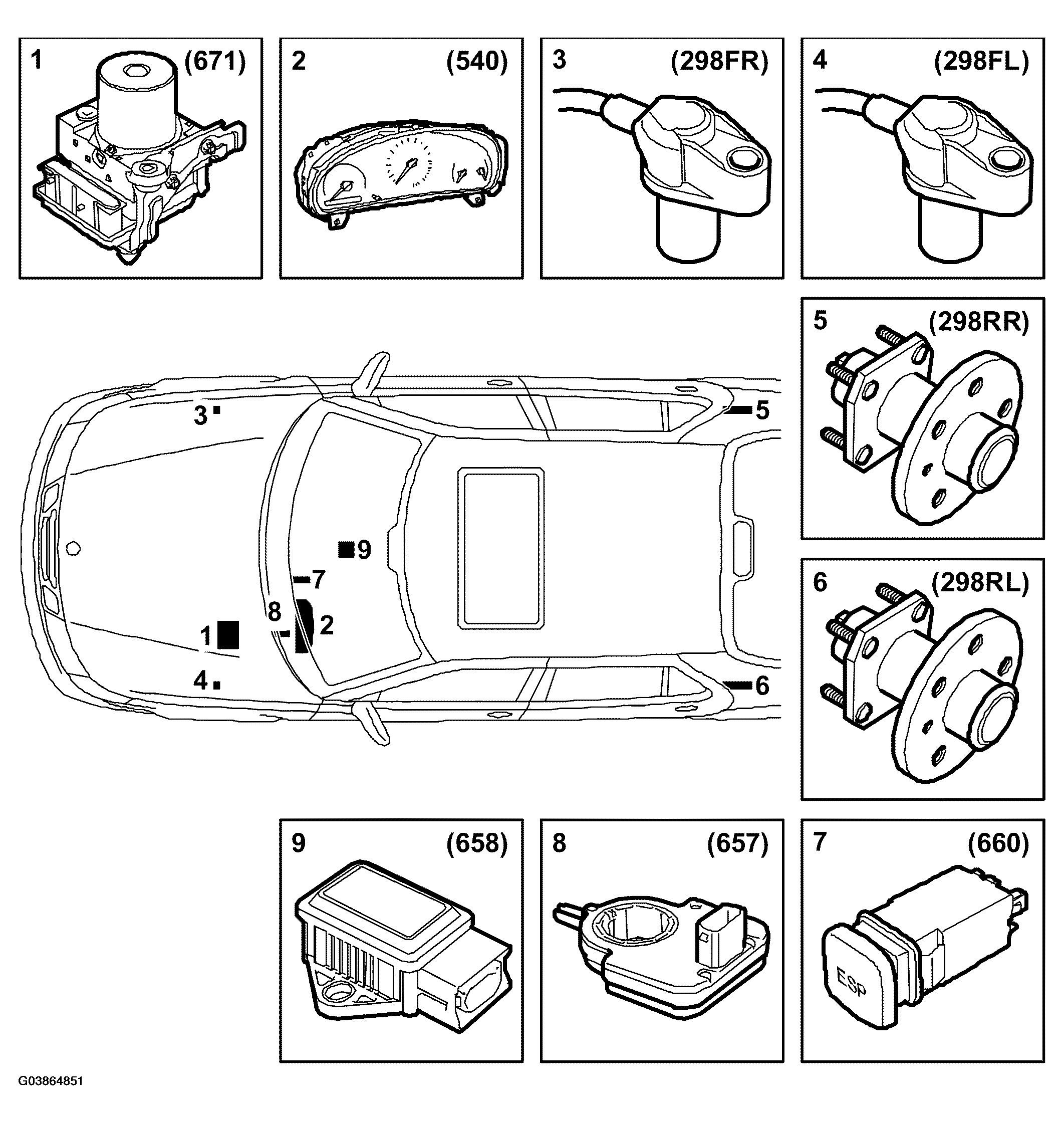

Fig 1: Technical Description - Main Components
G03864851Courtesy of SAAB-SCANIA OF AMERICA, INC.
  1. ESP control module (671)
  2. ESP OFF indicator lamp, TCS/ESP indicator lamp (540)
  3. WHEEL SPEED SENSOR, FRONT RIGHT  (298FR)
  4. WHEEL SPEED SENSOR, FRONT LEFT  (298FL)
  5. WHEEL SPEED SENSOR, REAR RIGHT  (298RR)
  6. WHEEL SPEED SENSOR, REAR RIGHT  (298RL)
  7. ESP ON/OFF SWITCH  (660)
  8. STEERING WHEEL ANGLE SENSOR  (657)
  9. Yaw rate sensor (658)
