Component Location Graphics

NOTE: Figures may show multiple component locations. Refer to appropriate table for proper figure references.

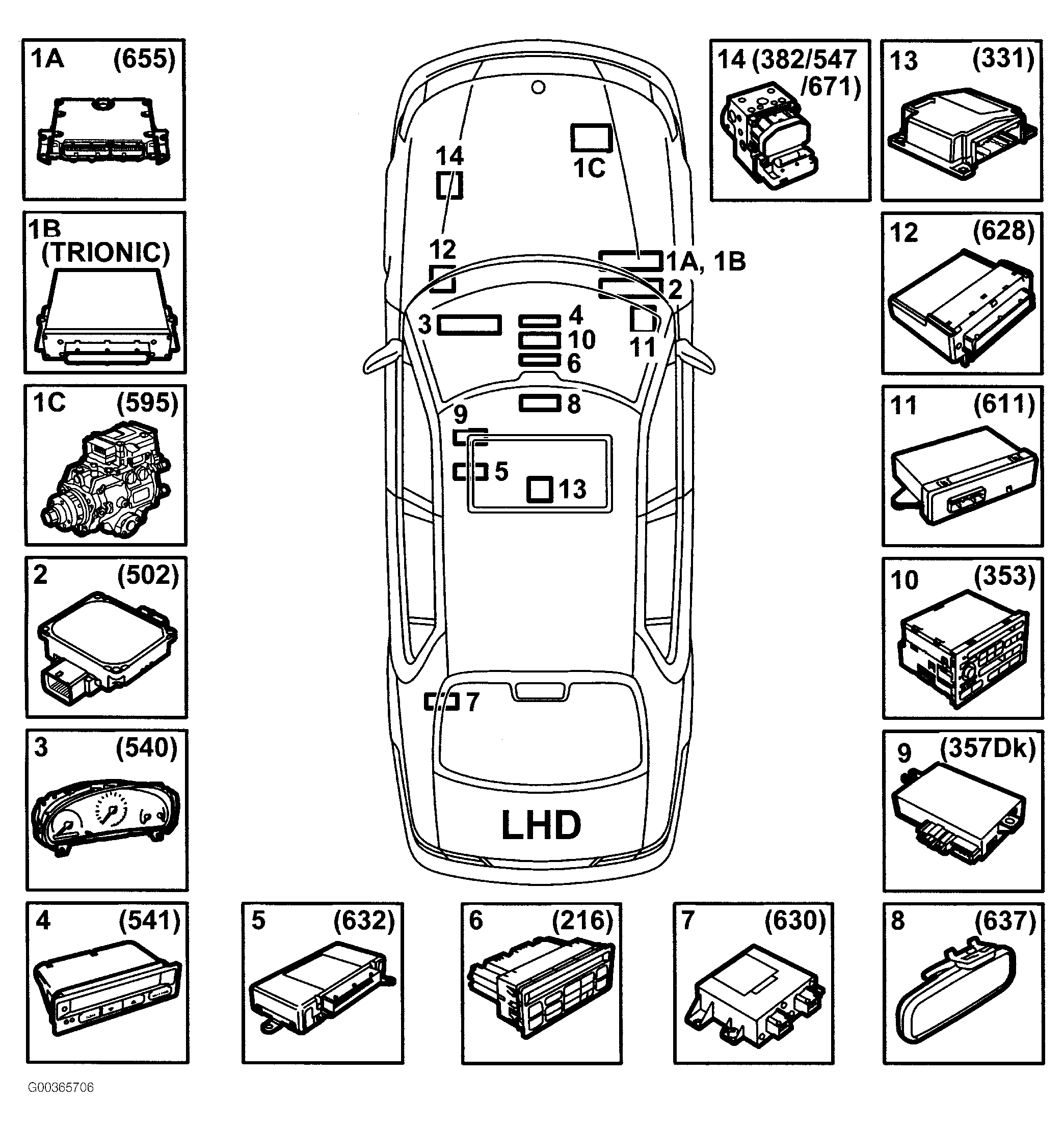

Fig 1: Vehicle Overview

Courtesy of SAAB-SCANIA OF AMERICA, INC.

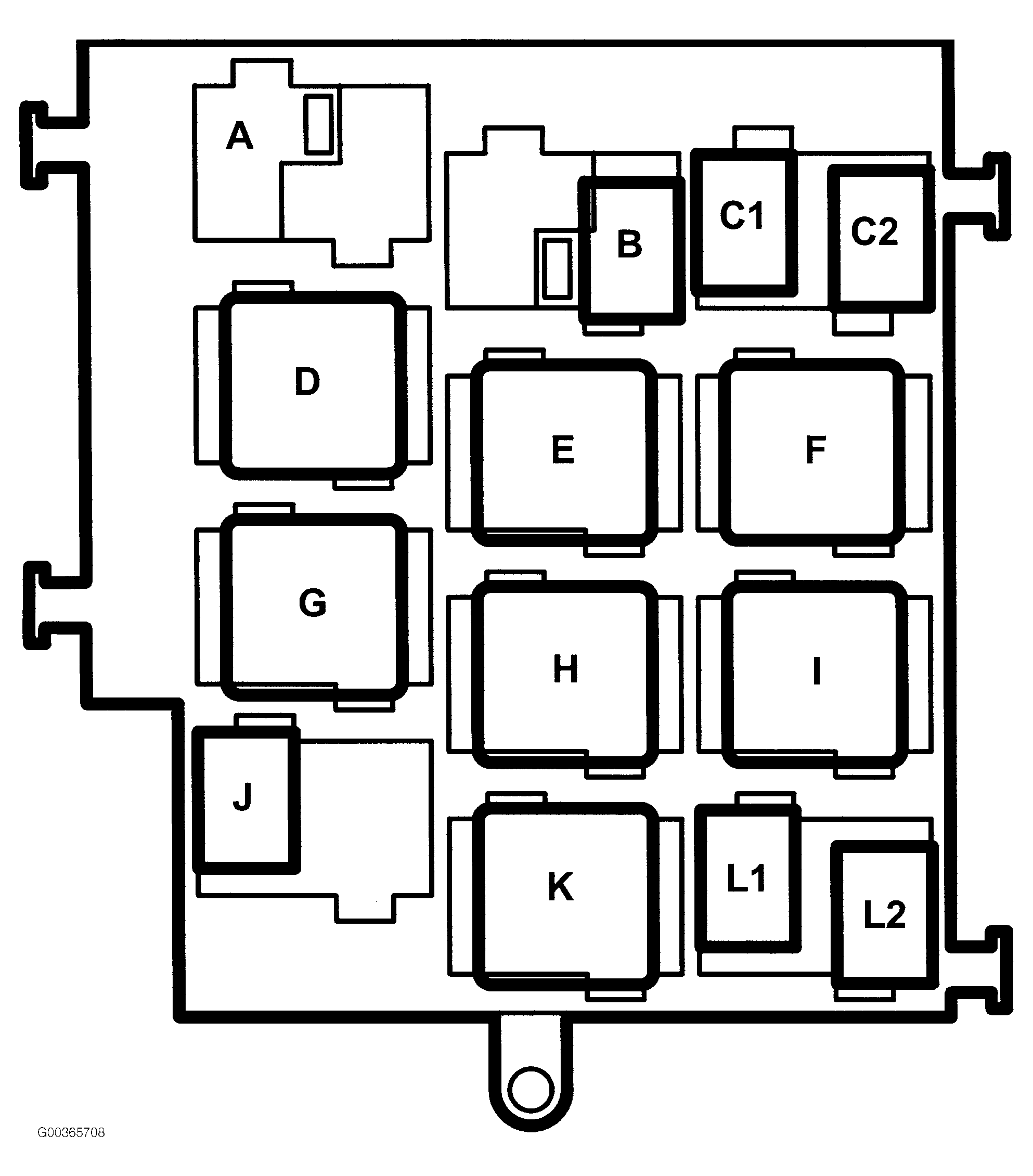

Fig 2: Engine Bay Main Relay Box

Courtesy of SAAB-SCANIA OF AMERICA, INC.

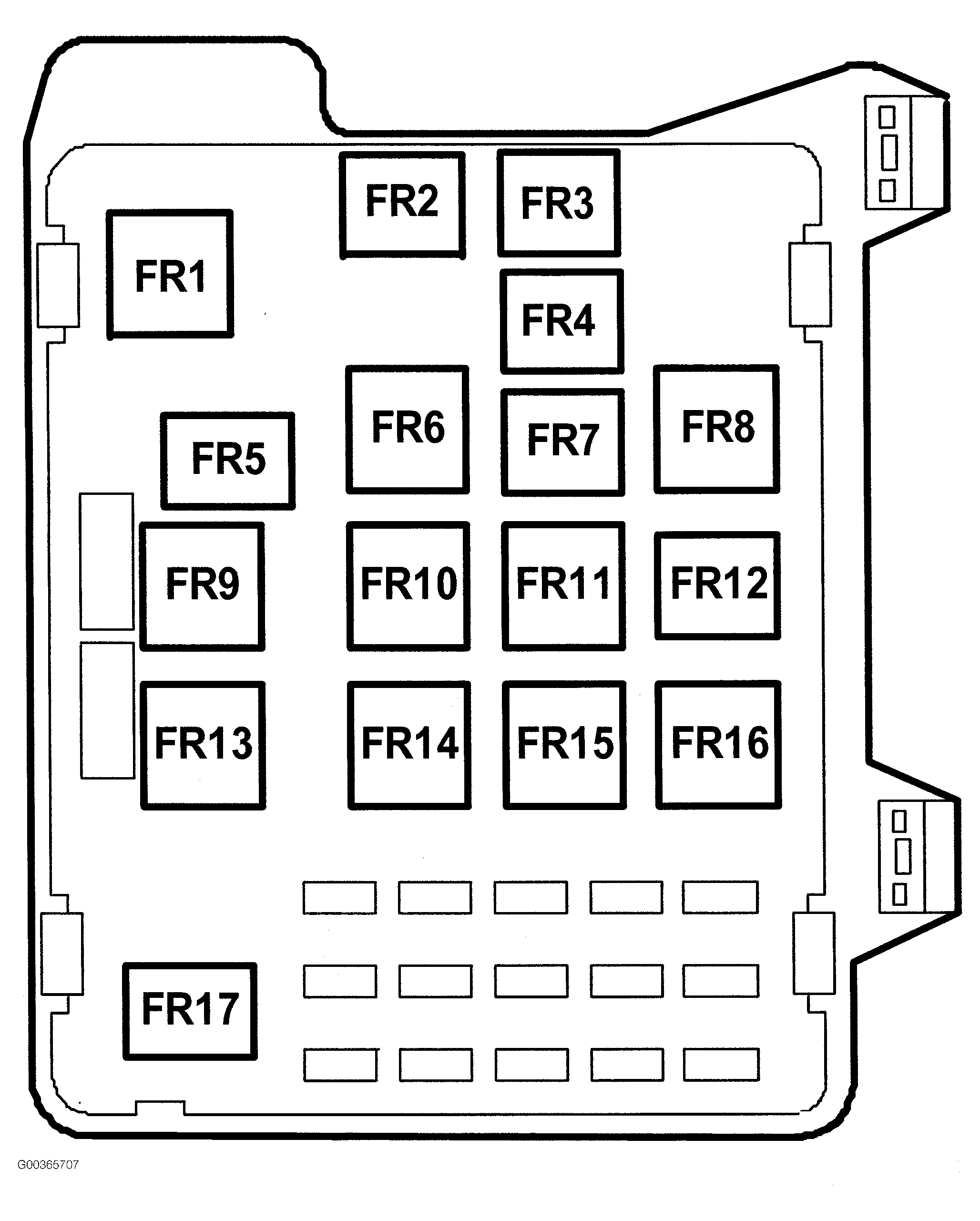

Fig 3: Dashboard Main Relay Box

Courtesy of SAAB-SCANIA OF AMERICA, INC.
