Control module inputs

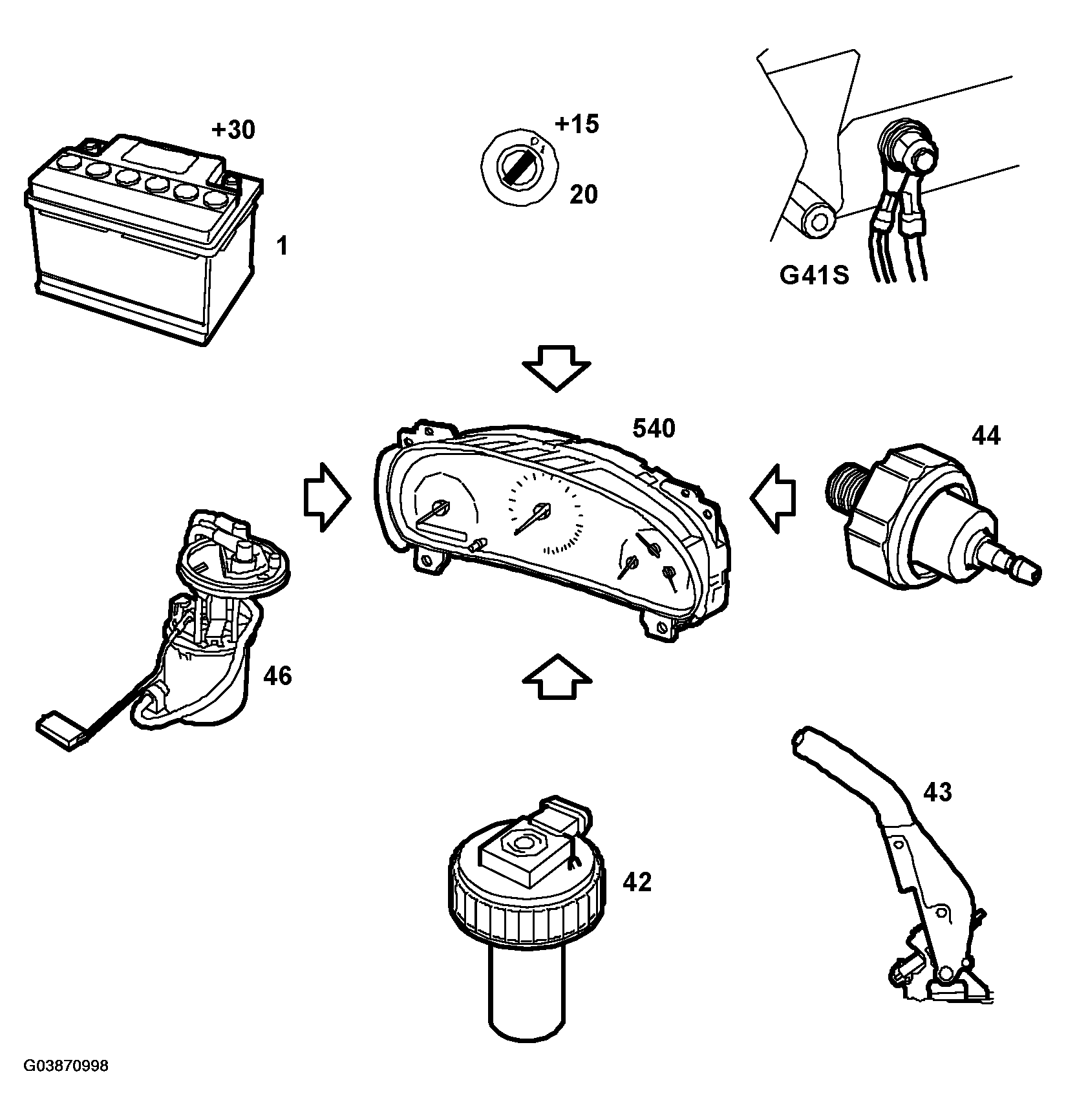

Fig 1: Control Module Inputs Communication Diagram (1 Of 2)

Courtesy of SAAB-SCANIA OF AMERICA, INC.

Xenon lamp system indicator from AHL control module (664 FL/FR)
Warning lamp, charging (2)
Lights-on indicator lamp from lights switch (10)
Main beam indicator lamp from main headlamp relay (8a)

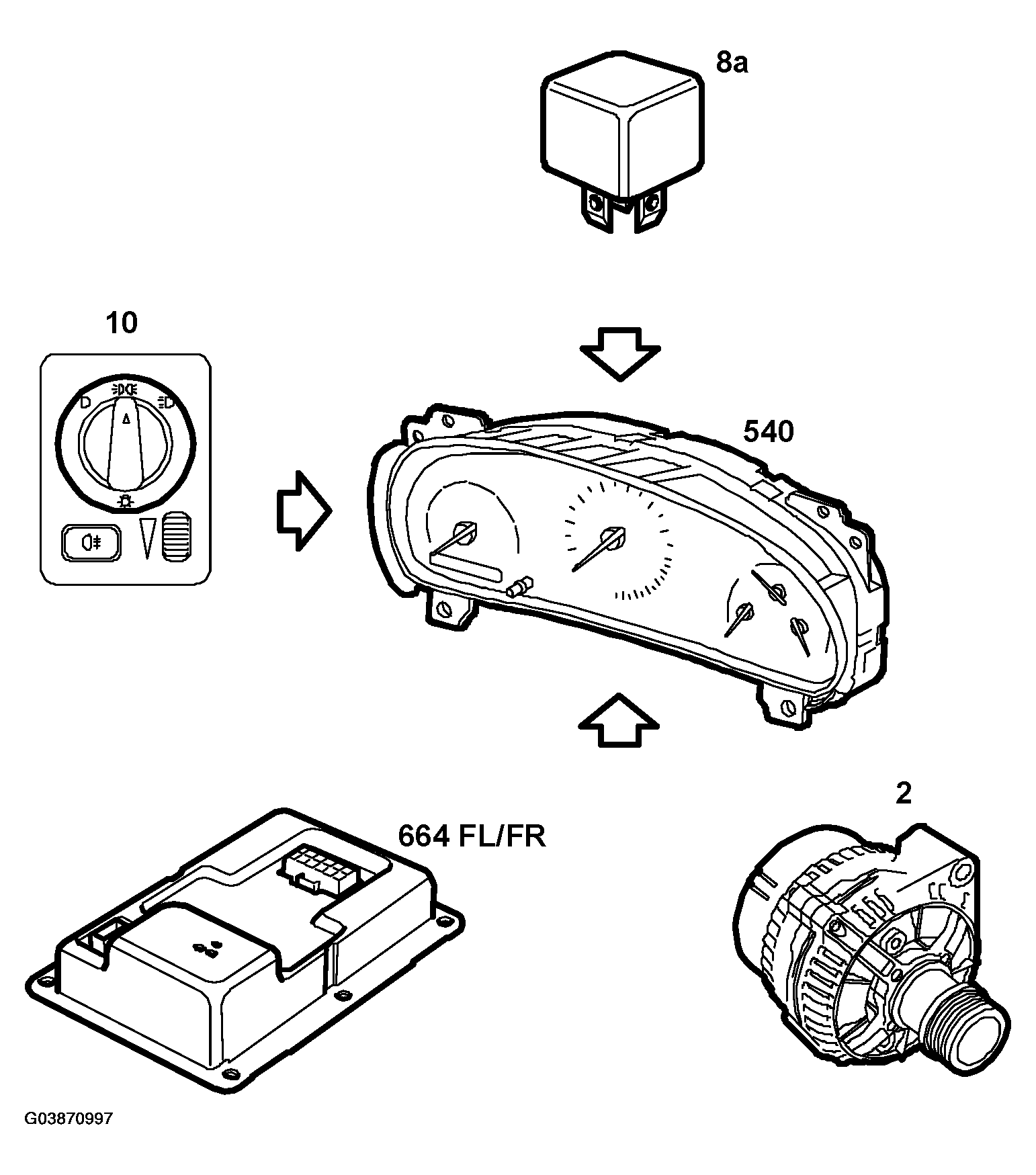

Fig 2: Control Module Inputs Communication Diagram (2 Of 2)
Courtesy of SAAB-SCANIA OF AMERICA, INC.
Battery Voltage (+30) (1)
Battery Voltage (+15) (20)
Ground connection (G41S)
Oil pressure warning lamp from oil pressure sensor (44)
Brake fluid level warning lamp from brake fluid reservoir (42)
Warning lamp, handbrake (43)
Fuel level from fuel level sensor (46)
Low fuel level indicator lamp (46)
