Technical Description: Ground: Notes

Ground

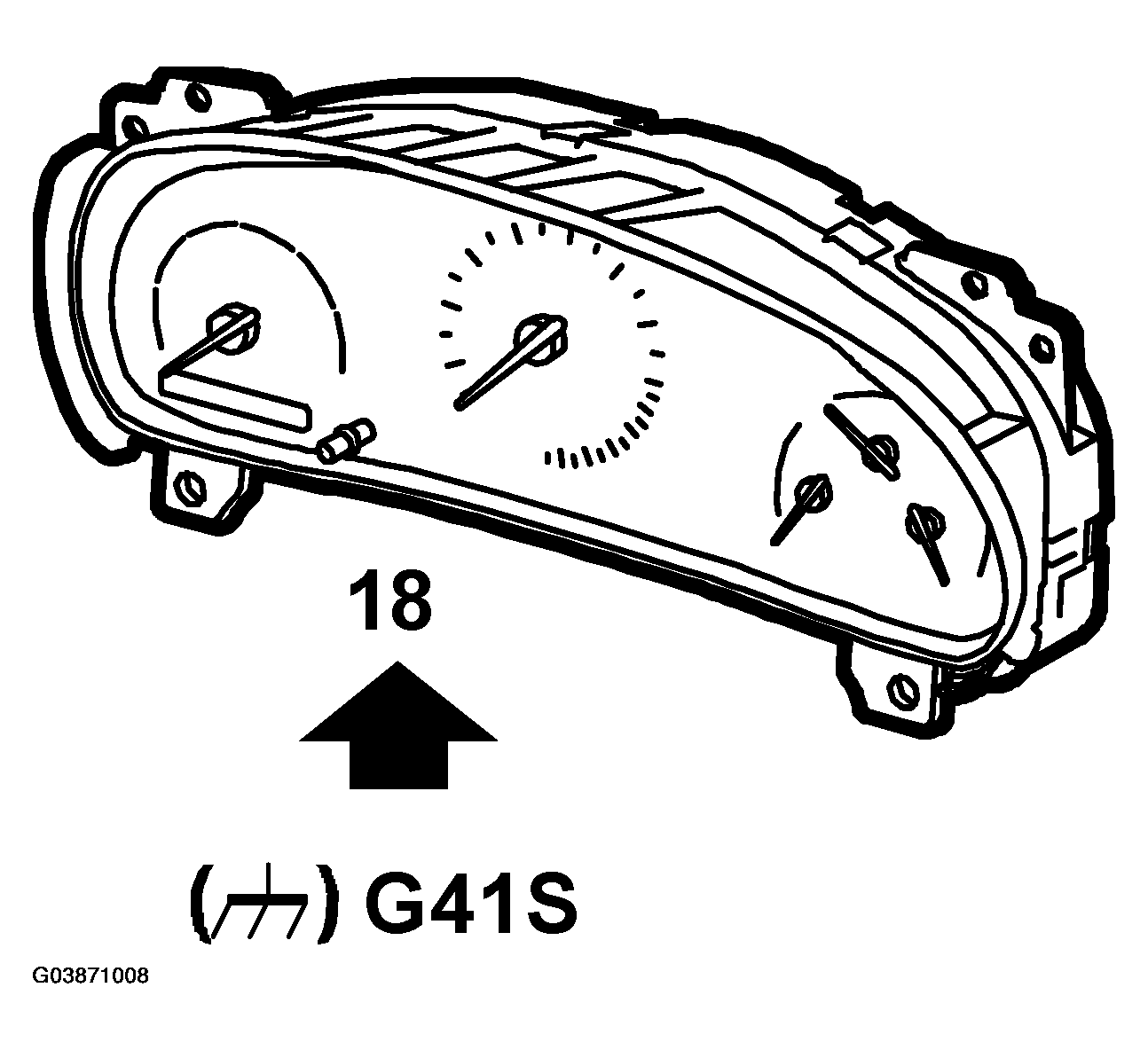

Fig 1: Grounding Main Instrument Unit
G03871008Courtesy of SAAB-SCANIA OF AMERICA, INC.

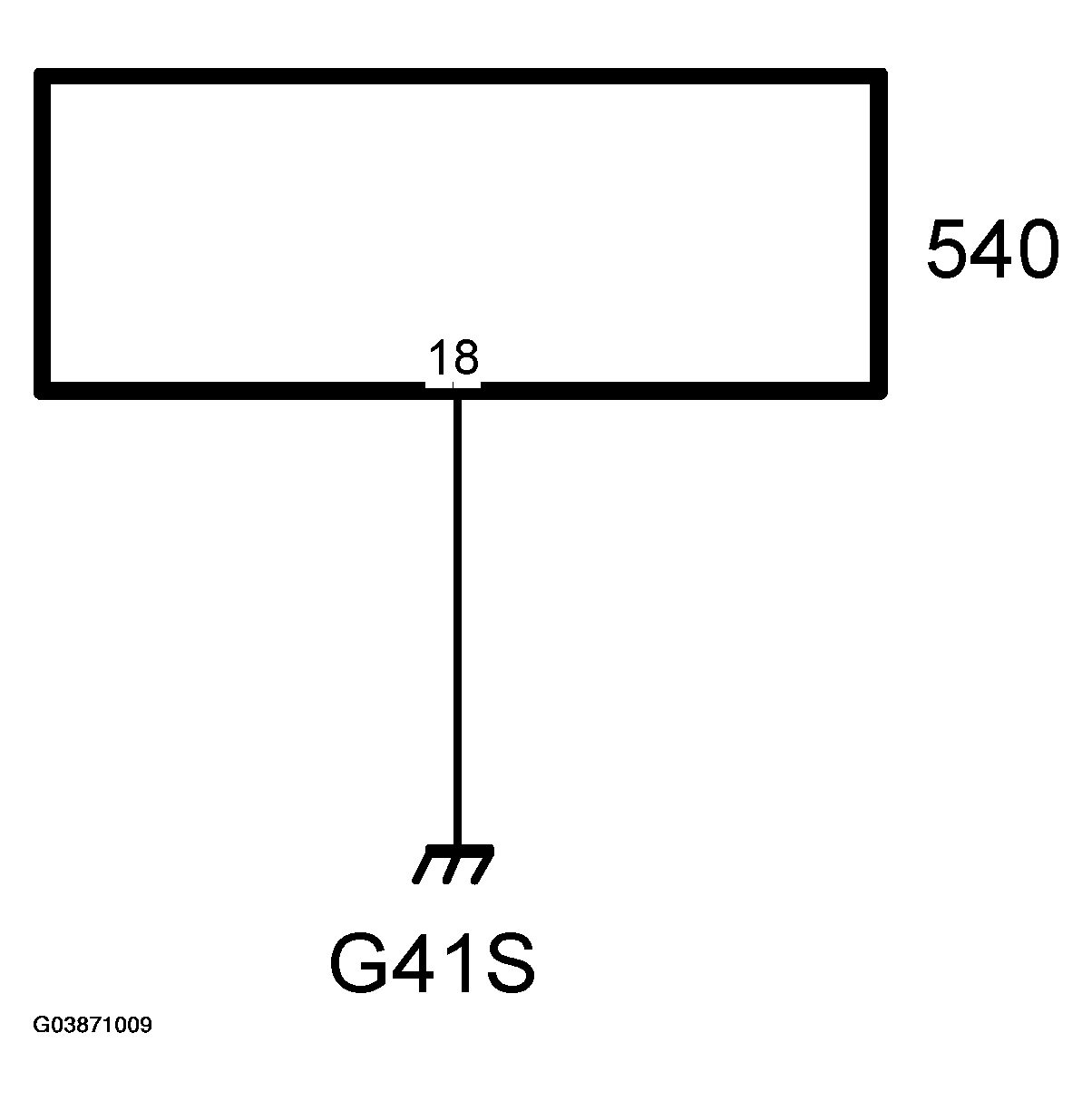

Fig 2: Main Instrument Unit Ground Circuit
G03871009Courtesy of SAAB-SCANIA OF AMERICA, INC.

The main instrument unit is grounded through pin 18 to ground point G41S.
