Dice Control Module (628)

LHD

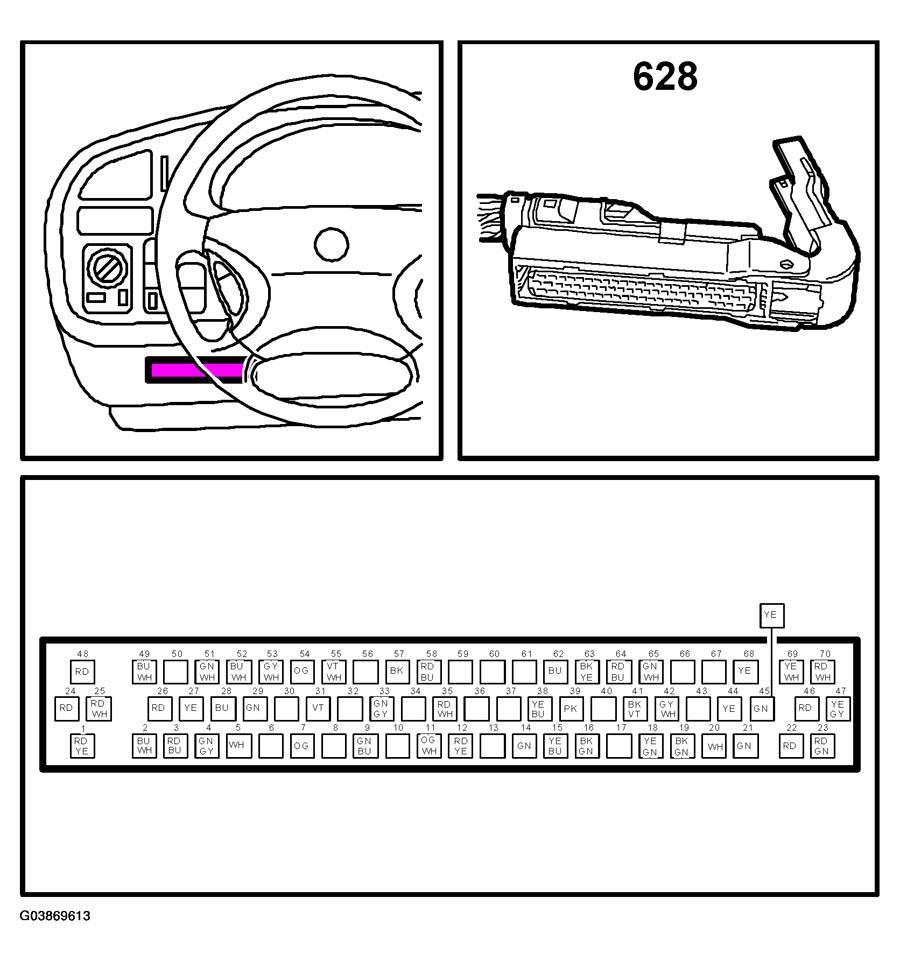

Fig 1: Identifying DICE Control Module (628) Connector And Location - LHD
G03869613Courtesy of SAAB-SCANIA OF AMERICA, INC.

RHD

Fig 2: Identifying DICE Control Module (628) Connector And Location - RHD
G03869614Courtesy of SAAB-SCANIA OF AMERICA, INC.
