Interior Lighting

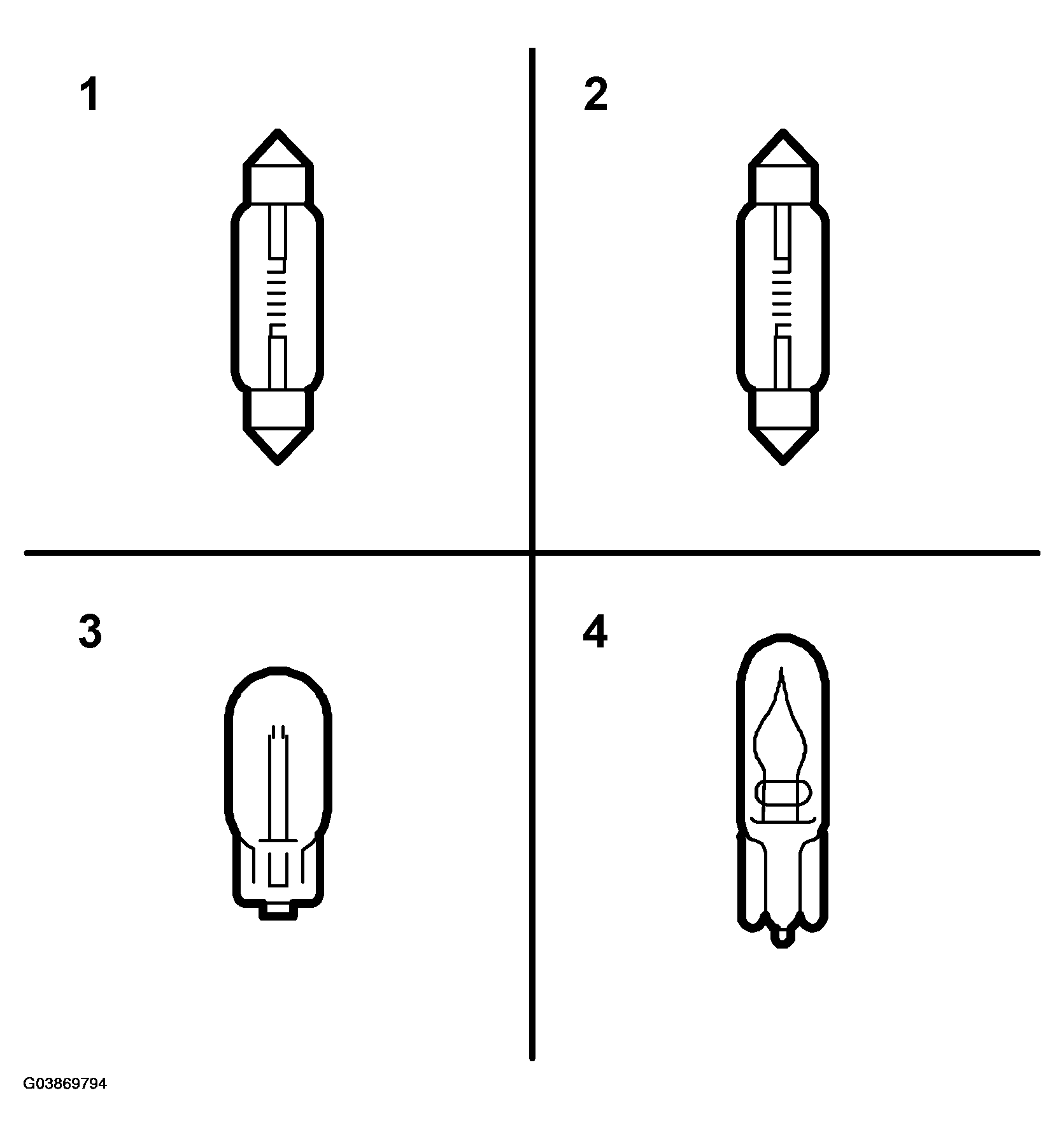

INTERIOR LIGHTING SPECIFICATIONS
| Application | Rating (W) | Fitting | Position |
|---|---|---|---|
| Glove box | 10 | SV 8.5 -8 | 1 |
| Roof lighting Luggage compartment illumination 4D Front floor lighting Courtesy lights |
10 | SV 8.5 -8 | 2 |
| Luggage compartment illumination 5D | 5 | W2.4x9.5d | 3 |
| Lighting for switch/ashtray Seat-belt warning lamp |
1.2 | W2x4.6d | 4 |

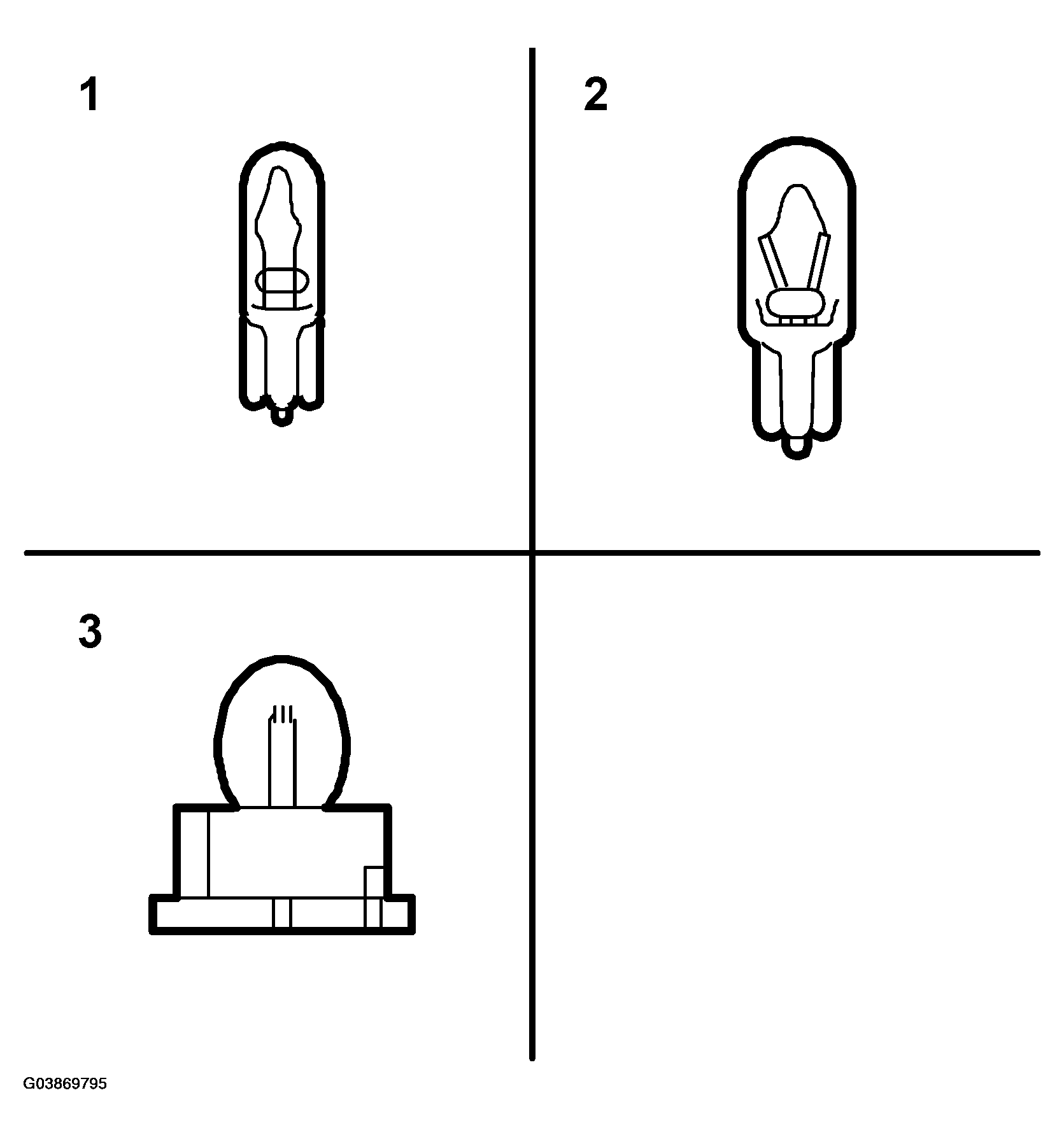

INTERIOR LIGHTING SPECIFICATIONS
| Application | Rating (W) | Fitting | Position |
|---|---|---|---|
| Front spotlight (halogen) | 5 | W2.1x9.5d | 1 |
| Rear spotlight | 4 | BA9s | 2 |
| Sun visor lighting | 1.2 | 3 | |
| Lighting for heating and ventilation controls ACC | 2,0 | W2x4.6d W2.1x9.5d |
3 |
