Main Components, LHD

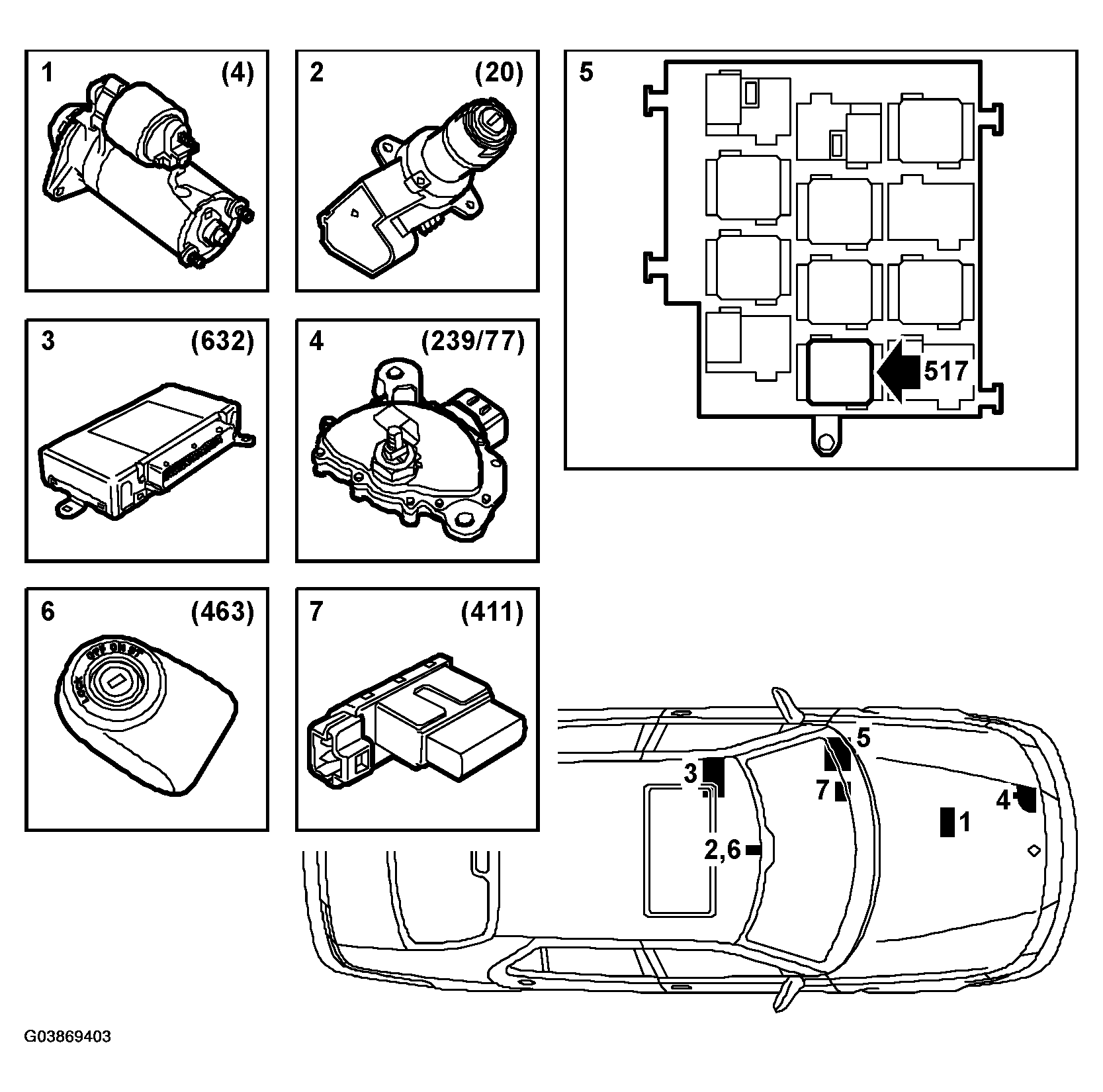

Fig 1: Identifying Starting System Main components And Location - LHD
G03869403Courtesy of SAAB-SCANIA OF AMERICA, INC.
  1. Starter motor (4)
  2. Ignition switch (20)
  3. TWICE control module (632)
  4. Gear selector, automatic (239/77)
  5. Starting relay (517)
  6. Immobilizer (463)
  7. Starting interlock contacts, clutch (411)
