Control module ground

The control module is grounded via pin 4 to grounding point G2.

The pump motor is grounded through pin 1 to grounding points G30 and G40 (G42 RHD).

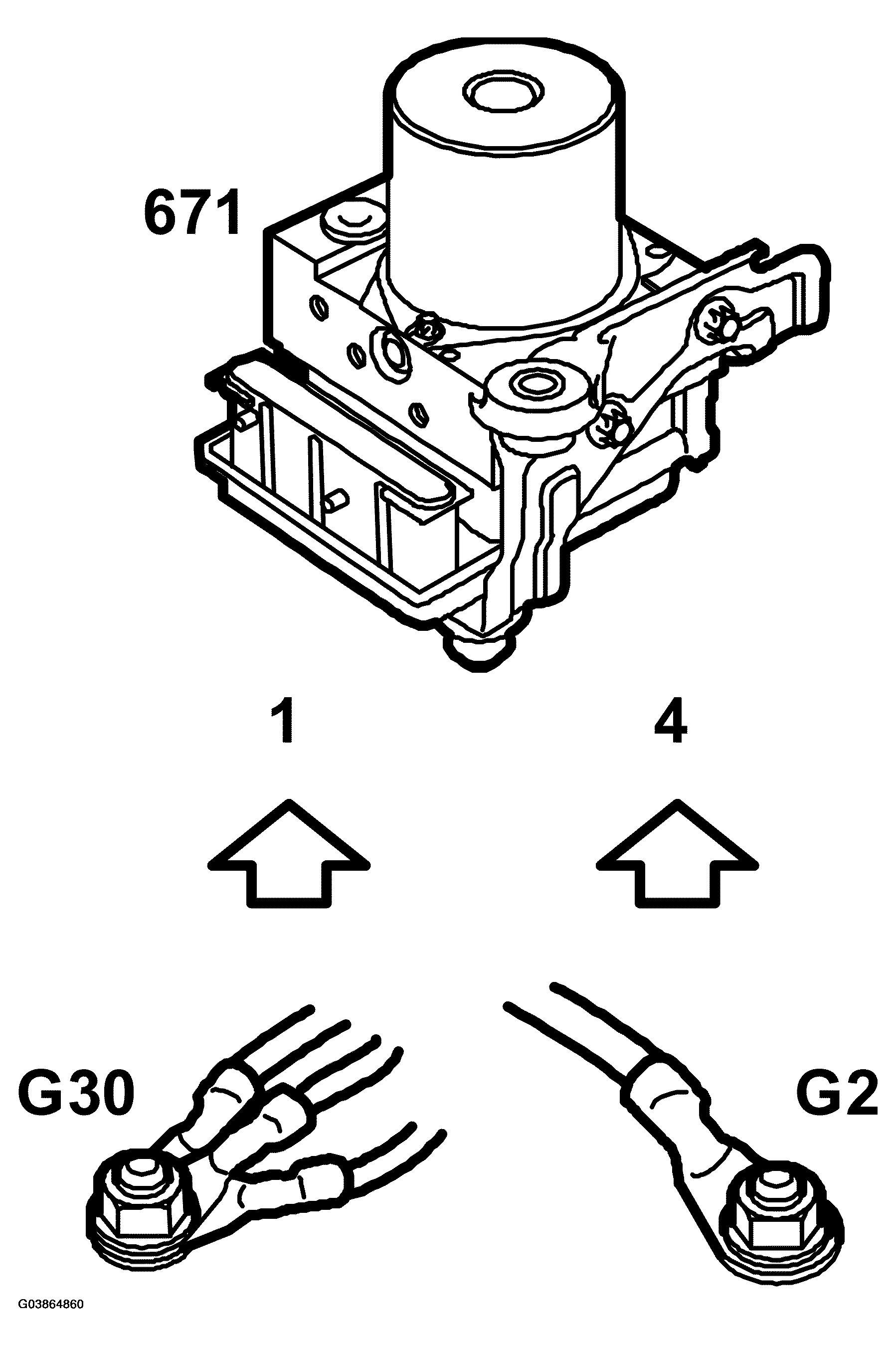

Fig 1: Identifying Control Module Ground

Courtesy of SAAB-SCANIA OF AMERICA, INC.

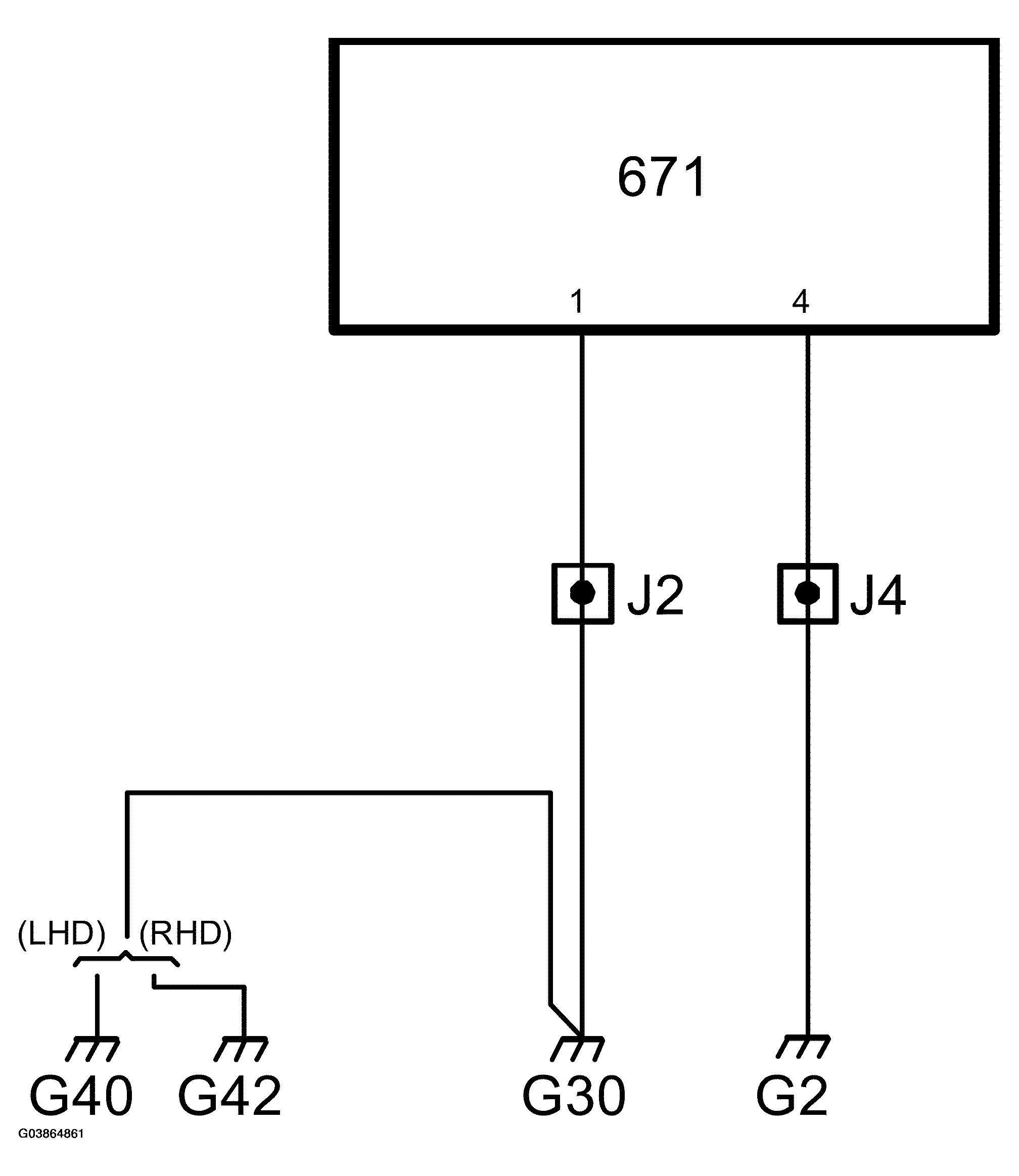

Fig 2: Control Module Ground Circuit Diagram

Courtesy of SAAB-SCANIA OF AMERICA, INC.
