System Overview

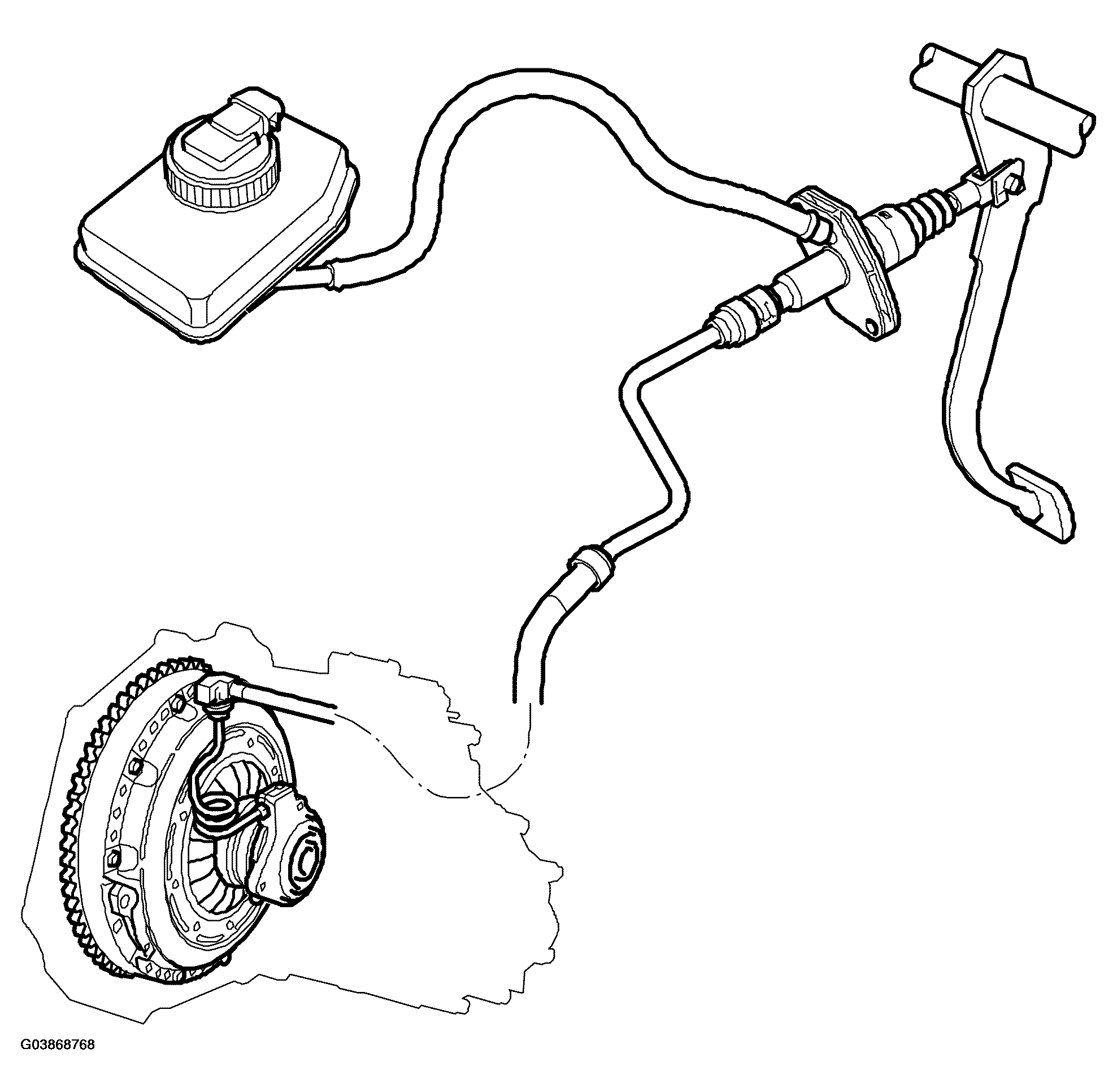

Fig 1: Identifying Hydraulic Clutch Overview
G03868768Courtesy of SAAB-SCANIA OF AMERICA, INC.

Power is transmitted from the engine to the gearbox via a clutch. This clutch consists of a dry plate and a pressure plate of diaphragm spring type. Clutch operation is hydraulic.
