Installation Procedure

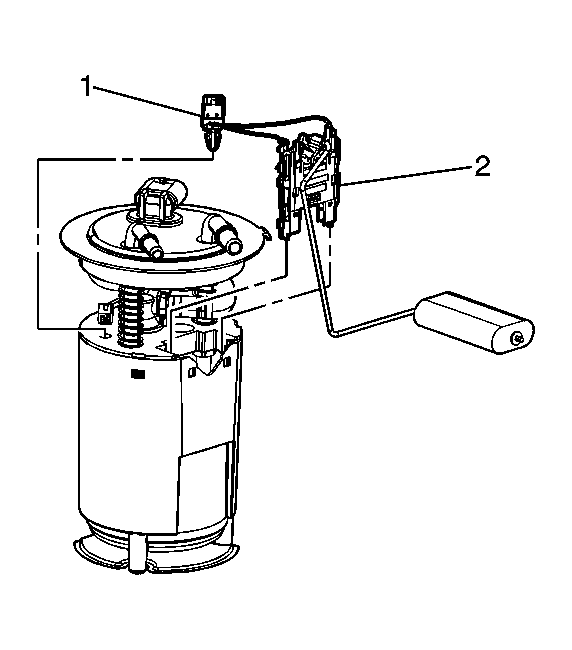

    Fig 1: Identifying Fuel Level Sensor & Electrical Connector
    GM1528402Courtesy of GENERAL MOTORS CORP.
  1. Install the fuel level sensor (2) and electrical connector (1) to the fuel sender assembly.

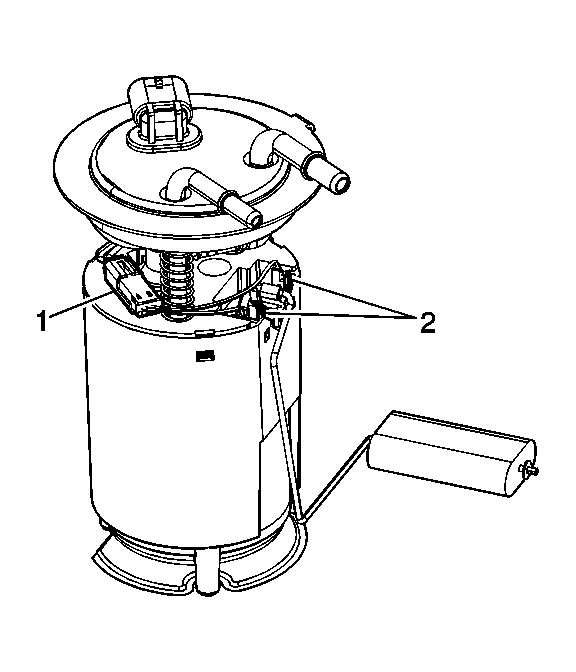

    2. Fig 2: View Of Fuel Level Sensor
    GM1528400Courtesy of GENERAL MOTORS CORP.
  2. Connect the fuel level sensor electrical connector (1).
  3. Ensure the fuel level sensor retaining tabs (2) are fully engaged.
  4. Install the fuel sender assembly. Refer to Fuel Sender Assembly Replacement .
