Installation Procedure

  1. Align and install the locating tabs on the seat control module with the seat pan.
  2. Connect the electrical connectors to the seat control module as necessary.

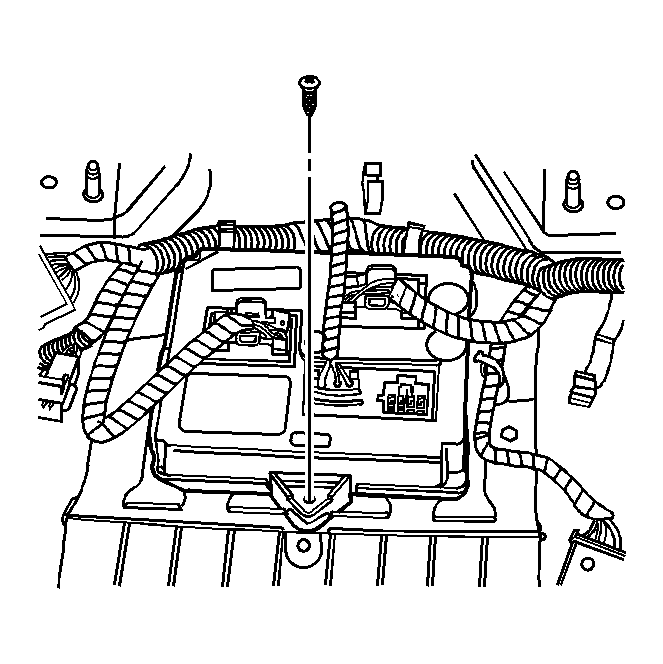

    3. Fig 1: Removing/Installing Seat Module Retaining Screw
    GM752957Courtesy of GENERAL MOTORS CORP.
    NOTE: Refer to Fastener Notice in Cautions and Notices.
  3. Install the screw that retains the seat control module to the seat pan.

    Tighten:  Tighten the screw to 3 N.m (26 lb in).

  4. Install the seat pan to the seat assembly.

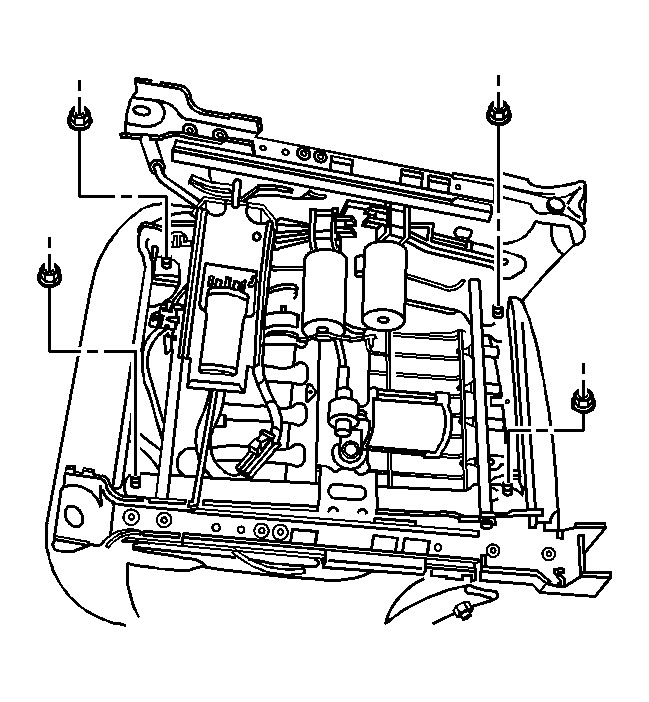

    5. Fig 2: View Of Underside Of Seat Adjuster Frame & Mounting Nuts
    GM752864Courtesy of GENERAL MOTORS CORP.
  5. Install the nuts which retain the seat pan to the seat assembly.

    Tighten:  Tighten the nuts to 25 N.m (18 lb ft).

  6. Install the 3 seat switch bezel screws. Refer to Seat Switch Bezel Replacement .
  7. Calibrate the seat. Refer to Memory Seat Calibration Procedure .
