Installation Procedure

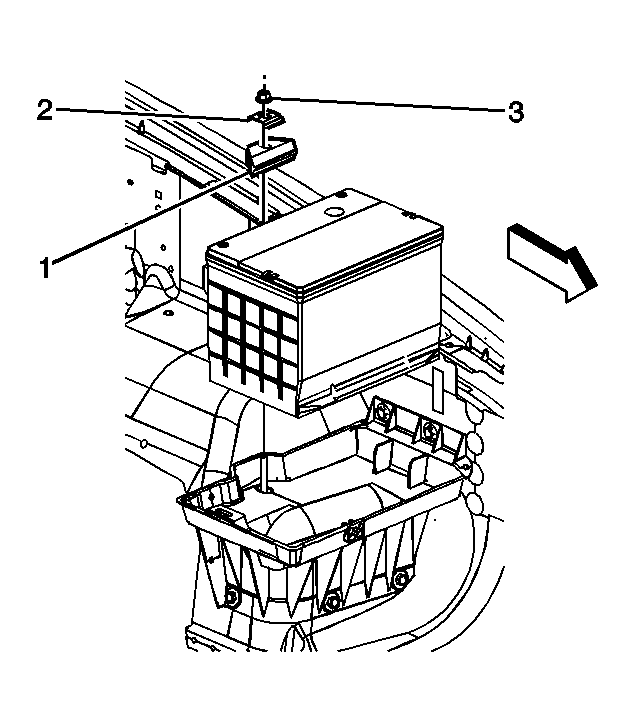

    Fig 1: View Of Battery Hold Down Nut, Washer & Retainer
    GM755443Courtesy of GENERAL MOTORS CORP.
    NOTE: Refer to Fastener Notice in Cautions and Notices.
  1. Install the battery.
  2. Install the battery hold down retainer (1), nut (3), and washer.

    Tighten:  Tighten the nut to 15 N.m (11 lb ft).

    3. Fig 2: View Of Battery Cover
    GM755437Courtesy of GENERAL MOTORS CORP.
  3. Install the battery cover.

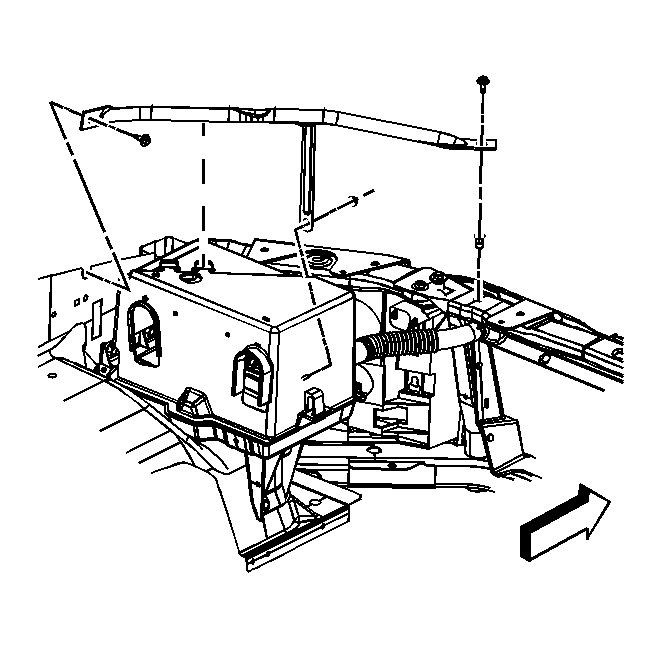

    4. Fig 3: Radiator Support Diagonal Brace
    GM750114Courtesy of GENERAL MOTORS CORP.
  4. Install the battery tray brace bolts/nut.

    Tighten:  Tighten the bolts/nut to 10 N.m (89 lb in).

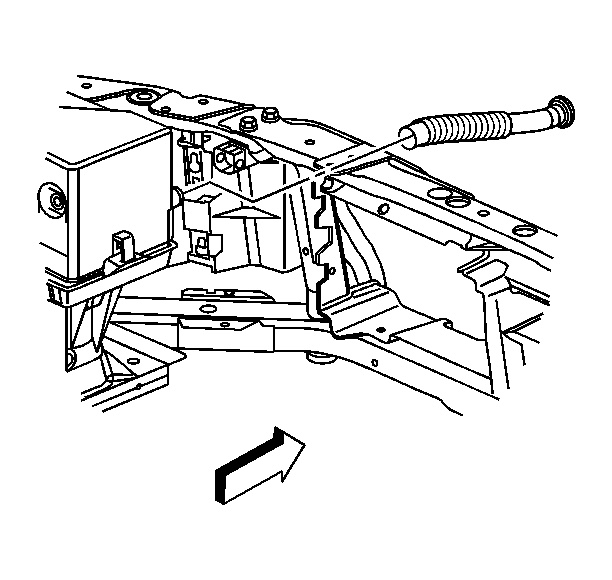

    5. Fig 4: View Of Battery Air Duct
    GM899620Courtesy of GENERAL MOTORS CORP.
  5. Install the battery air duct to the battery cover.

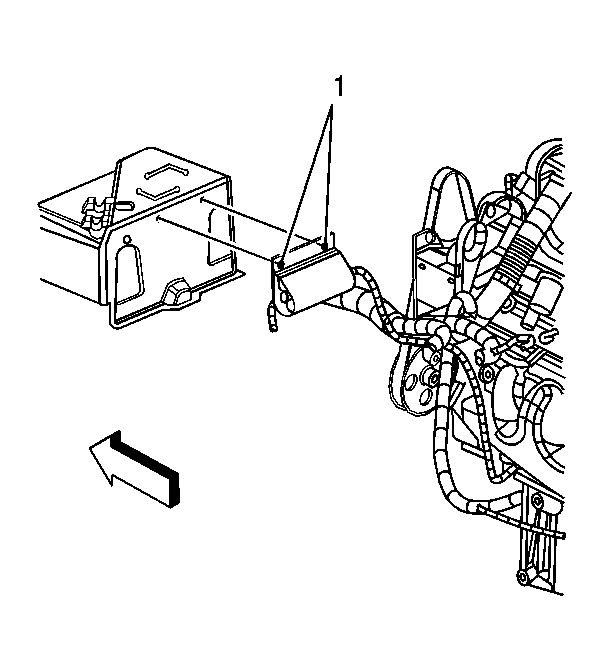

    6. Fig 5: View Of Coolant Heater Cord Retainers
    GM898846Courtesy of GENERAL MOTORS CORP.
  6. Install the coolant heater cord retainers (1) to the battery cover, if equipped.

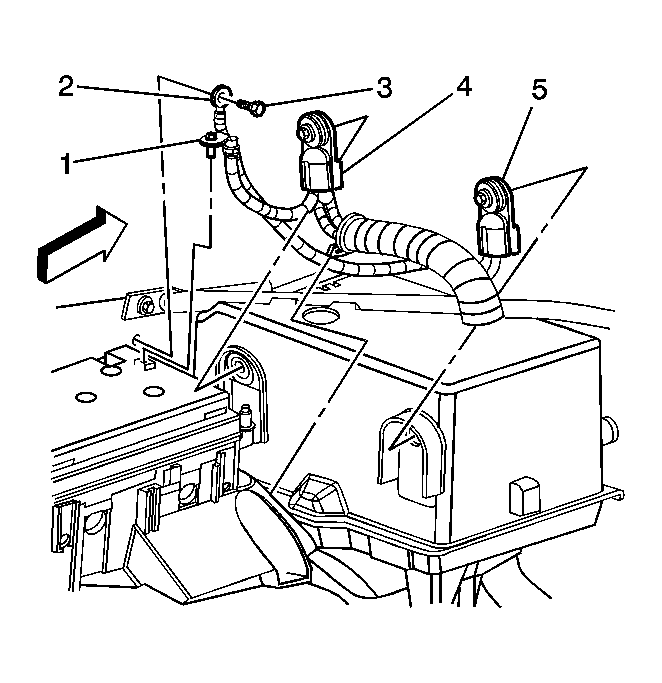

    7. Fig 6: Identifying Battery Cable Components
    GM899613Courtesy of GENERAL MOTORS CORP.
  7. Position the positive battery cable (4) to the battery.
  8. Tighten the positive battery cable bolt.

    Tighten:  Tighten the bolt to 15 N.m (11 lb ft).

  9. Connect the negative battery cable (5). Refer to Battery Negative Cable Disconnect/Connect Procedure .
