Crimp J40, engine harness, Trionic: Notes

Location:  Approximately 190 mm from crankshaft position sensor branching point towards the engine control module

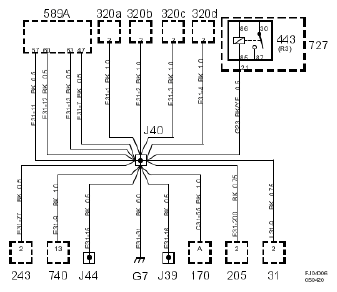

Fig 1: Engine Harness (Crimp J40) Trionic - Circuit Diagram
G05170491Courtesy of SAAB-SCANIA OF AMERICA, INC.
