Crimp J46, engine harness, Trionic: Notes

Location:  Approx. 130 mm from connector H24-2

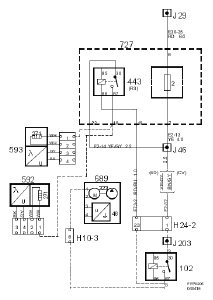

Fig 1: Engine Harness (Crimp J46) Trionic - Circuit Diagram
G05170496Courtesy of SAAB-SCANIA OF AMERICA, INC.
