Control Units
CONTROL UNITS LOCATION
| Component | Location |
|---|---|
| ACC Control Module | Center of dash. See Figure. |

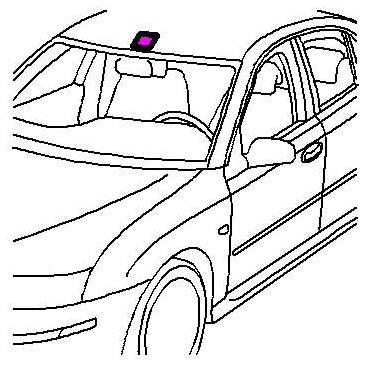

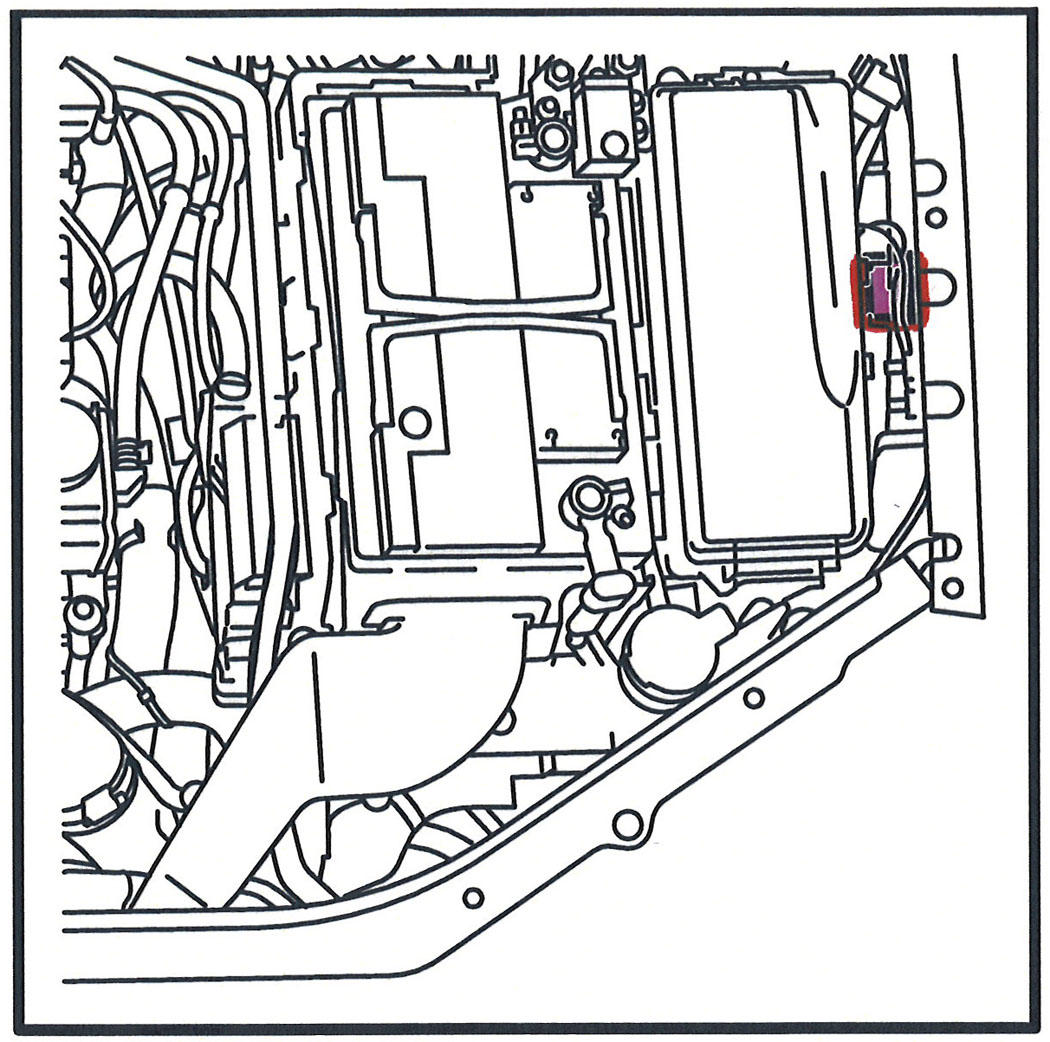

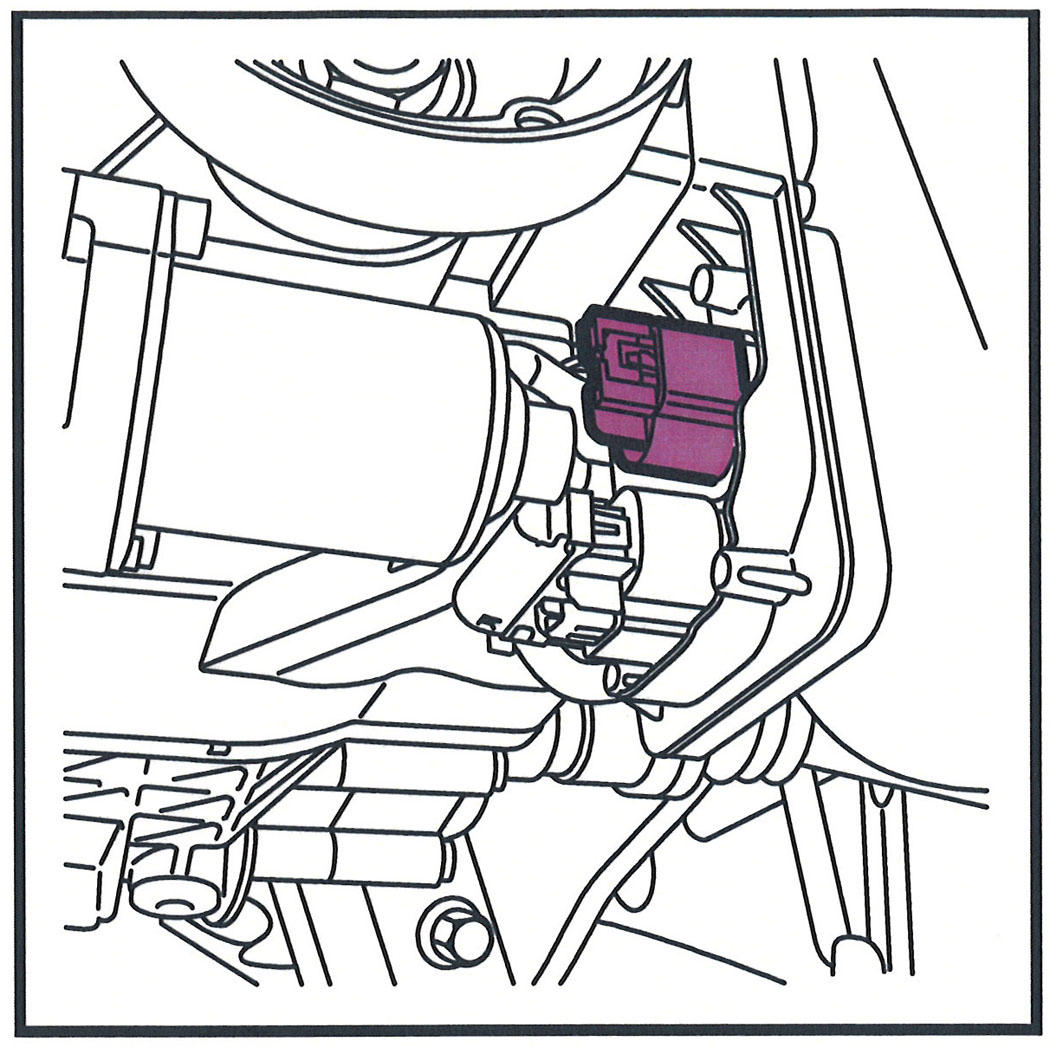

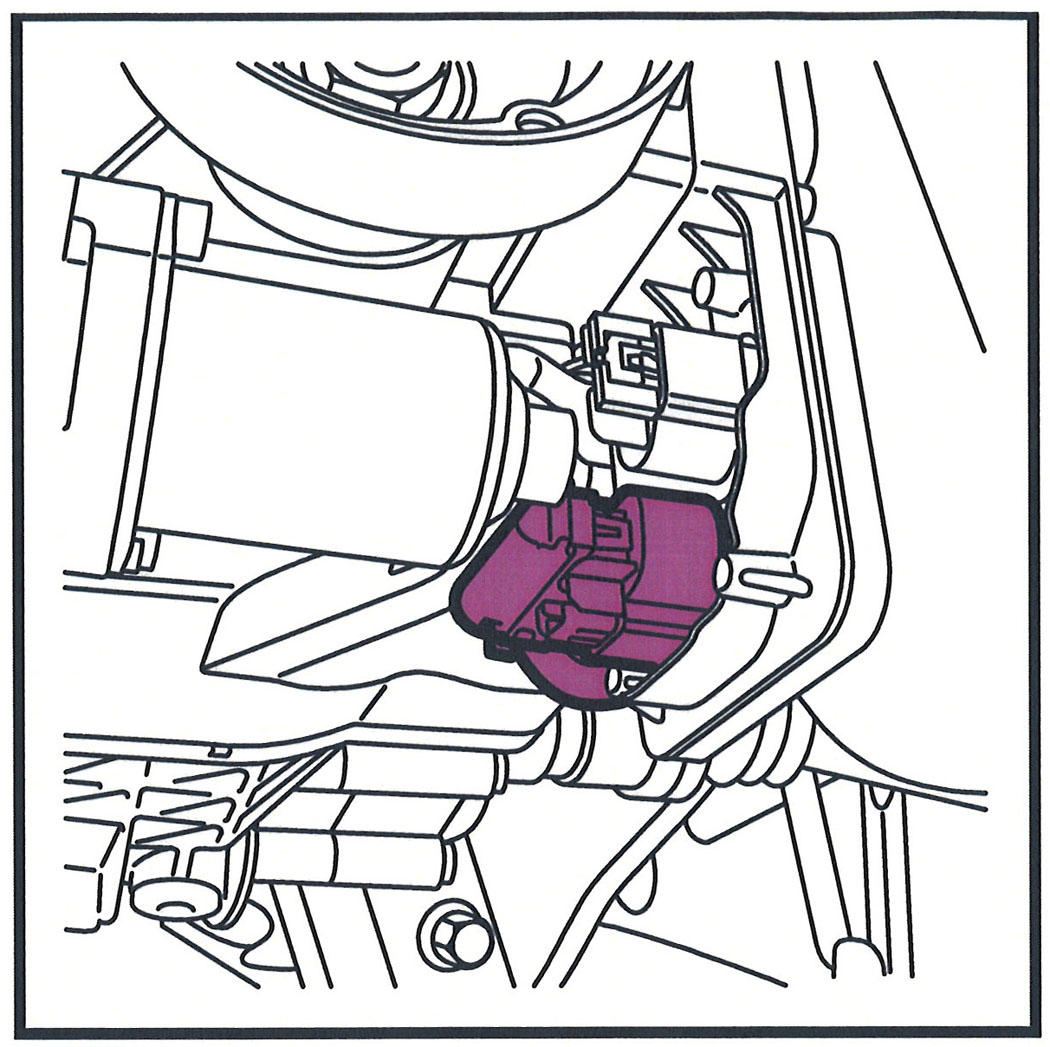

| ADM Control Module | In overhead console. See Figure. |
| AFL Control Module | Left side of engine compartment. See Figure. |
| AHL (Automatic Headlight Leveling Control Module) | Behind left headlight assembly. See Figure. |
| Air Bag Control Module | Under floor console, behind gear selector. See Figure. |
| All-Wheel Drive Control Module (K4) | On differential clutch. See Figure. |
| All-Wheel Drive Control Module (K12) | On differential clutch. See Figure. |
| Body Control Module | Left end of dash. See Figure. |
| Door Control Module (Left Front) | In driver's door. See Figure. |
| Door Control Module (Left Rear Door) | In left rear door. See Figure. |
| Door Control Module (Right Front) | In right front door. See Figure. |
| Door Control Module (Right Rear Door) | In right rear door. See Figure. |
| Electrically Adjustable Driver's Seat Control Module (W/Memory) | Under driver's seat cushion. |
| Electrically Adjustable Driver's Seat With Memory Control Module | Base of seat assembly. See Figure. |
| Engine Control Module (Motronic) | Rear of engine compartment. See Figure. |
| ESP Control Module | Integral to hydraulic unit, at left rear corner of engine compartment. See Figure. |
| Fuel Pump Control Module (Convertible) | Under rear seat. See Figure. |
| Fuel Pump Control Module (Except Convertible) | Under right seat. See Figure. |
| Gear Selector Control Module | Under gear selector. See Figure. |
| Headlamp Control Module (Left/Right) | Under respective headlight assembly. |
| Ignition Switch Module | In floor console. See Figure. |

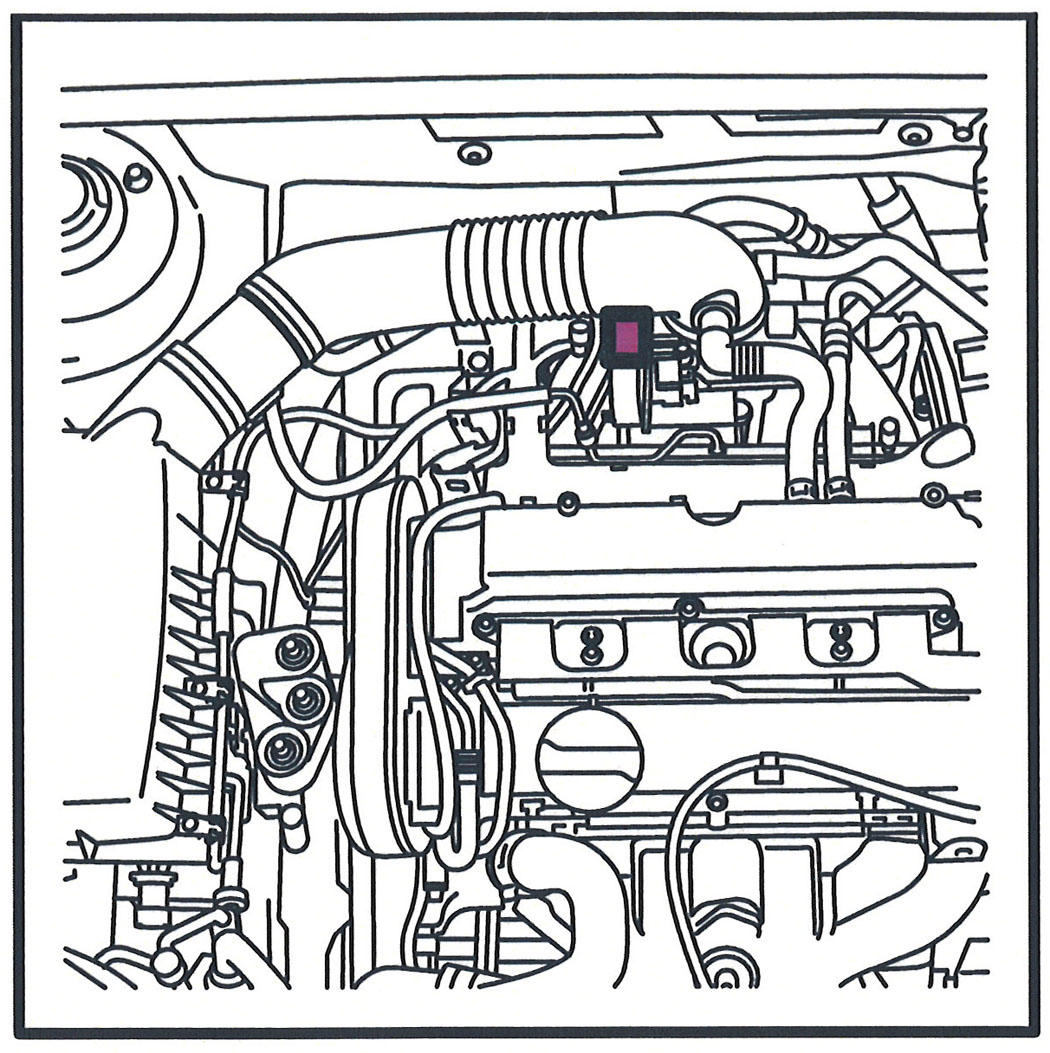

| Ionization Detection Module | Left rear of engine compartment. See Figure. |
| OnStar Control Module (Except Wagon) | Under parcel shelf. See Figure. |
| OnStar Control Module (Wagon) | Under luggage compartment floor in front of subwoofer. See Figure. |
| Power Steering System Unit | Right rear of engine compartment. See Figure. |
| PPS Control Module | Under driver's seat cushion. See Figure. |
| Radiator Fan Relay Unit (2.0L) | Front of engine compartment. See Figure. |
| Seat Relay Unit | In driver's seat. See Figure. |
| SPA Control Module | Left rear of luggage compartment. See Figure. |

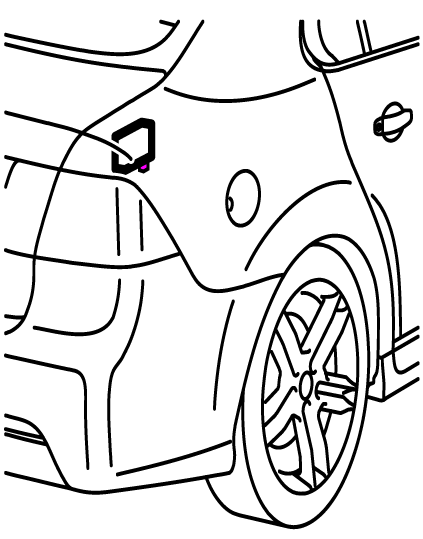

| STC Soft Top Control Module | On right rear wheel housing. |
| Sunroof Control Module | Front of sunroof assembly. See Figure. |
| TCS Control Module | Integrated in hydraulic unit. See Figure. |
| Telematics Unit (Convertible) | At front edge of boot. |
| Tire Pressure Monitoring Module (Convertible) | Right rear of luggage compartment. |
| Tire Pressure Monitoring Module (Except Convertible) | Right side of luggage compartment. See Figure. |
| Transmission Control Module (A/T 5 Speed) | On bracket between battery & engine. See Figure. |

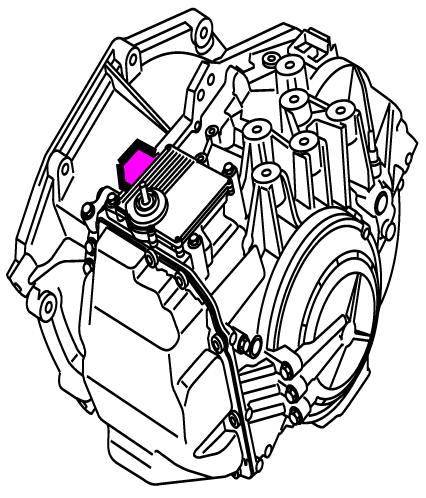

| Transmission Control Module (A/T 6 Speed) | Top of transmission. See Figure. |
| Trionic Control Module | Right front of engine compartment. See Figure. |
| Trionic Engine Control Module | Front of engine. |
| Ventilation Fan Control Unit (Auto) | On fan motor housing. |
| Ventilation Fan Control Unit (Manual) | On underside of fan housing. |
