Oil Pan Rear

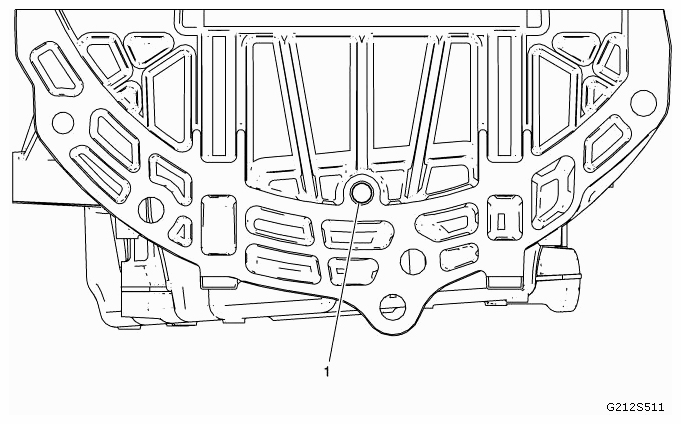

Fig 1: Oil Pan Rear Components Location
G09438251Courtesy of SAAB-SCANIA OF AMERICA, INC.
THREAD REPAIR SPECIFICATIONS

Hole Location Thread Size Drill Counterbore Tool Stop Collar Tap Driver Insert Drill Depth (Maximum)
    J 42385- MM (IN)
1 M10 x 1.5 211 212 N/A 213 214 420 33.5 1.3189
