Oil Pan Top

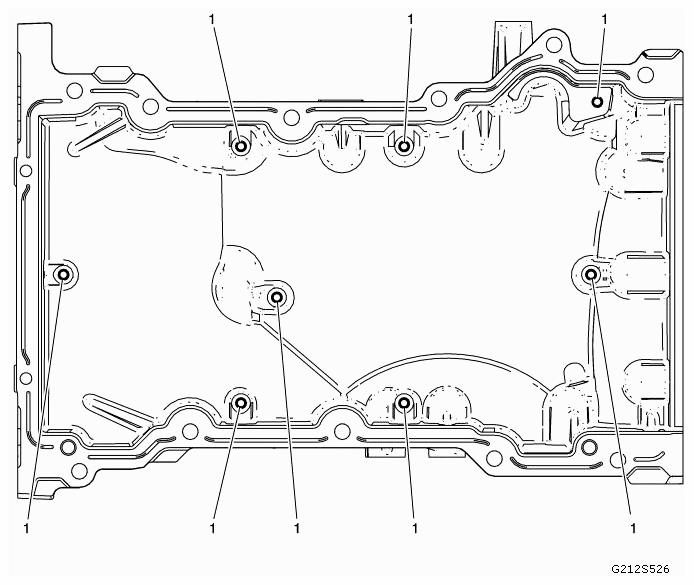

Fig 1: Oil Pan Top Components Location
G09438252Courtesy of SAAB-SCANIA OF AMERICA, INC.
THREAD REPAIR SPECIFICATIONS

Hole Location Thread Size Drill Counterbore Tool Stop Collar Tap Driver Insert Drill Depth (Maximum)
    J 42385- MM (IN)
1 M6 x 1.0 701 N/A N/A 203 204 205 28.0 1.1024
