Installation Procedure

Clean the sealing surfaces.
Clean the threads (arrows).

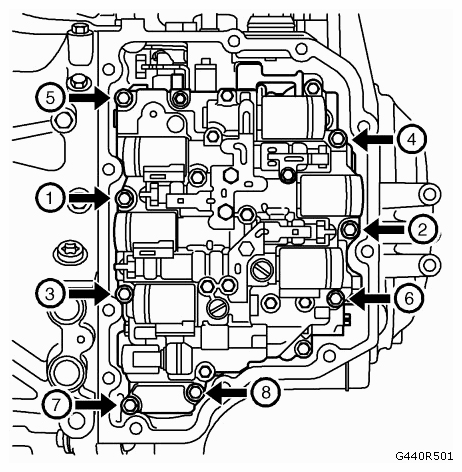

Fig 1: Locating Valve Housing Fasteners Tightening Sequence
Courtesy of SAAB-SCANIA OF AMERICA, INC.
Install the valve housing.

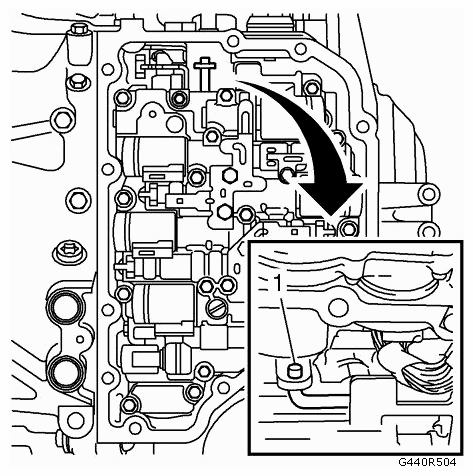

Fig 2: Identifying Clutch Rod
Courtesy of SAAB-SCANIA OF AMERICA, INC.
1. 3.1. Hook in the clutch rod (1).
2. 3.2. Install 6 fasteners.
Raise and support the vehicle. Refer to LIFTING AND JACKING THE VEHICLE .
Install the cover.

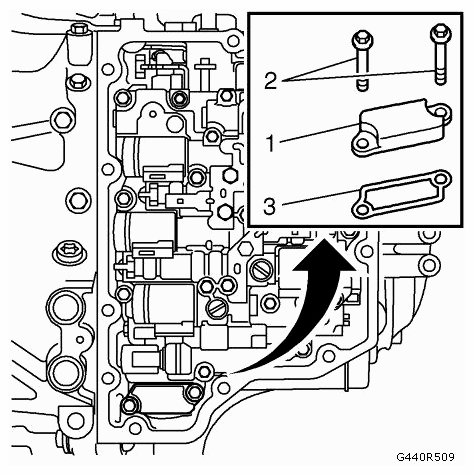

Fig 3: Identifying Gasket, Cover And Screws
Courtesy of SAAB-SCANIA OF AMERICA, INC.
1. 5.1. Install a new gasket (3).
2. 5.2. Install the cover (1).
3. 5.3. Install two screws (2).
Finish fitting the valve housing.

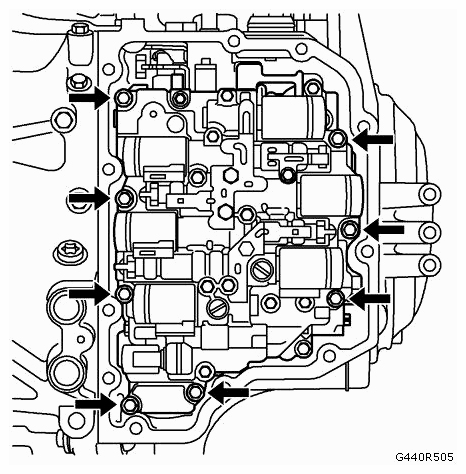

Fig 4: Identifying Control Valve Body Tightening Sequence
Courtesy of SAAB-SCANIA OF AMERICA, INC.
Refer to FASTENER CAUTION .
Tighten the 8 fasteners (arrows) in the specified order.

Tighten

10 Nm (88 lb in)
Install the temperature sensor (3).

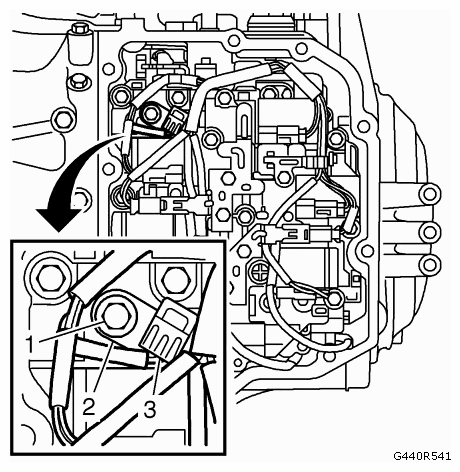

Fig 5: Identifying Attaching Plate, Temperature Sensor And Screw
Courtesy of SAAB-SCANIA OF AMERICA, INC.
1. 8.1. Moisten the temperature sensor O-ring with gearbox oil.
2. 8.2. Install the attaching plate (2).
3. 8.3. Tighten the fastener (1).
Tighten

10 Nm (88 lb in)
Plug in the engine speed sensor connectors.
Attach the connectors to the two mountings (4).

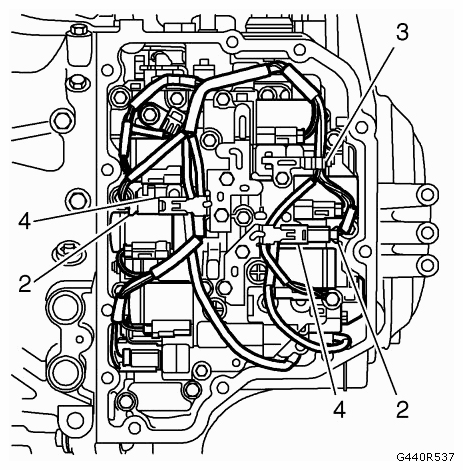

Fig 6: Identifying Solenoid Valves, Engine Speed Sensors, Mountings And Retaining Clip
Courtesy of SAAB-SCANIA OF AMERICA, INC.
Plug in the connector for the solenoid valves.
1. 10.1. Secure the wiring harness in the 2 retaining clips (3).
2. 10.2. Plug in the 2 connectors for the engine speed sensors (2).
3. 10.3. Plug in the 8 connectors for the solenoid valves (1).

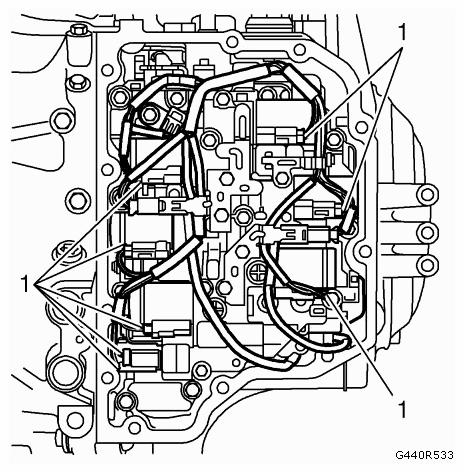

  Fig 7: Identifying Connectors From Solenoid Valves
  Courtesy of SAAB-SCANIA OF AMERICA, INC.
Install control valve body. Refer to CONTROL VALVE BODY COVER REPLACEMENT .
Lower the vehicle.
