Transmission Control Lever Boot Replacement

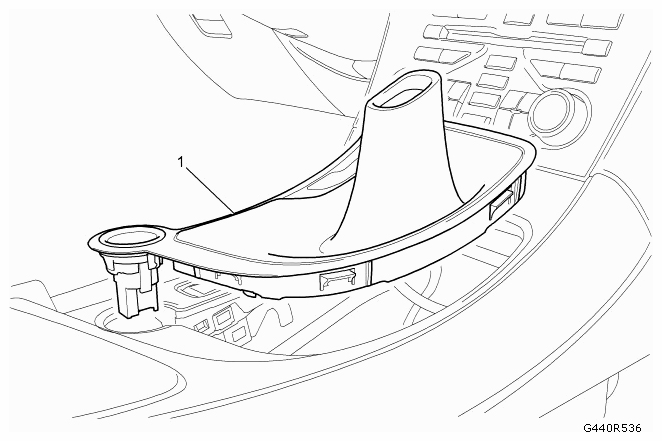

Fig 1: Identifying Transmission Control With Fasteners

Courtesy of SAAB-SCANIA OF AMERICA, INC.

Callout	Component Name
Preliminary Procedure  Remove the lever knob. Refer to TRANSMISSION CONTROL LEVER KNOB REPLACEMENT .
1	Transmission Control Lever Boot Procedure  Lift the lever boot up from the center console, carefully with a suitable tool. Disconnect the electrical connector. Transfer any parts as needed.
