Transfer Case Disassembled View

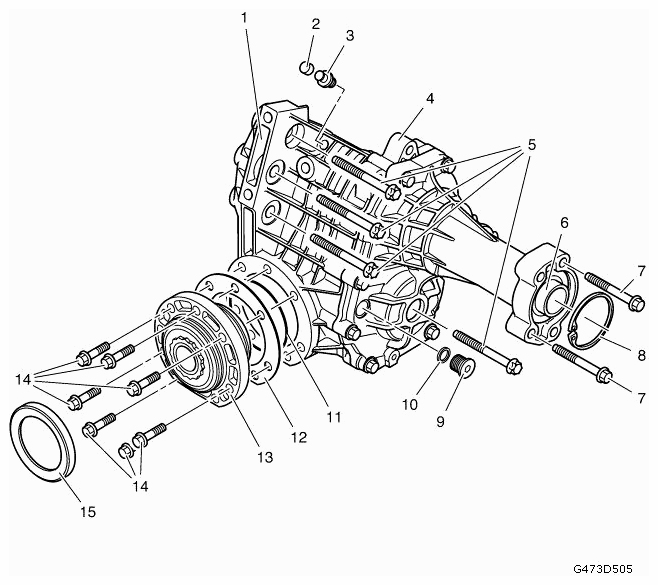

Fig 1: Disassembled View Of Transfer Case
G09437222Courtesy of SAAB-SCANIA OF AMERICA, INC.
  1. Transfer Case - Left Side
  2. Cap Vent
  3. Vent
  4. Transfer Case
  5. Transfer Case Bolts
  6. Intermediate Shaft
  7. Transfer Case Rear Bolts
  8. Transfer Case Intermediate Shaft Retaining Ring
  9. Transfer Case Fill Plug
  10. Transfer Case Fill Plug Seal
  11. Transfer Case Rear Output Shaft Flange Seal
  12. Transfer Case Rear Output Shaft Flange Shim
  13. Transfer Case Rear Output Shaft Flange
  14. Transfer Case Rear Output Shaft Flange Bolt
  15. Transfer Case Rear Output Shaft Seal Dirt Deflector
